• Model NO.：JZJ-9500
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Sea Blue, Red, Orange, White
• Lighting：External Lighting
• Motors：Proof-Explosion Motors
• Transport Package：Consist with International Shipping Packaging.
• Specification：CE, ISO
• Trademark：JZJ
• Origin：Yancheng Jiangsu
• HS Code：8419899090
• Production Capacity：2500 Sets,Year

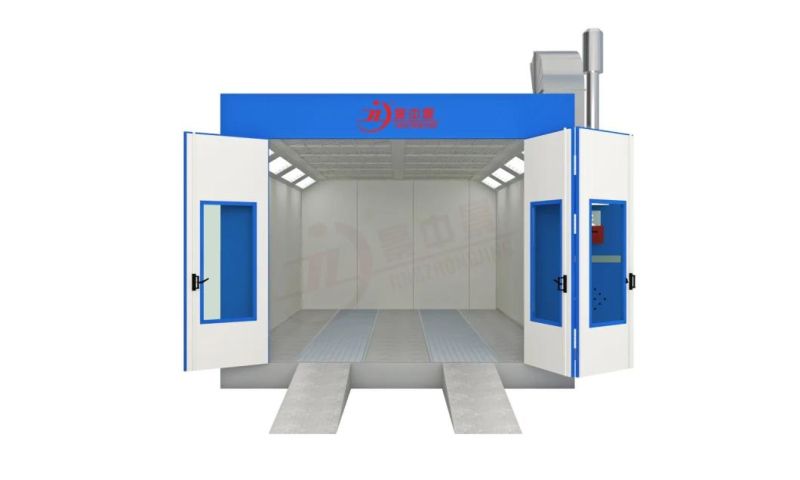

17KWCabin systemWall panel  50mm EPS sandwich panel, steel sheet thickness: 0.6mmCeiling panel Galvanized steel sheet.Basement300mm depth, middle with grids, side with checkered plates. Rampthree pieces 2000*900mm rampsGlass4mm safety tempered glassWindowsSquare glass windows. Air Make-up SystemAir Inlet fan system1*7.5kw turbo fan, proof-explosion motor, Ex ratedExhausted fan system1*7.5kw turbo fan, proof-explosion motor, Ex rated Air capacity 25000m3/hAir Flowing speed0.3m/s in empty boothAir Control methodOne manual damper for air inlet and exhausted systemAir ducting8 meters air duct, one flop damper and one weather hoodPurification SystemPre-filterG3 grade, Pockets filter Ceiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersPocket filter or M green fiber glass filter and active carbonHeating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:        RG5S diesel oil burner(gas burner for option)    Heating productivity                             260000Kcal/hSpray to baking switchPneumatic Damper Chimney ducting3 meters stainless ducting and one chimney elbowMax heating temperature80degreesHeating time5-6min(20-60degrees)fuel consumption6-8L/vehicleLighting SystemCeiling lights8 Units, each 4 * 36W Philips lamps, Total 1152 WSide lights8 Units, each 4 *20W Philips lamps, Total 800 WIllumination 1000LUXControlling systemSwitched control panel Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge
Q: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.

Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.

Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more

Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.

Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
