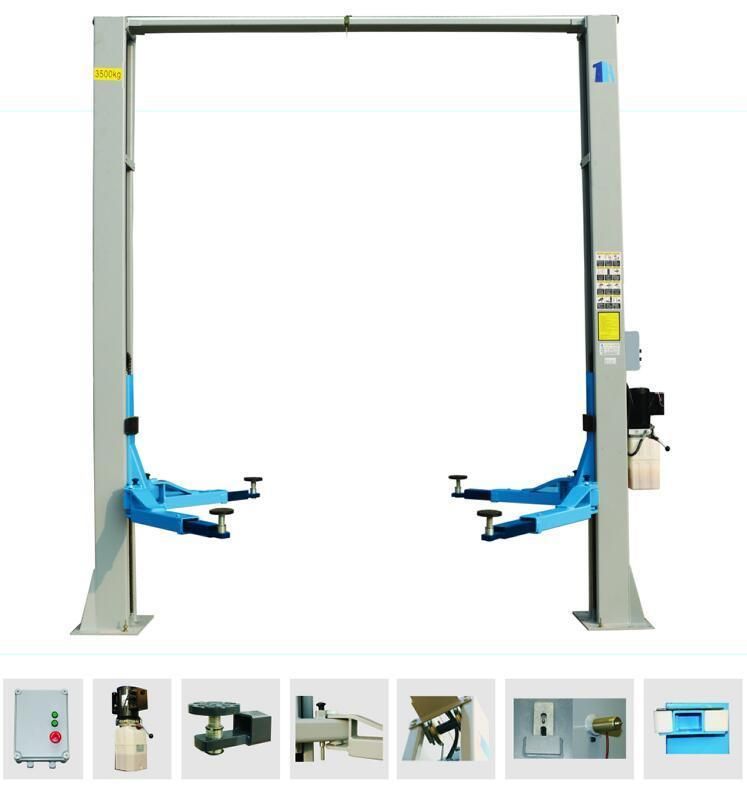

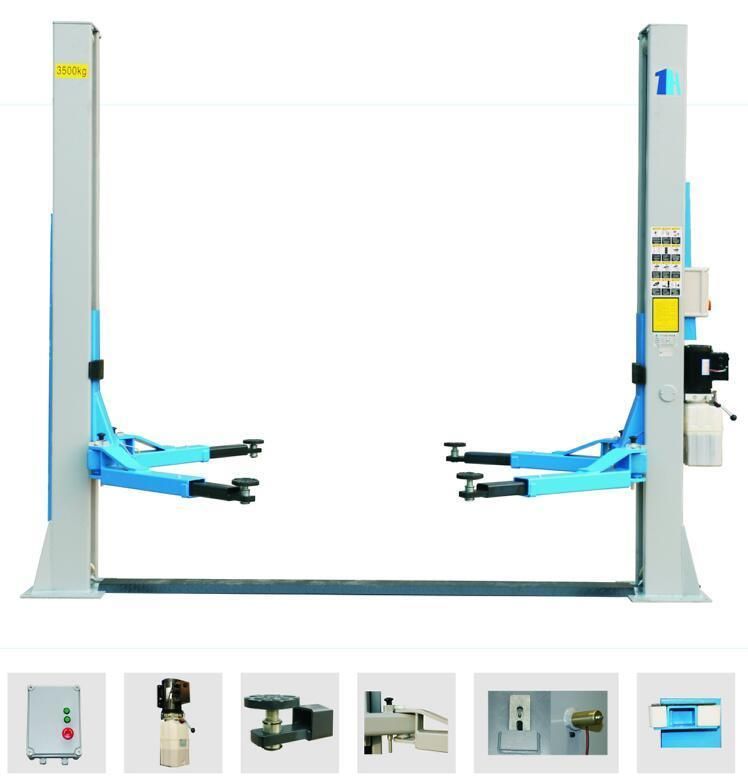

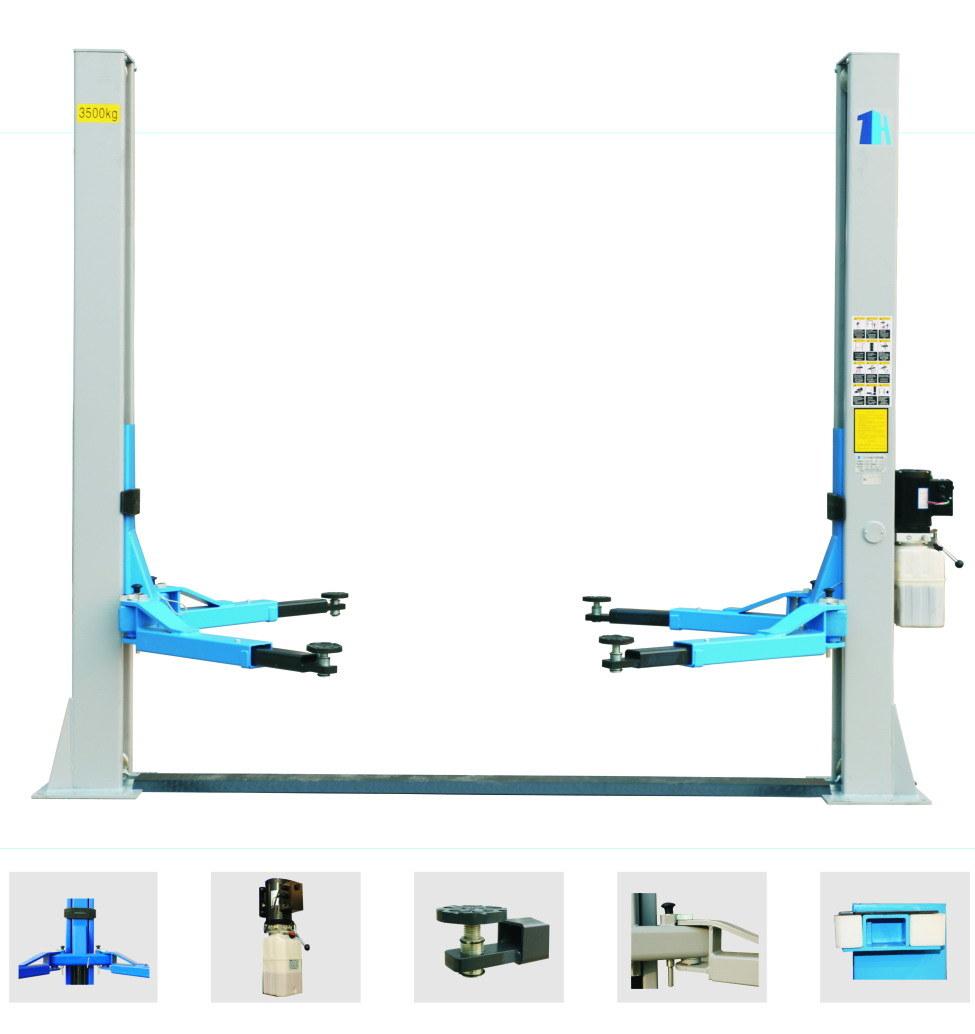

Hydraulic Thin Plate 2 Post Auto Car Lift Kit for Sale
Guangzhou Xiang Wei Automotive Equipment Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：3.5T
- Driving Type：Hydraulic
- Certification：CE, GS
- Driving Motor Number of Mechanical Lift：2
- Double Cylinder Lift Type：Thin Plate Type
Base Info
- Condition：New
- Design：Two Post
- Origin：Guangzhou China
- HS Code：842542900
- Production Capacity：200sets,Mon
Description
Basic Info.
Condition New Design Two Post Origin Guangzhou China HS Code 842542900 Production Capacity 200sets/MonProduct Description
Hydraulic Thin Plate 2 Post Auto Car Lift kit for saleFeatures
1.Floor plate design is a better choice for low ceiling shop.
2.Adopt double cylinder, plate chain and steel rope balance system to make lifting stable.
3.Hydraulic power unit, NOK seal circle.
4.Manual unlock at both sides.
5.Different arm design makes the adjustment range larger to suit different type vehicle.
6.Rubber pad protection.
7.Pass 115% dynamic and 150% static loading test.
Technical index:
Lifting capacity: 3500kg
Lifting height: 1850mm
Minimum height: 100mm
lifting time: 60s
Over height: 2822mm
Over width: 3384mm
Width between columns: 2760mm
Motor power: 2.2kw
Power supply: 220V/380V
Weight: 550kg
