• Model NO.：EasyDiag 2.0
• Condition：New
• Standard：Standard
• Language：Spanish, Chinese, Japanese, German, French, English
• Update Method：by Internet
• Type：Code Reader
• Working Voltage：Powered by Vehicle Battery, DC 9-15V
• Connection Method：Standard Obdii Interface, Micro USB2.0;
• Typical Consumption：(12V) Static Current 25mA
• Average Working Current of Overall Unit：35mA
• Working Temperature：-20 to 55c (-4 to 131f)
• Storage Temperature：-30 to 70c (-22 to 158f)
• Storage Humidity：<80%
• Working Humidity：<60%
• Transport Package：Standard Export Carton Box
• Specification：Launch X431 EasyDiag 2.0
• Trademark：Launch
• Origin：China
• HS Code：8543709990
• Production Capacity：6, 000 Sets Per Year
• Package size per unit product：10.00cm * 5.00cm * 3.00cm
• Gross weight per unit product：0.200kg

Basic Info.

Model NO. EasyDiag 2.0 Condition New Standard Standard Language Spanish, Chinese, Japanese, German, French, English Update Method by Internet Type Code Reader Working Voltage Powered by Vehicle Battery, DC 9-15V Connection Method Standard Obdii Interface, Micro USB2.0; Typical Consumption (12V) Static Current 25mA Average Working Current of Overall Unit 35mA Working Temperature -20 to 55c (-4 to 131f) Storage Temperature -30 to 70c (-22 to 158f) Storage Humidity <80% Working Humidity <60% Transport Package Standard Export Carton Box Specification Launch X431 EasyDiag 2.0 Trademark Launch Origin China HS Code 8543709990 Production Capacity 6, 000 Sets Per Year

Packaging & Delivery

Package size per unit product 10.00cm * 5.00cm * 3.00cm Gross weight per unit product 0.200kg

Product Description

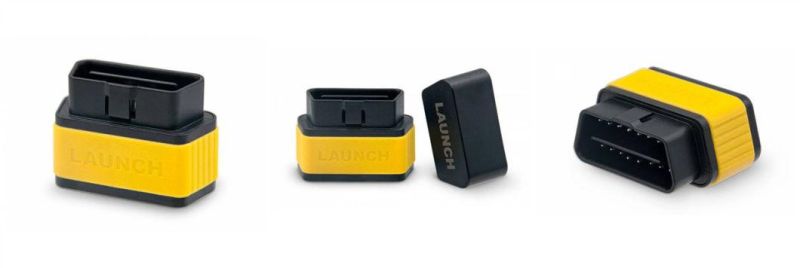

Launch X431 EasyDiag 2.0 POBDII Code Reader for Android & IOS with Software Update OnlineLaunch EasyDiag Description:
 Easygoing from Launch for Android device into a powerful diagnostic scan tool, giving the technician full access to Engine, Transmission, ABS (Brakes), SRS (Seatbelts and Airbag) systems and more. A highly intuitive menu guides technicians through step-by-step procedures for viewing and clearing trouble codes, along with the ability to view enhanced live data. Full color graphing for OBD II is also available. This scan tool does not require an interface. A single Bluetooth connector along with the company's software allows the user to select from over 30 manufacturers for Asian, European and Domestic applications.
 Launch EasyDiag Highlight:
 Vehicle diagnostic tool & Convenient, economical and advanced vehicle accessories
1. Supports OBD-II protocol, 10 test modes
2. Free OBD software download
3. Built-in Bluetooth module
4. Compatible with Andriod and iOS devices
5. Support all cars with 16-pin OBD port
6. Reads all DTCs and supports live data stream display

Launch EasyDiag Key Specifications/Special Features:

1. Full OBDII generic code reader/scanner capability included at no charge

2. Reads and clears codes on all vehicle systems

3. Complete system and subsystem coverage (engine, ABS, SRS, transmission and more) with live date and color graphing

4. Enhanced live date and for all vehicle system

5. Includes Bluetooth OBDII connector-optional extension cable available for easier plugging and unplugging of OBDII connector

6. Intuitive interface and easy to use

7. Customizable software-choose from over 70 Asian, European and North American manufacturer for enhanced capability

8. Single carline software priced individually per vehicle manufacturer

    Additional coverage, capabilities and functions with each new software update

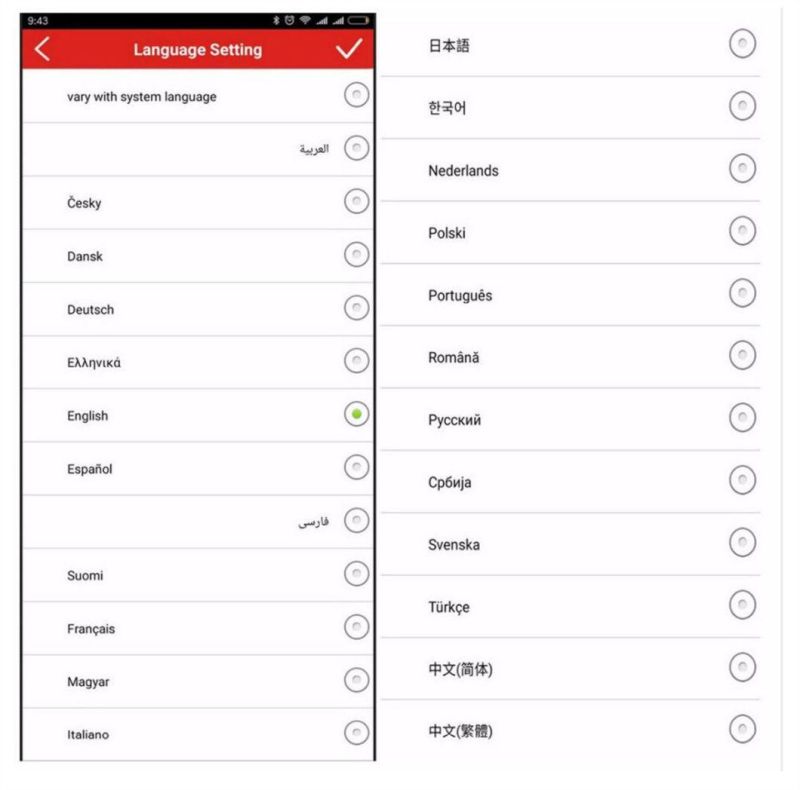

9. It supports lots of language:

Launch EasyDiag Parameter:
* Connection Method: Standard OBDII Interface,Micro USB2.0;

* Typical Consumption: (12V) Static Current 25mA
* Average Working Current of Overall Unit: 35mA
* Working Temperature: -20 to 55C (-4 to 131F)
* Storage Temperature: -30 to 70C (-22 to 158F)
* Storage Humidity: <80%
* Working Humidity: <60%
* Dimension: LxWxH=48mmx24mmx32mm
* Net Weight: Approx 26g
* Working Voltage: Powered by vehicle battery, DC 9-15V
