• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：18000
• Lighting System：Upper Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Movable Infrared Light(as Optional)
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 18000 Lighting System Upper Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Movable Infrared Light(as Optional) Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

GuangLi Brand Hot Sale Ce Approved High Quality Car Spray BoothGL1-CE Spray Booth Description

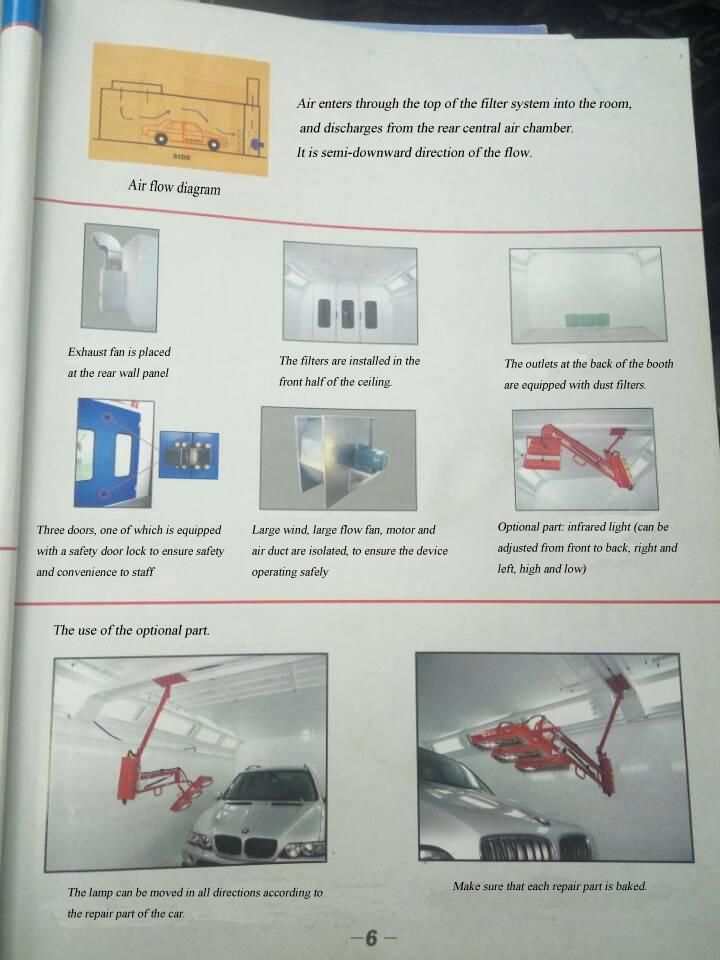

Outline:1. Exhaust fan is installed behind the spray booth.

2. Filter is placed in the outlet behind the spray booth.

3. Filter is placed in the first half of ceiling.

4. Three front doors, one of them equipped with pressure lock is for personnels convenience.

5. Big vane, strong air flow, motor and vane separated.

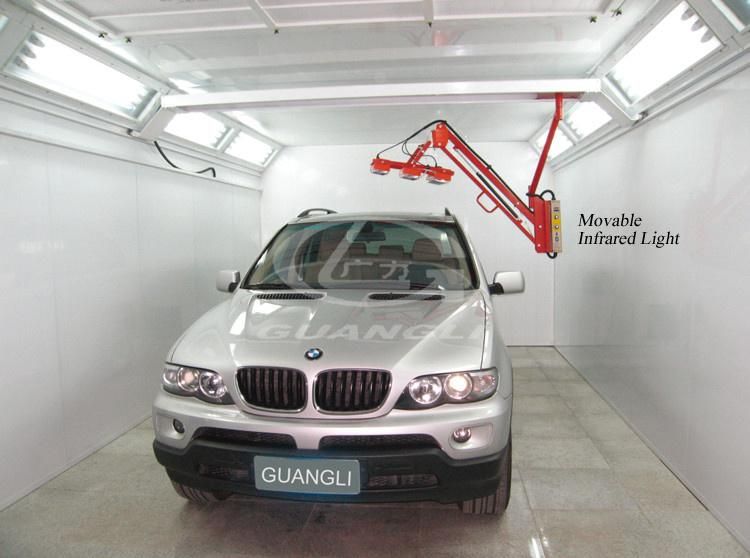

6. Infrared light for option. That infrared light is easily movable assures well baking of different parts.

--Wall panel: Sandwich style, thickness:50mm, polystyrene. Rock wool available as required.

--Door: 3 pcs of front door without aluminum side cover. 1 pcs of emergency door with pressure lock.

--Exhaust fan: 1 unit of 5.5kw centrifugal fan.

--Exhaust duct: 3m straight ducts, one 90 degree bend, and one 60 degree bend.

--Filtration: Mounted at the rear wall panel.

--Roof filter: 2 pcs of filter, mounted above support frame, which is made of steel and powder coated.

--Upper light: 8 sets, 4*40w per set.

--Control box: Components made in China, overload, overheat, phase-lacking protection, straight driven motor.

--Omni- directional movable infrared light as optional.

Model	GL1-CE
External size (m)(LxWxH)	8.1x4.0x3.2
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.7
Fan capacity( m 3 /h )	18000
Air velocity (m/s)	0.2-0.25
Power (kw)	7
Suitable Automobile Type	Car

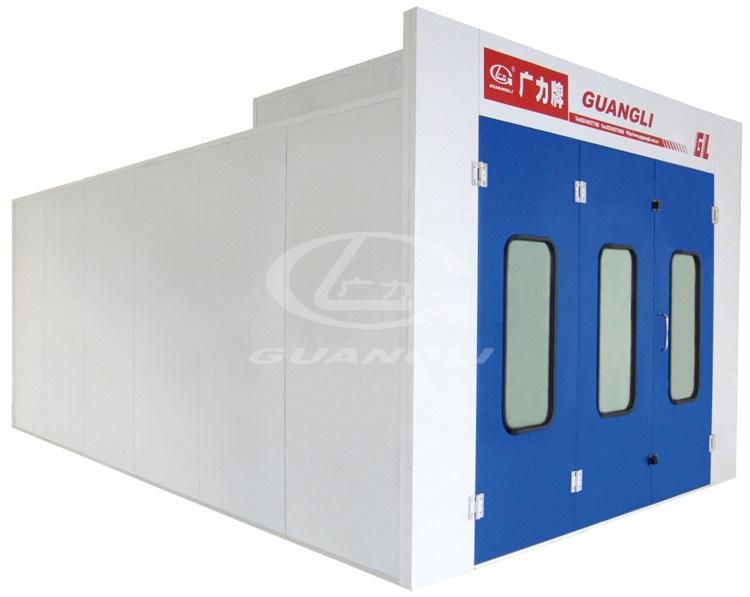

GL1-CE Spray Booth Show

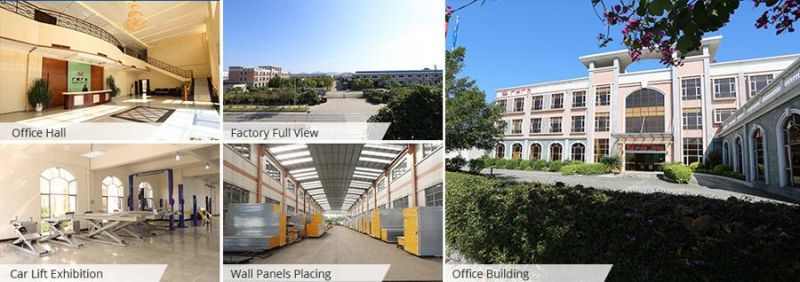

Factory Show
Guangzhou GuangLi Electromechanical Facilities Engineering Co.,Ltd. is one of the first automobile spray/baking booth manufactures in China, now the largest automobile spray/baking booth manufacturer in South China and enjoys a good reputation among China's automobile maintenance enterprises, covering an area of 60000m2 in production.

Our products have CE certifications and our company has passed ISO9001.The sales volume of spray booth ranks top in this field.
Guangli brand spray booth and lift have been approved and authorized by the following car manufacturers in China:Guangzhou Honda, Dongfeng Honda, FWA Toyota, Guangzhou Toyota, Dongfeng Peugeot, Dongfeng Citroen,Dongfeng Nissan,FAW Mazda,BMW South China, Chery Auto, Dongnan Auto,JAC Auto, Foton Motor, Hafei Auto etc.

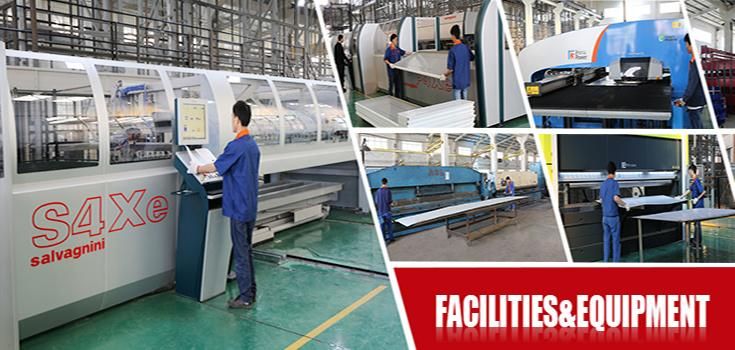

Equipment
With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.

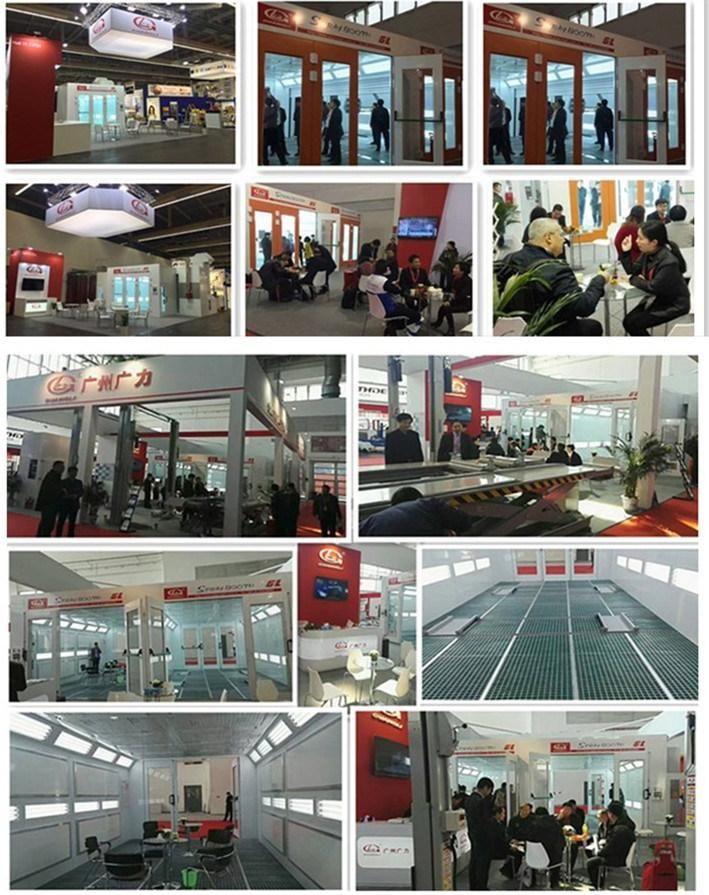

Exhibitions

FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.
