• Model NO.：CTXX-3
• Vibration Frequency (Hz)：>=23
• Transport Package：Metal Frame
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8479899990
• Production Capacity：100units,Month

Basic Info.

Model NO. CTXX-3 Vibration Frequency (Hz) >=23 Transport Package Metal Frame Specification CE Trademark AA4C Origin China HS Code 8479899990 Production Capacity 100units/Month

Product Description

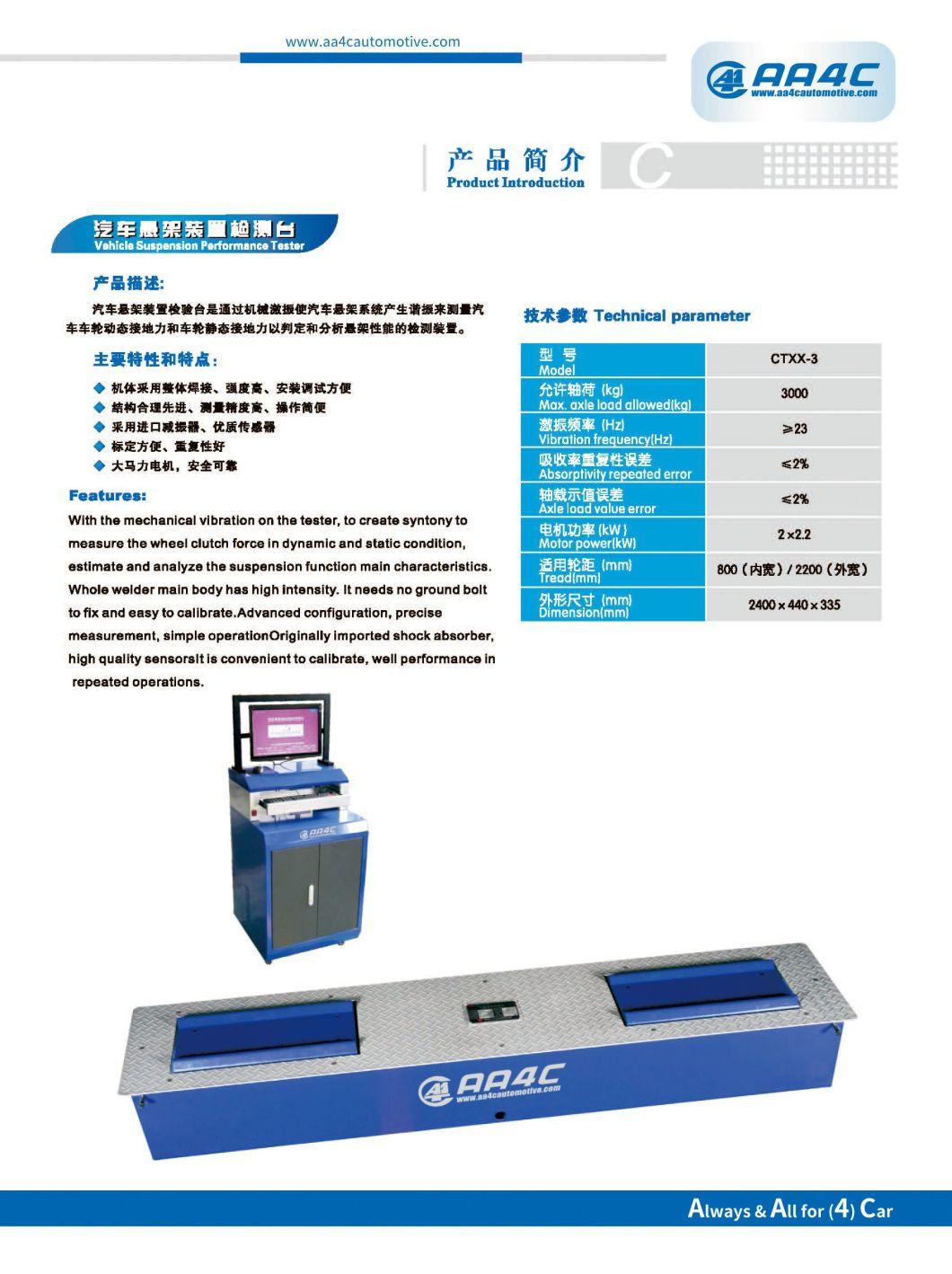

AA4C Vehicle suspension performance Tester

The product description:

Vehicle Suspension Tester is used to inspect the shock absorption performance of vehicles with independent suspension system. When the vehicle parks on the platform, the static wheel load will be measured by the sensor and displayed on the Monitor/Display Board. Then the motor will start to drive the Eccentric Wheel in the tester, which subsequently results into the vibration of Vibrating Plate. The motor will shut down automatically after reaching its nominal power. The plate will continue vibrating because of inertia, and result in sympathetic vibration between wheels and suspension. The minimum dynamic wheel load will be obtained during the sympathetic vibration. Then the absorption rate (displayed as percentage) can be calculated. The higher the absorption rate is, the better the suspension performance of the vehicle will



Main properties and features:

1. Galvanized plates with longer service life. The machine body adopts integral welding with high strength, which is convenient for installation and debugging
2. Low noise structure design is adopted to reduce vibration interference caused by equipment noise.
3. The software interface is easy to operate, learn and use
4. Imported shock absorber and high-quality and high-precision sensor are adopted, with stable performance. Easy maintenance of products
5. Which can test fast with high accuracy of test data, convenient calibration and good repeatability
6. The test results display in the visual graph are convenient to compare the situation before and after the suspension maintenance
7. High power motor, safe and reliable.
8. Based on the EUSAMA measurement standard, the product meets the industry standard JT / T448-2001

Main Technical Parameters

Model	CTXX-3	CTXX-10
Max. pass axle load (KG)	4000	10000
Max. test axle load (KG)	3000	3000
Vibration Frequency (HZ)	>=23	>=23
Deviation of Repeatability of Absorption Rate	<=2%	<=2%
Deviation of Axle Weight Indicating Value	<=2%	<=2%
Oscillation(mm)	6	6
Motor Power (KW)	2×2.2	2×2.2
Applicable Tread (Inner Width/Outer Width) (mm)	800/2200	800/2700
Power Supply	AC380V 50Hz	AC380V 50Hz
