• Model NO.：GL3-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：24000
• Control Panel：Straight Driven Motor
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：panel sandwich style, δ =50mm, polystyrene
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL3-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 24000 Control Panel Straight Driven Motor Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Transport Package Iron Frame Packing and Carton Packing Specification panel sandwich style, δ =50mm, polystyrene Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

Guangli Brand Factory Supply Automobile Workshop Tools Spray Paint Booth OvenProduct Description:
GuangLi(GL3-CE)Spray booth Feature
--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement:steel structure,3 rows of vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--Ramp: 2 pcs of vein board .
--One 7.5kw intake fan and one 5.5kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 Burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2pcs of floor filter and 1pc of outlet filter .--Upper light:10sets,4*40w per set.side lights:8sets,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.--Constant temperature spraying.
--Environmental filter:the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.

Model	GL3-CE
External size (m)	7.0x5.3x3.5
Internal size (m)	6.9x3.9x2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity( m3 /h )	24000
Air velocity (m/s)	0.3-0.35
Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Power (kw)	16
Heating System	Diesel,Gas
Suitable Automobile Type	Saloon Car

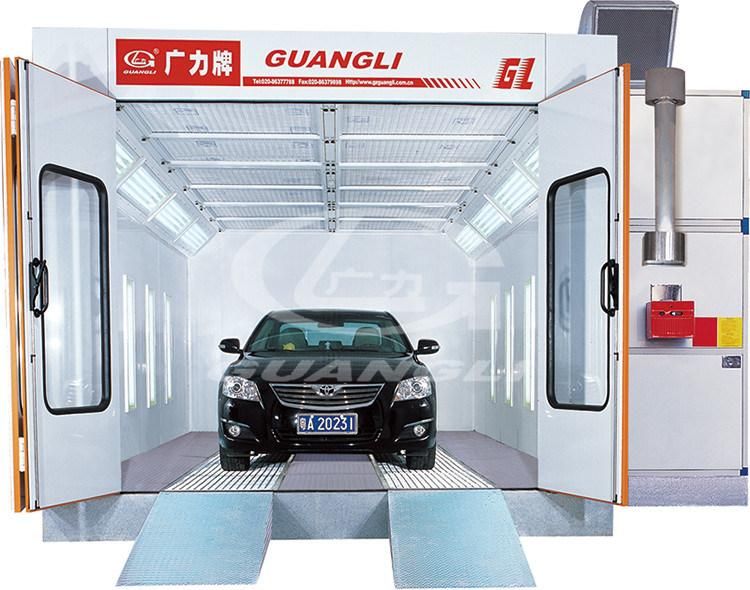

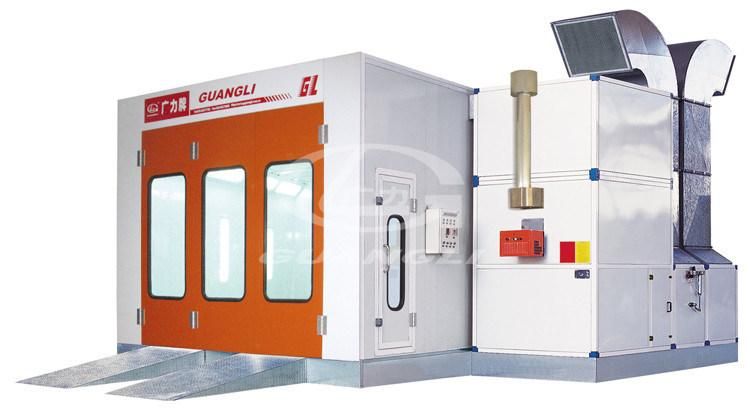

GuangLi(GL3-CE)Spray booth Show

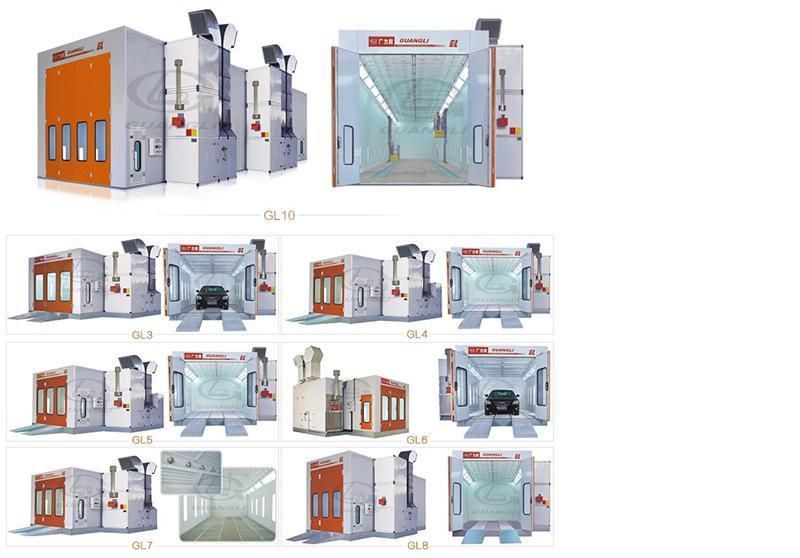

Other product series


Factory Show
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China,
having a good reputation among Chinese auto-maintenance enterprise.
Founded in 1994,GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer
for 22-year technical and production experience.GUANGLI has our enterprise headquarters and
 production base, which covers 58,000M² of grounding area and 36,000M² of building area.
Our products have been used in many car manufacturers' and thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.

Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the
world-class production level among this industrial.


Exhibition


FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.
7.24H service is available.
