• Model NO.：ORL-32FB
• Max Lifting Height：1900mm
• Min Height：110mm
• Transport Package：Standard Export Packaging
• Specification：CE & ISO
• Trademark：Orient
• Origin：China
• HS Code：84254290
• Production Capacity：500units, Month

Basic Info.

Model NO. ORL-32FB Max Lifting Height 1900mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

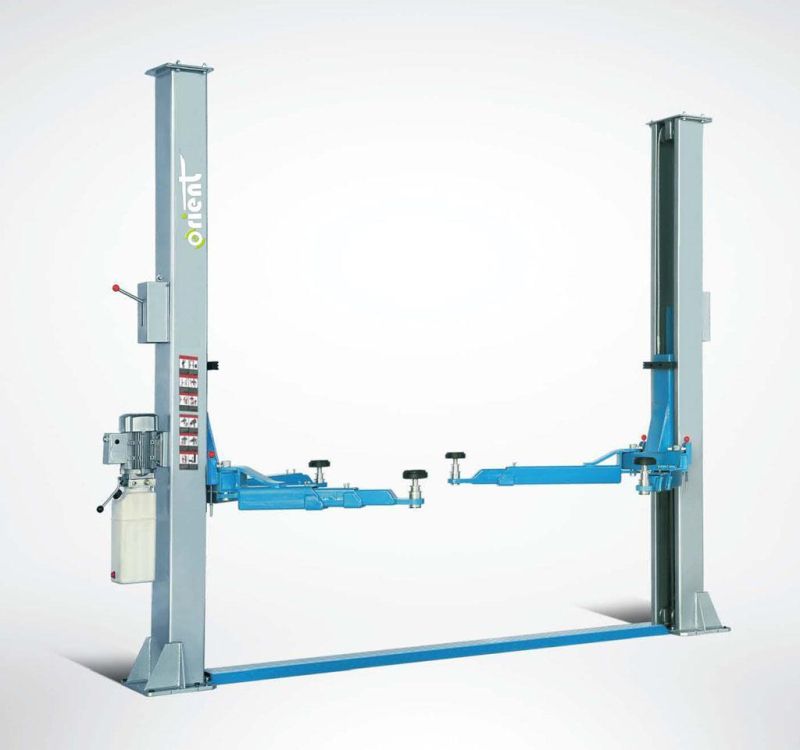

auto lift: two post hydraulic auto lift ORL-32FB




FEATURES:

*Floor plate design is ideal choice for low ceiling shop
*By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always djust the rate of decline.
*Manual lock release from one side,more convenient to use.
*Take three stages arm design, a larger adjustment range, for different vehicle chassis.
*Retractable tray with three screw designed, adjustment range 110-240mm.
*With 24V limit switch. Asymmetric column allows wider drive through clearance.
*Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
*Rubber support pad door-opening protection.
*Truck adapters can optional.Have adopted 115% dynamic and 150% static loading tested.
*With guard rail, toe protection
*CE approved

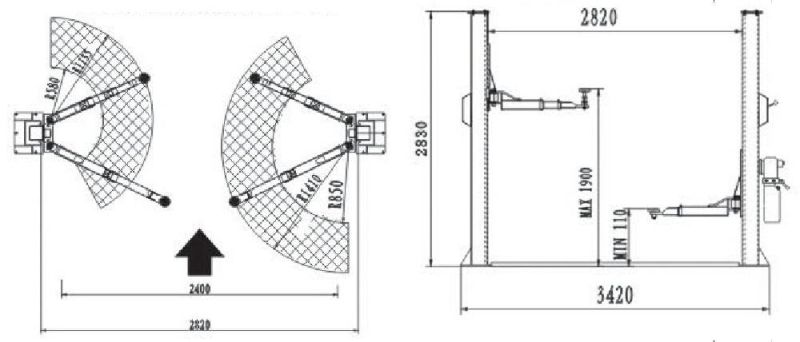

Overall Dimensions:




Lifting Capacity	32000kg
Lifting Height	1900mm
Minimum Height	110mm
Lifting Time	40/50s
Overall Height	2826mm
Overall Width	3420mm
Width Between Columns	2820mm
Motor Power	2.2kw
Power Supply	220V/240V/380V/415V
Weight	636kg/680kg
Packing Size	2900*530*770mm
