Hydraulic Double Column Lifter Yj3.5
Xi'an Amco Machine Tools Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：3.5T
- Certification：CE, ISO
- Design：Two Post
- Transport Package：Wooden Case
- Specification：SGS
Base Info
- Model NO.：YJ3.5
- Trademark：AMCO
- Origin：Shaanxi Xi′an
- Production Capacity：50, 00 Sets,Year.
Description
Basic Info.
Model NO. YJ3.5 Trademark AMCO Origin Shaanxi Xi′an Production Capacity 50, 00 Sets/Year.Product Description

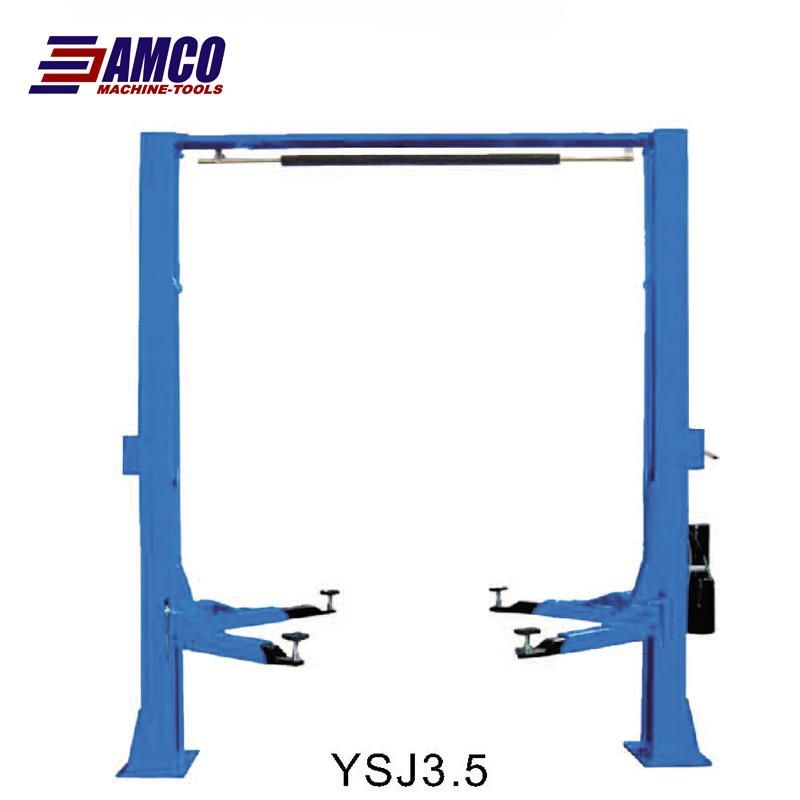

Planer Two Post Lifter YJ3.5
Features:
1.Single-point manual lock release 2.High quality China-made power
unit2.Driven by synchronization of double cylinders3.Rack type lifting arm self-locking structure4.Steel cable enables left and right synchronization With limit switch in the top position
Specification:
| Lifting capacity | 3500Kg |
| Min. height | 115mm |
| Max. height | 1850mm |
| Overall height | 3636mm |
| Width between columns | 2760mm |
| Overall width | 3384mm |
| Lifting time | 60s |
| Lowering time | >30s |
