• Model NO.：EPS207
• Delivering Method：Sea Shipping; Air Shipping; Courier
• Production Time：10-15 Working Days
• Gurantee：One Year of Free Maintenance for Overall Unit, EQ
• Test Plan：Includes More Than 3000 Test Plan
• Function：Solenoid Injector and Piezo Injector Testing
• Bip Function：Common Rail Bip Function (Optional)
• Brand：Mant
• Factory：Real Strong Manufactory
• HS：9031200090
• Quality：Very Good
• Transport Package：Plywood Box
• Specification：92CM*87CM*102CM; 140kgs
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. EPS207 Delivering Method Sea Shipping; Air Shipping; Courier Production Time 10-15 Working Days Gurantee One Year of Free Maintenance for Overall Unit, EQ Test Plan Includes More Than 3000 Test Plan Function Solenoid Injector and Piezo Injector Testing Bip Function Common Rail Bip Function (Optional) Brand Mant Factory Real Strong Manufactory HS 9031200090 Quality Very Good Transport Package Plywood Box Specification 92CM*87CM*102CM; 140kgs Trademark NANT Origin China HS Code 9031200090 Production Capacity 3000 Sets/Year

Product Description

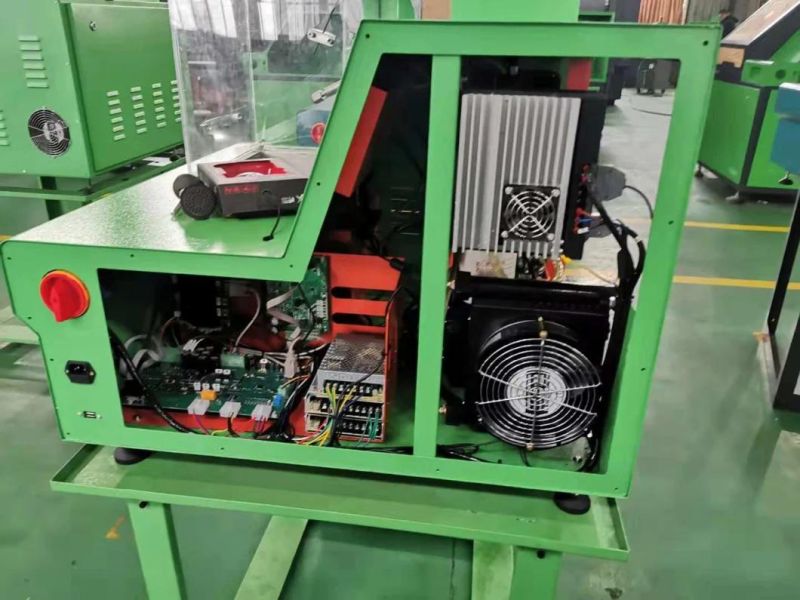

Portable Common Rail Injector Tester EPS207

The product is able to detect Bosch, electronics, Delphi, Siemens, Carter and other brands of electronic fuel injectors, using frequency conversion speed control, industrial computer control, special software as the core, touch screen operation, can complete the entire test of the injector.

Functions and characteristics:
1.The test is comprehensive. It can test the fuel injection volume of all injectors, such as full load, medium speed, idle speed and pre injection.
2.Wide range of uses. It can detect BOSCH, Denso, Delphi, SIEMENS, Carter and other injectors.
3.Automatically test various solenoid valve injector and Piezo injector
4.It can set Cummins ISG injector
5.The noise of the whole machine is low. Main engine adopts frequency conversion speed regulation, speed precast, low noise and no impact.
6.Control advanced. One key selection, whole process detection.
7.There are more than 3000 kinds of standard parameters of injector.
8.You can set the injection current curve, injection time and pressure by yourselves
9.Open data management. Under the guidance of users, they can add their own injector fuel quantity, especially suitable for new injector standard fuel quantity calibration.

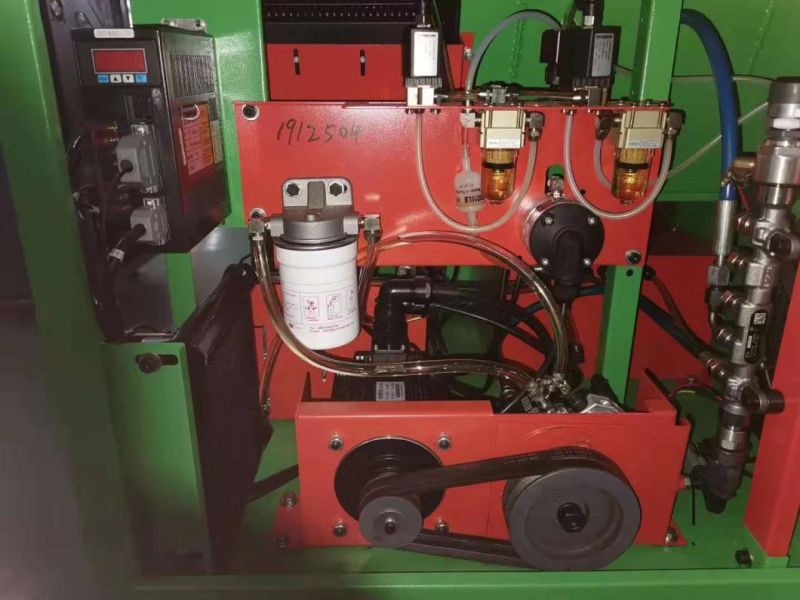

Main configuration:
1.Equip with original Bosch DRV and CP1 pump
2.Fuel temperature controller 40±2 ºC
3.quip original high precision flow sensor
4.Equip original Bosch pressure sensor(0-2200bar)
5.Single servo motor

Technical parameters:
1.Power supply parameters: Single-phase,220 volt voltage
2.Main engine speed: 0---3000 RPM / min
3. IV injector maximum pressure: 2000Bar
4. Filter accuracy: less than 5 m
5.Fuel tank capacity: 15 liters.
6. Full size: 85*83*60(CM)
7. Weight: 140 kg
8.12 Inch Touch screen display

System advantage:
1.Injector database management: edit, save,revise,delete
2.Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
3.Can be modified to dosage cup test.
