• Transport Package：Carton Box
• Origin：China

Basic Info.

Transport Package Carton Box Origin China

Product Description

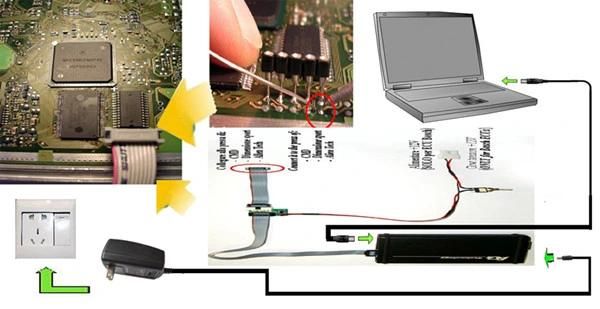

Latest Version VD300 V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function Top 6 Reasons To Get VD300 V54 FGTech Galletto 4: 1. Latest Version: V542. Supported Operating System: Windows XP, more friendly than Fgtech v53 , much easier to operate 3. Unlock Version: Can Use Directly. No Need To Activate4. FGTECH V54 PCB board 5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish6. Support Tricore Function FG Tech Galletto BDM Connection:

FG Tech Galletto 4 Maste Description: FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum. V54 FGTech Galletto 4 Boot Mode System: NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEONFreescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMFNew Delphy DCM3.5xx DCM3.7xx TRWMotorola Freescale MPC 555/556/561/562/563/564/565Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAABMotorola MC 68376 Campi 01 Lamborghini - LotusMotorola MC 68336 MEMS D5 ROVERMotorola ZC 439615 - ZC 439507 IAW FIAT - VAGNew Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-CadilacNew Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu V54 FGTech Galletto 4 Automatic Checksum: All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / DensoBoot Mode C167x / ST10, Boot Mode Infineon With password Bosch , SiemensMotorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507Motorola Freescale MPC 555/556/561/562/563/564/565Freescale MPC 5553/5554/5565/5566BDM

5-30V Car / Industrial Vehicles, L line / K line KWP, CANCan Bus V2.0 50Kb > 1000KbJ1850 VPW PWM GM -FORDRx Tx RS232,RS 485,Automatic setup Pull up K-L line 250, 500, 1000 ohm,Automatic setup termination Can bus 0, 60,120 ohm, FGTech Galletto 4 Master Version: Recovery Mode CompletaFunzione scan tool per eliminare i DTCFunction scan tool for erase the DTCControllo tensione di batteria auto in tempo realeCheck tension of battery car in real time FGTech Galletto V54 Package List: 1pc x New Version Main Interface1pc x ECU Cable for Boot1pc x Adapter for BDM to CMD with BDM Cables3pcs x BDM Adapters6pcs x BDM Connectors2pcs x Power Cable1pc x OBD2 Cable1pc x USB Cable (1.5meter)1pc x CD ( SW -MASTER, Documents PDF, Pictures, etc.)
