Capacity on Ground Big Scissors Car Lifts 4t
Xi'an Amco Machine Tools Co., Ltd.- Lifting Capacity：4T
- Certification：CE, ISO
- Condition：New
- Design：Scissor
- Lifting Height：1700mm
- Secondary Lifting Height：450mm
Base Info
- Model NO.：JS420
- Lift Time：up 60s Down 50s
- Length of The Platform：600mm
- Transport Package：Iron
- Specification：ISO
- Trademark：AMCO
- Origin：Shaanxi
- Production Capacity：20-30 Set , Month
Description
Basic Info.
Model NO. JS420 Lift Time up 60s Down 50s Length of The Platform 600mm Transport Package Iron Specification ISO Trademark AMCO Origin Shaanxi Production Capacity 20-30 Set / MonthProduct Description

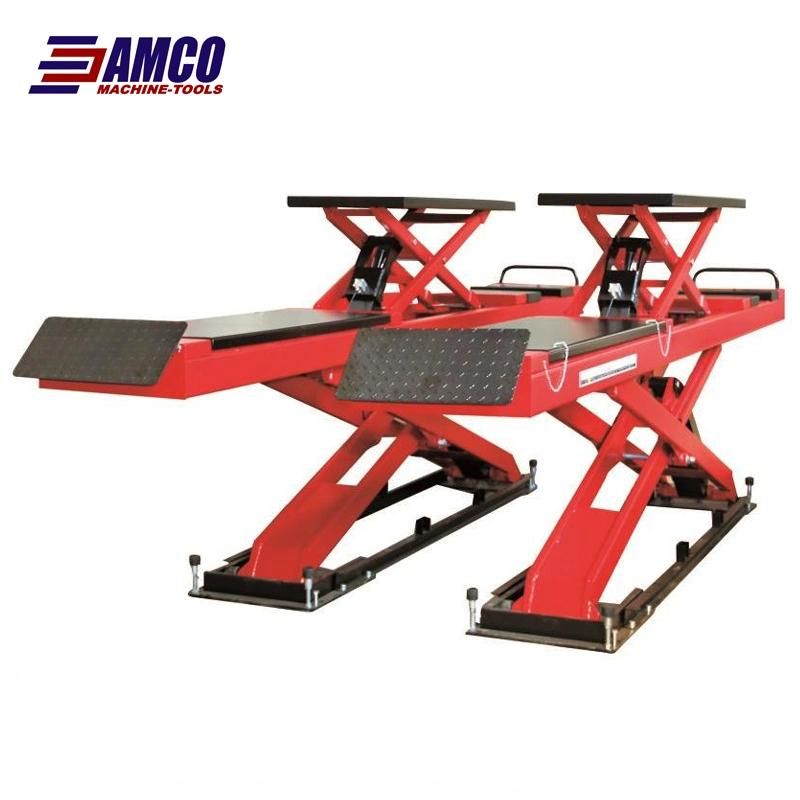

Capacity on Ground Big Scissors Car Lifts 4T
1.On-ground mounting,with rolling jack
2.Adjustable worktables and platforms with front recesses can accommodate different kinds of 3.wheelbases and wheel tracks.
4.24V safety operating voltage.
5.Pneumatic lock release
6.Steel plate scissors which has good resistance to deformation
7.There is no-oil bearing inside rolling axis parts makes small noise.
8.Relief valve built in power pump to prevent overloading.
| Lifting capacity | 4000kg |
| Lifting height | 1700mm |
| Secondary lifting height | 450mm |
| Lift time | Up 60s down 50s |
| Length of the platform | 600mm |
| Motor power | 220V/380V 2.2kw |
| Hydraulic oil | 220kg/cm |
| Air pressure | 6-8kg/cm |
| Weight | 1780kg |
