Product Description

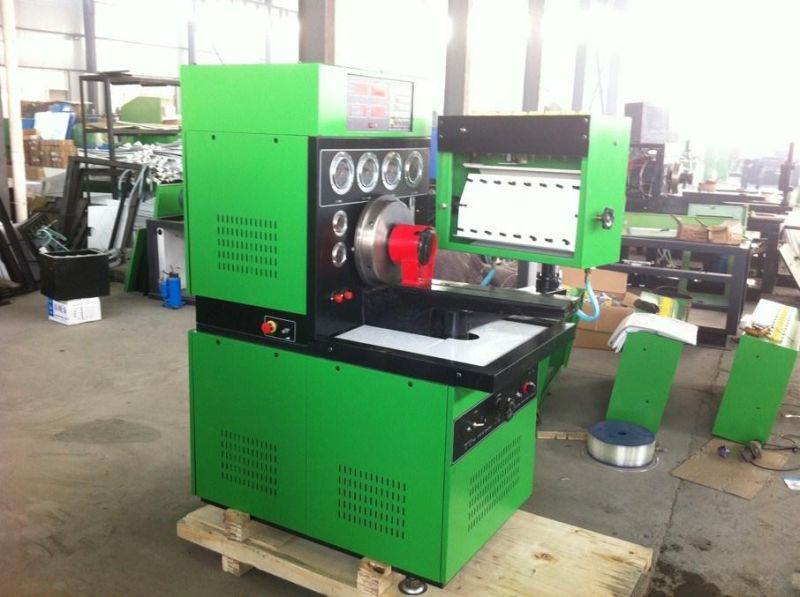

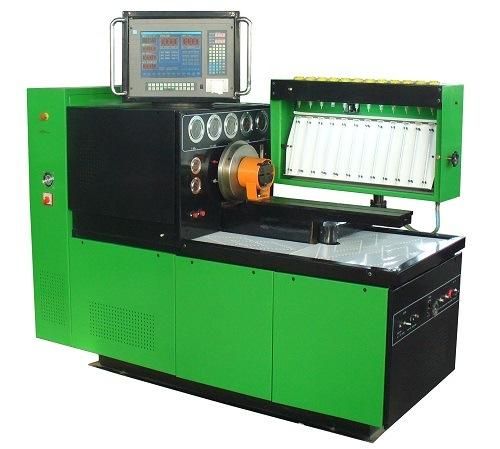

12PSDW DIESEL FUEL INJECTION PUMP TEST BENCH

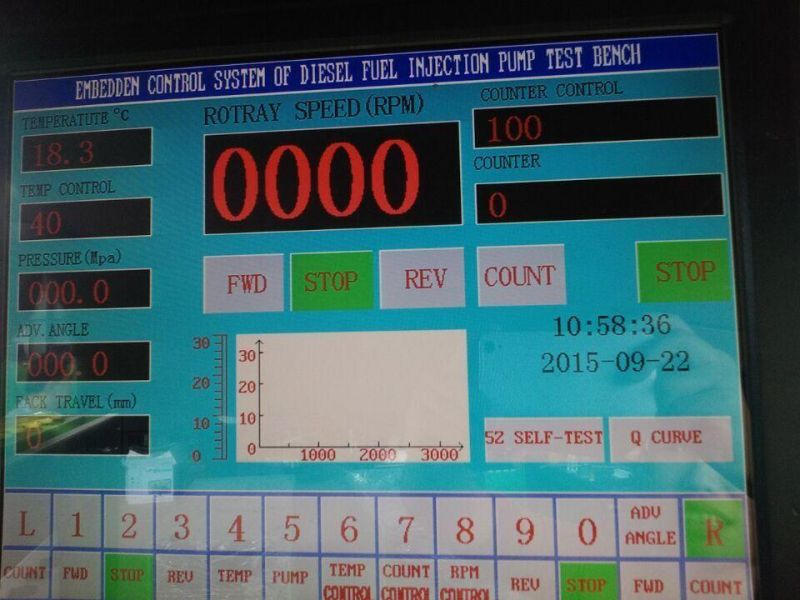

This Pump Test bench is digital displayed. And we also supply test bench with computer control.

This test bench Features:

1. Changing frequency changing rotation speed;

2. Small fall of rotation speed and high output torque;

3. High measurement precision, Ultra low noise;

4. Over voltage, Overload and short circuit protection;

5. Ten kinds of rotation speeds presetting;

6. Constant temperature controlled;

7. Rotation speed, count, advance angle and temperature are displayed in digits mode, and air pressure is displayed on the mechanical gauge;

8. Built-in Air resource;

9. Can be operated from both sides.

Functions:

1. Measurement of each cylinder's delivery at various rotation speeds

2. Checking each cylinder's injection starting position and delivery interval angle

3. Checking and adjust the mechanical speed governor.

4. Checking and adjusting the distributor pump.

5. Checking and adjusting behavior of supercharging and compensatory device.

6. Measurement of the reflux delivery of distributor pumps

7. Checking the electromagnetic valve of distributor pumps. (12V/24V)

8. Measurement of the distributor pump's body internal pressure.

9. Checking the sealing of fuel injection pump body

10. Install tube of auto-sucking oil supply can check on oil supply pump. (including VE pump. )

11. Measurement of advance angle

Technical parameters:

1. Adjustable rotation speed range: 0~4000 RPM

2. Test cylinders: 12.

3. Rotation speed presetting: 10 kinds.

4. Test Bench DC. Supply: 12/24V

5. Test Bench Feeding pump motor: 1.1kw

6. Series of graduate glass: 45cc, 150cc. The 260cc is optional

7. Volume of oil tank: 60L

8. Main shafts Center height: 125mm

9. Flywheel inertia's moment: 0.8kg. M2,

10. Stoke counting: 50-9999

11. Control temperature of fuel oil (): 40+2

12. Feed oil pressure: Low pressure 0-0.4MPa, high-pressure 0-4Mpa.

Internal pressure: 0-0.16MPa, 0-1.6MPa.

13. Rotation direction of Main shafts: Clockwise or Anticlockwise

14. Packing dimension: Approx. 4.5M3 CBM

15. Packing weight: Approx. 900kg

16. Test Bench Output power: 5.5kw, 7.5kw, 11kw and 15 kw or on request

17. Test Bench 3-phase power supply: 380v/50hz or on request.

18. Test Bench Color available: Green, blue, red, yellow or on request.

In additon, we have test bench EXTRA COOLING SYSTEM, lubricating oil system for your optional choice.
If you are interested in such kind pump test bench, just contact us!
