• Model NO.：GL4000-A3
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：External size (m) 7.0X5.6X3.8
• Trademark：guangli
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL4000-A3 Heating Mode Electric Paint Mist Treatment Dry-type Condition New Transport Package Iron Frame Packing and Carton Packing Specification External size (m) 7.0X5.6X3.8 Trademark guangli Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

As the completement of the Environmental Protection Act and the improvement of peoples environmental protection awareness, Environmental-protection paint (water soluble paint )in the vehicle maintance industry in the application has become a trend, so the water soluble spray booth born. Because the traditional paint cause pollution to the environment.

--Wall panel: Sandwich style, g=50mm, polystyrene, rock wool available as required.

--Basement: Steel structure, full grids, ramp: 2 PCS of grids.

--Door: 3 PCS of front door without aluminum side cover. 1PC of emergency door with pressure lock.

--One 11kw intake fan and one 11kw exhaust fan.

--Water soluble paint with hot-air acceleration system: 1set

--4m straight exhaust ducts, one 90 degree bend, and one 60 degree bend. 5m straight chimney and 2 small bends.

--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.

--Spraying/baking transition damper, automatically air controlled.

--Heat exchanger: Stainless steel. RIELLO/ RG5S burner.

--Roof filter: 6 PCS of filter, mounted above support frame, which is made of steel and powder coated.

--5 PCS of floor filter and 2 PCS of outlet filter.

--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.

--Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection, engine y/ start...

--Automatically stop when preset time is up.

--Constant temperature spraying.

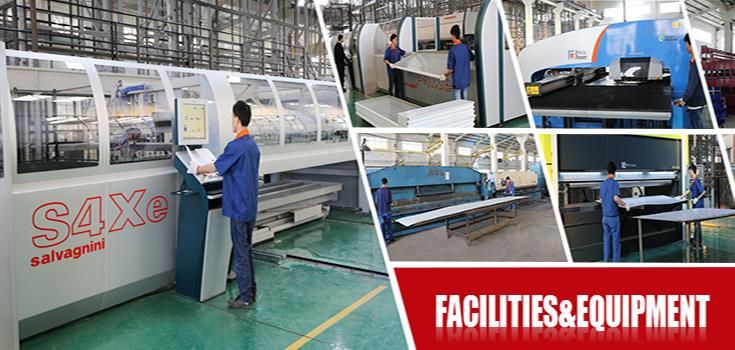

Equipment
Exhibition

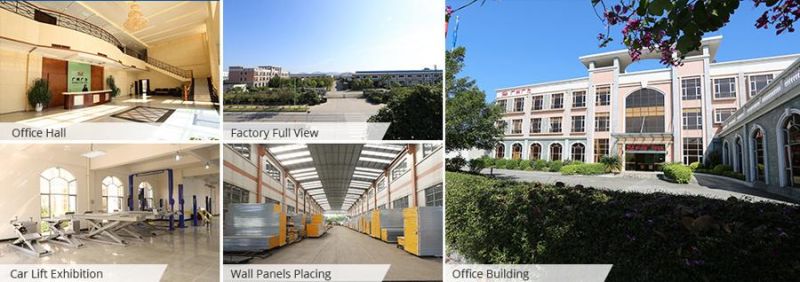

Factory Show

Model	GL4000-A3
External size (m)	7.0X5.6X3.8
Internal size (m)	6.9x3.9x2.7
Entrance Width(M)	3.0
Entrance Height(M)	2.7
Fan capacity( m 3 /h )	25000
Air velocity (m/s)	0.3-0.5
Air ventilation (times/h)	332
Max Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Power (kw)	26.5
Suitable Automobile Type	Car
