• Update Method：by Hard Disk
• Condition：New
• Standard：Standard
• Transport Package：Carton Box
• Specification：22cm*16cm*8cm
• Origin：China
• Package size per unit product：14.00cm * 19.00cm * 16.00cm
• Gross weight per unit product：1.500kg
• Lead Time：7 days (1 - 1 Pieces) To be negotiated ( > 1 Pieces)

Basic Info.

Update Method by Hard Disk Condition New Standard Standard Transport Package Carton Box Specification 22cm*16cm*8cm Origin China

Packaging & Delivery

Package size per unit product 14.00cm * 19.00cm * 16.00cm Gross weight per unit product 1.500kg Lead Time 7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)

Product Description

GM MDI Scan tool Multiple Diagnostic Interface V2021.10.1 without WIFI


Highlights of MDI:
1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose



2.Can do cars from 1990-2021 Year
3.Support 2010-V2021.10.1 year new cars


GM MDI is the Multi Diagnostics Interface
1.works as the high-quality Vauxhall / Opel dealer diagnostic interface
can be used with Global TIS, GDS 2, Tech2Win software
2.provides full dealer level diagnostics and programming
3.supports all Vauxhall /Opel 16 pin vehicles from 1996 to 2019
4.perfoms quickly and used easily to make customers happy and win new business by offering the exact same functions as the main dealers, including;
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions

Description:
General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

MDI and GDS Background
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles

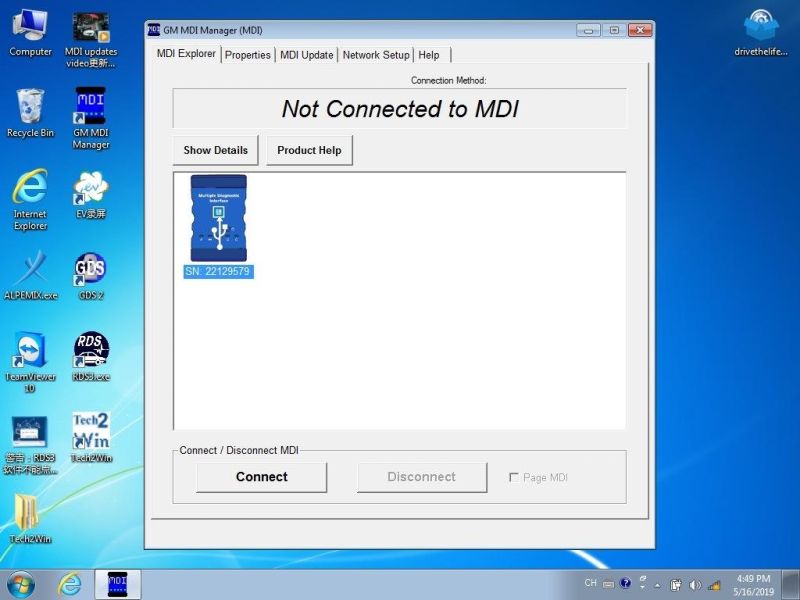

Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic

GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application
Includes Flight Recorder Mode
New Diagnostic Application Software required for Global A Vehicles
Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.

What protocols does the MDI support?
For immediate use - At present, vehicles have two buses on the 16 pin connector
(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
- UART
- Class 2
- KWP2000
- GMLAN (CAN)

The Future of the Tech 2
The Tech 2 remains an essential tool through at least the 2010 model year. The GM MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.

HOW WILL THE GM MDI BE USED?
The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.

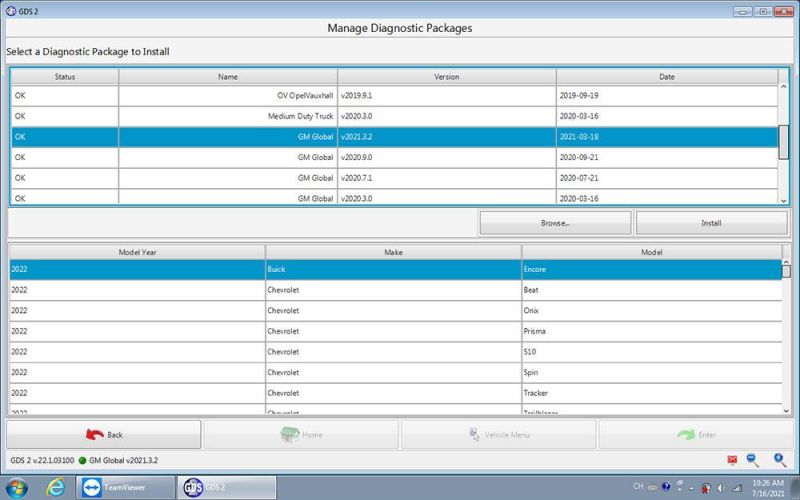

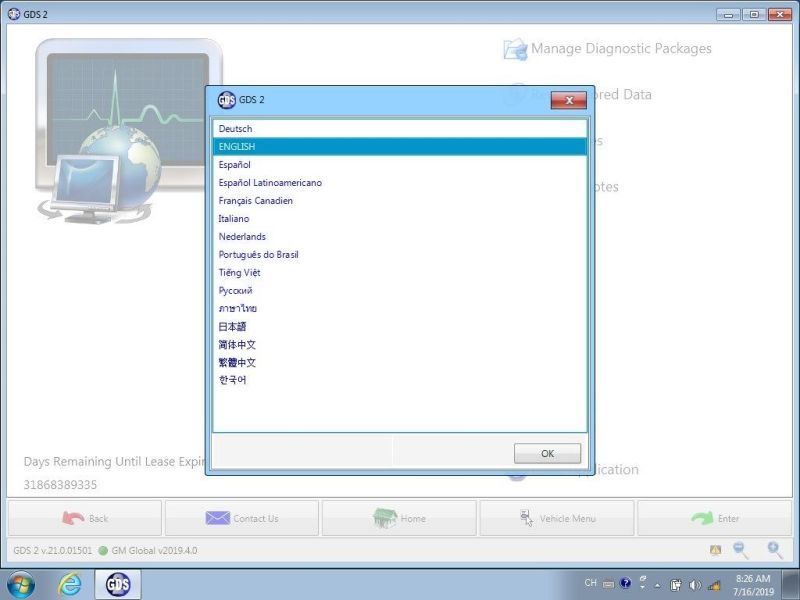

When you test after 2010 year gm car, you can use gm gds2 software:

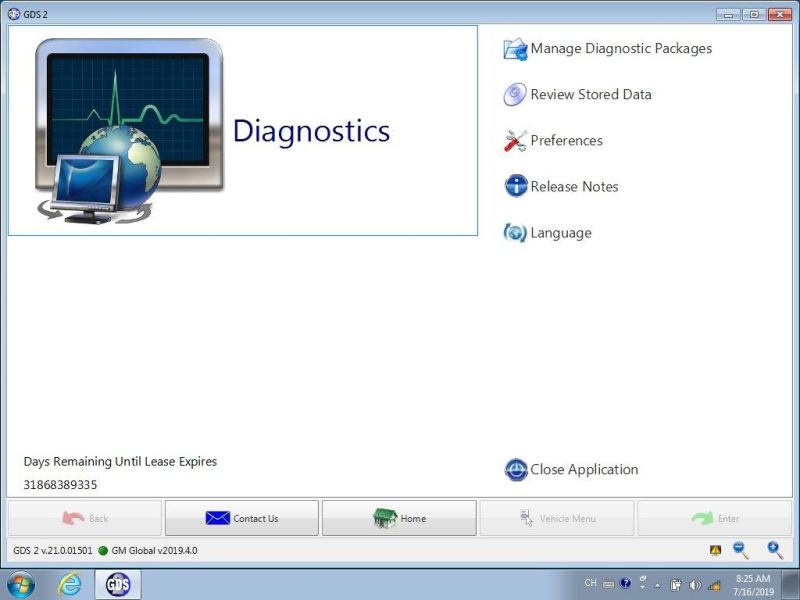

When you want to test After 2010 year GM car, you can use the GDS software to test it,run fast and stable

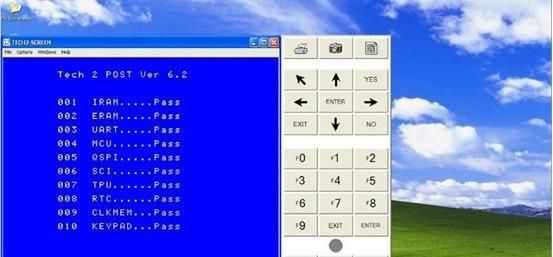

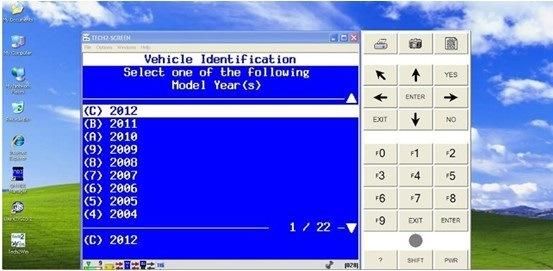

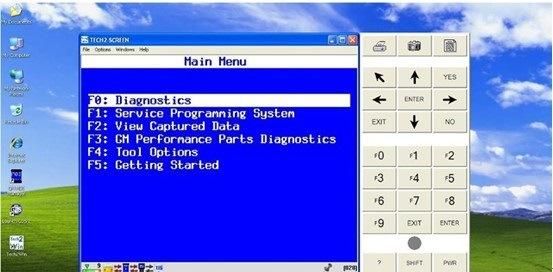

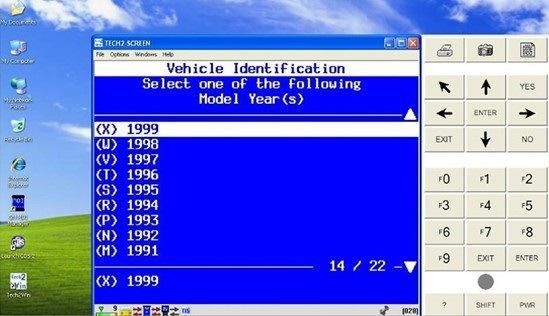

When you want to test before 2010 year GM car, you can use the tech2win software to test it,run fast and stable:








MDI Scan Tool Package List:
1pc x MDI Main unit
1pc x OBD2 Cable
1pc x USB Cable
1pc x AC Adapter
1pc x V2021.10.1 software 500G HDD(Optional)

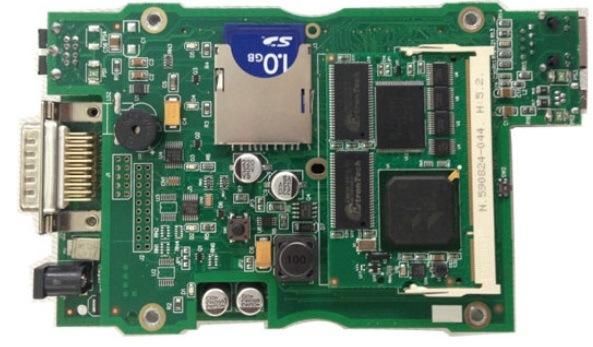

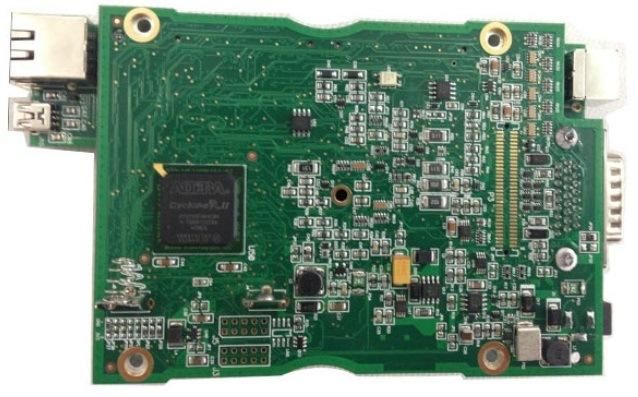

PCB Board Display:
