• Model NO.：ON-7801
• Shearing Lift Type：Ultrathin Type
• Condition：New
• Brand：Eounice
• Design：Scissor
• Transport Package：Wooden Box
• Trademark：Eounice
• Origin：Guangzhou China
• HS Code：8425429000
• Production Capacity：10000

Basic Info.

Model NO. ON-7801 Shearing Lift Type Ultrathin Type Condition New Brand Eounice Design Scissor Transport Package Wooden Box Trademark Eounice Origin Guangzhou China HS Code 8425429000 Production Capacity 10000

Product Description

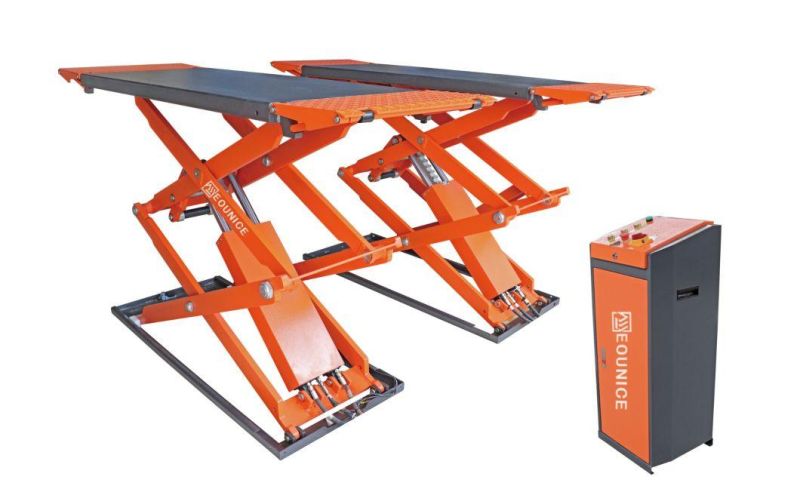

Pneumatic safety lock release, low profile full-rise scissor lift.

FEATURES

1. CE approval.
2. 3,500Kg (8,000LBS.) lifting capacity.
3. 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms.
4. Durable cylinders with anti-surge valves.
5. Pneumatic or electrical safety lock release system.
6. 24V low voltage electrical control system.
7. Self-lubricated bushing and bearing.
8. Low profile design, min height is only 110mm (4 5/16").
9. Standard with height limit switch.

Standard with aluminum motor power unit.

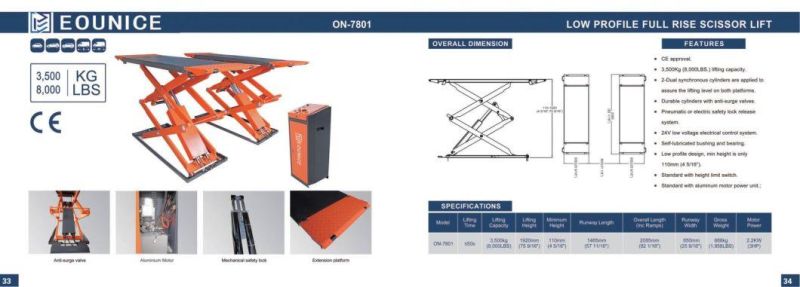

TECHNICAL DATA

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Runway Length	Overall Length (Inc.Ramps)	Runway Width	Gross Weight	Motor Power
ON-7801	3,500kgs (8,000LBS)	≤50S	1850mm (72 7/8")	110mm    (4 5 /16")	1465mm (57 11/16")	2085mm (82 1/16")	650mm (25 5/8")	913kgs (2,013LBS)	2.2KW (3HP)

STRENGTHS:

1. Low profile design, min height is only 110mm (4 5/16"), suitable for low-chassis vehicles.
2. The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
3. Large diameter 2-Dual synchronous cylinder (master cylinder 80mm), easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

=====================================================================================================

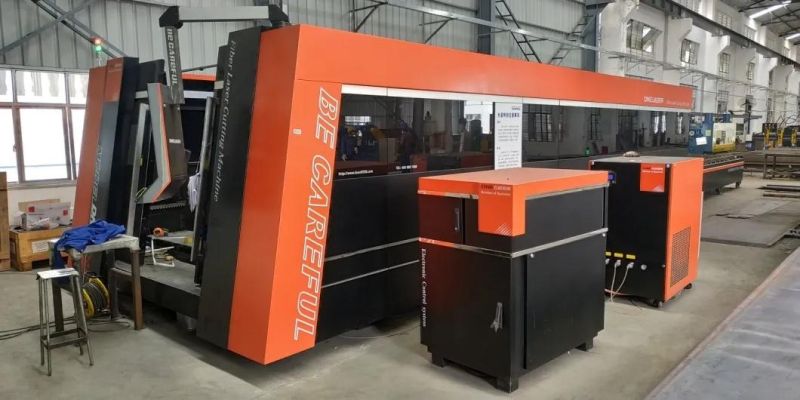

Seamless Laser Cutting

1. High Accuracy and Precision Cuts
2. Causes No Damage Or Warping, Even to Thin Materials
3. Higher Sheet Utilization with Less Waste & Low Power Consumption

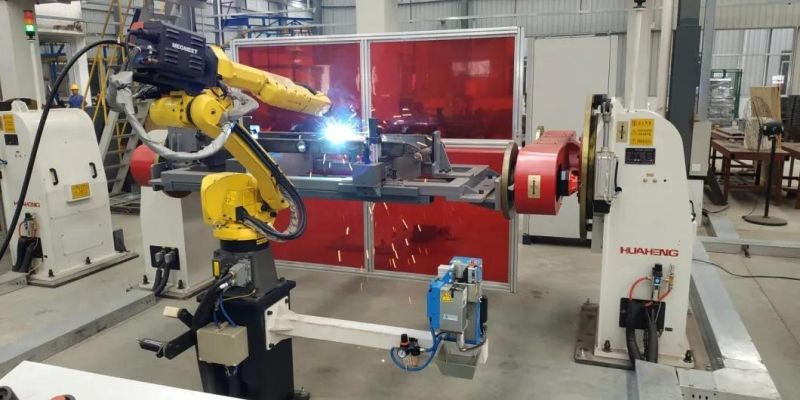

Robotic Welding Technology

1. Seamless Appearance
2. High Strength

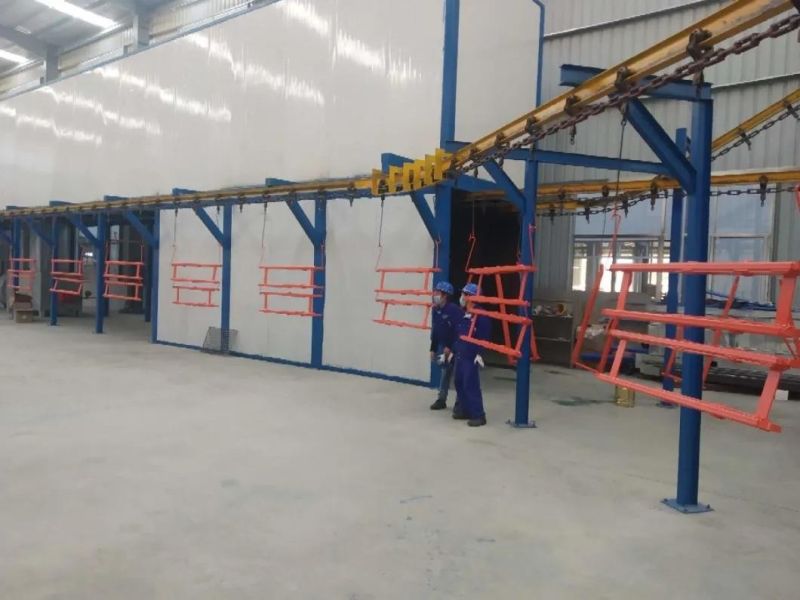

Powder Coating

1. Imported Powder and Sprayers
2. High Adhesion
3. Clear Powdering Effect
4. Aesthetically Smooth Appearance.

Packing and Shipping Examples
2 post lift and 4 post lift are steel frame packed while scissor lifts are packing in ply-wood boxes with steel outlines. The control console are packed in ply-wood boxes.Strong packing guarantees the delivery in perfect condition into your hand.



Standardization is in Our Heart while Certifications are for your Eyes.


Getting Closer to You


FAQ1. Why should I choose EOUNICE car lift?

1. 20 years of techniques research+TUV, CE, ISO9001, CCPC certifications
2. 60,000m² lift production plant
3. Professional cost-effective 50+ automatic machines & production lines
4. Top quality raw materials from the finest plants
5. Competitive prices with higher quality
6. Own factory with stable supply and target for long term cooperation
7. Treat n respect customer as good friends, no matter where they come from.


2. How safe are EOUNICE post car lift?
EOUNICE car lifts have been tested and CE certified for safety . They also meet the American and Australian Standard.

3. Are EOUNICE car lifts designed for commercial use?
All of our lifts can be used in commercial applications without any problems.

4. Do you offer any custom designs?
Sure, EOUNICE provides OEM/ODM services. We can build the molds and fixtures and produce according to your samples or technical drawings.

5. How about your delivery time?
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

6.Does my lift come with the necessary anchor bolts and/or hardware to mount it to the floor?
All EOUNICE lifts are shipped with the necessary anchors required for mounting the unit to your floor.
  7.What is the ceiling height required for a EOUNICE lift?
The required ceiling height depends on the lift model, as well as the intended vehicle. Please refer to the product specification page for each product for further details. Or contact us for advice.
8.Are car lifts available in different voltages?
Other (unlisted) voltages may be available upon request. Voltage options vary between models.

9.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems.
