Guangli New Design High Quality Spray Paint Booth for Car Paintings

GZ GUANGLI EFE CO., LTD.
  • Type:Painting Spray Booth
  • Certification:CCC, CE, CSA, GS, ISO9001
  • Substrate:Steel
  • Brand:Guangli
  • Coating:Powder Coating
  • Airflow Direction:Fully Undershot-type

Base Info

  • Model NO.:GL6-CE-05
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Door Width(M):3.0
  • Door Height(M):2.66
  • Air Flow (M3/H):30000
  • Lighting System:Upper Light and Side Light
  • Filters:High Efficiency Filter
  • Color:Red Blue Orange White
  • Usage:Car Painting Baking
  • Vehical Suited:Saloon Car
  • Warranty:Yes
  • Heating System:Riello Diesel Burner
  • Transport Package:Iron Frame Packing and Carton Packing
  • Specification:panel sandwich style, δ =50mm, polystyrene
  • Trademark:GUANGLI
  • Origin:Guangzhou, China
  • HS Code:84198990
  • Production Capacity:10, 000 PCS,Year

Description

Basic Info.

Model NO. GL6-CE-05 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification panel sandwich style, δ =50mm, polystyrene Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

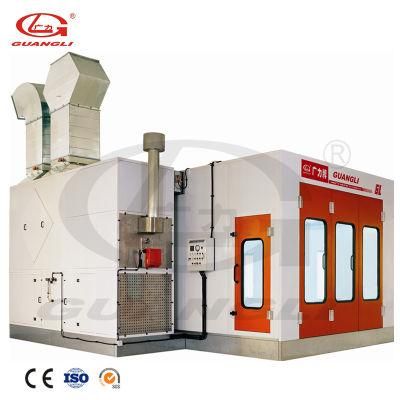

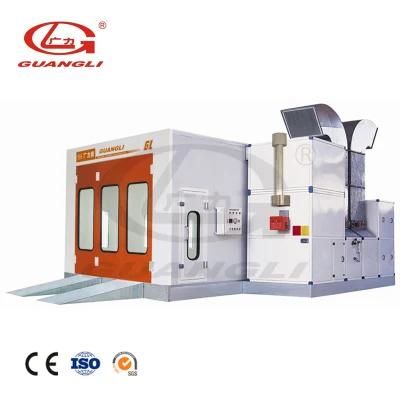

Guangli new design high quality spray paint booth for car paintings

Description

--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One 11kw intake fan and one 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Electrical VCD.One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello /RG5S Burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of air mouth filter.
--Upper light:10sets,4*40w per set.side lights:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking,phase-locking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
ModelGL6-CE
External size (m)7.0x5.6x3.5
Internal size (m)6.9x3.9x2.7
Entrance width(m)3.0
Entrance height(m)2.66
Fan capacity( m 3 /h )30000
Air velocity (m/s)0.3-0.5
Drying Temperature60-80
Oil consumption (L/unit)6-8
Power (kw)25
Suitable Automobile TypeSaloon Car

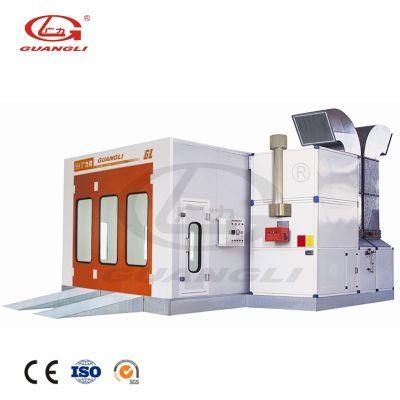

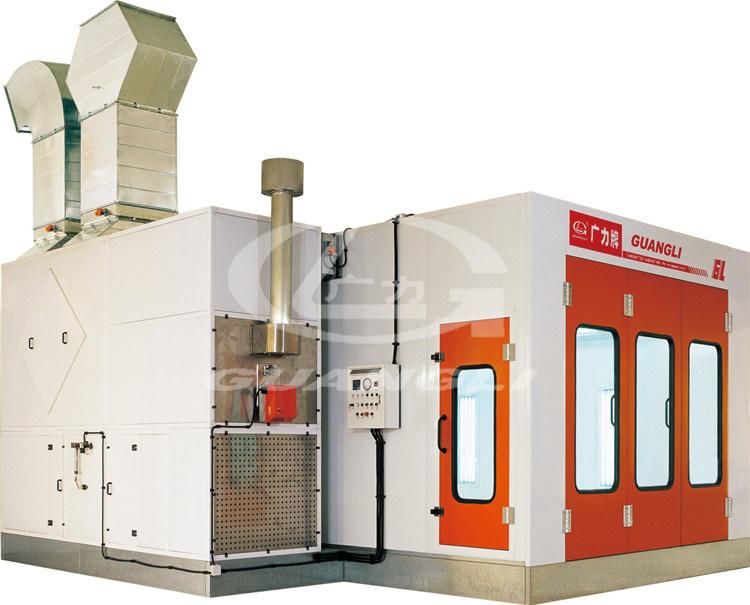

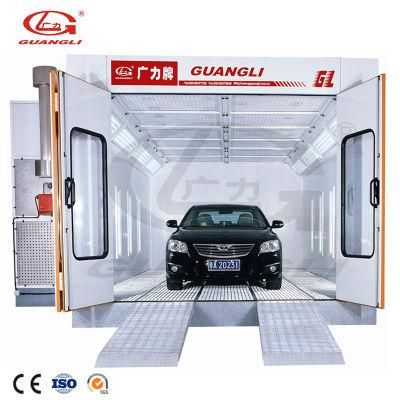

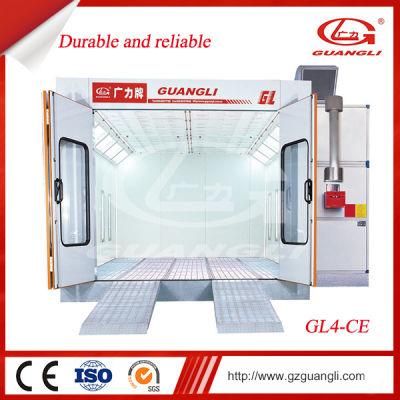

Guangli Spray Booth Show
Guangli New Design High Quality Spray Paint Booth for Car Paintings

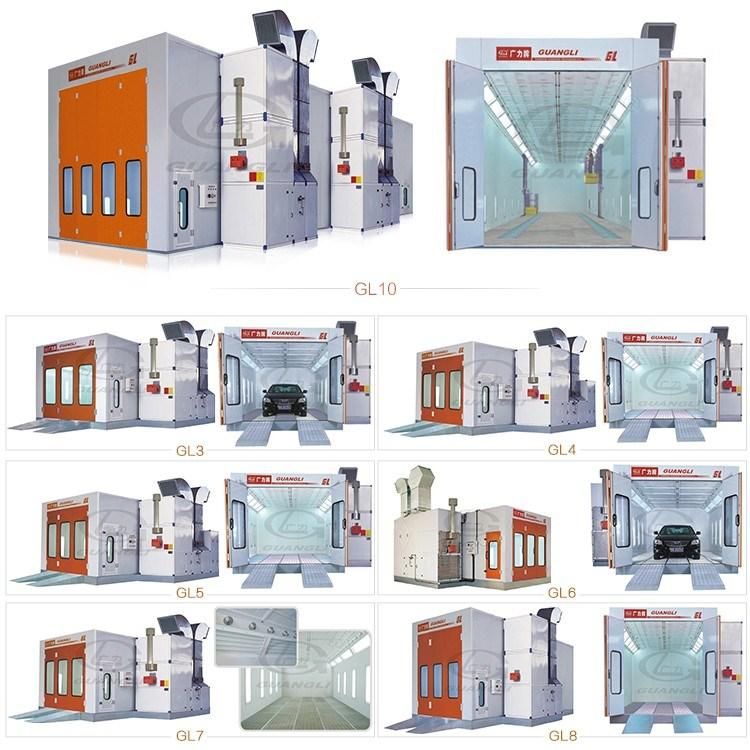

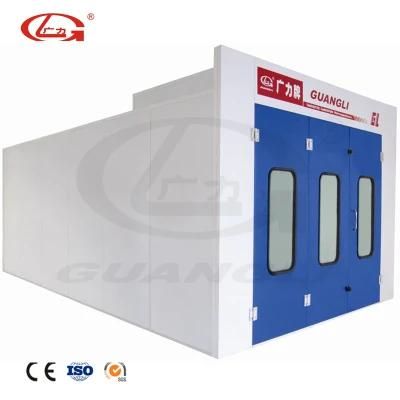

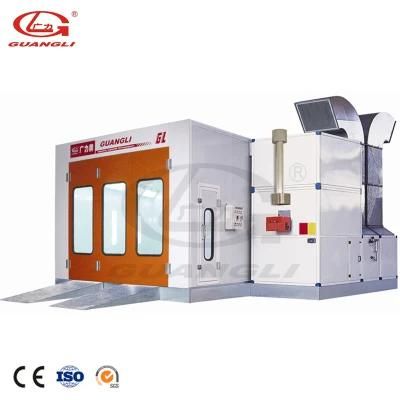

Spray Booth Series
Guangli New Design High Quality Spray Paint Booth for Car Paintings


Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.

Company Profile
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli has our own enterprise headquarters and new factory, which covers 58,000Mof grounding area and 36,000Mof building area.
All our Spray booth,painting booths and car lifts have passed the CE certificate,CCS certificate and our company has passed ISO9001:2000.
Our products have been used in many car manufacturers' and thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.
Guangli New Design High Quality Spray Paint Booth for Car Paintings

Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.
Guangli New Design High Quality Spray Paint Booth for Car Paintings

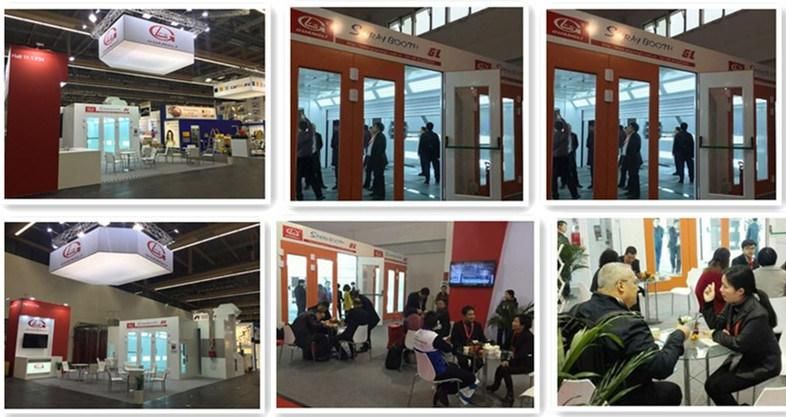

Exhibition

Guangli New Design High Quality Spray Paint Booth for Car Paintings
Guangli New Design High Quality Spray Paint Booth for Car Paintings

Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.


Warmly welcome to Contact:
Sunnie Di
Tel:+86-20-86378972
Mobile/:+8613925061383
Website:gzguangli.en.made-in-china.com
