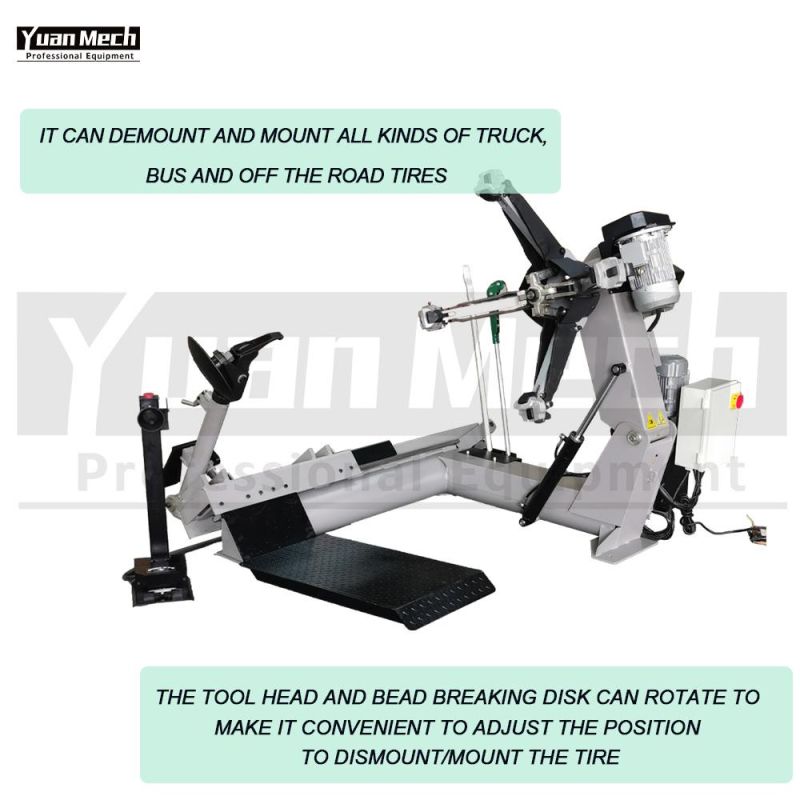

Semi Automatic Heavy Duty Tire Changer of Truck Repair Equipment

Yingkou Yuanmech Machinery Co., Ltd.
  • Warranty：14 Months
  • Structure：Horizontal

Base Info

  • Model NO.：TC-856
  • Power Source：Pneumatic
  • Type：Simple Disassembly
  • Automatic：Semi-Automatic
  • Standard：Standard
  • Certification：CE
  • Condition：New
  • Product Name：Tire Changer of Truck Repair Equipment
  • Working Pressure：130bar
  • Outside Clamping：10-46"
  • Keywords：Truck Tire Changer Machine
  • Certificate：CE
  • Max. Wheel Diameter：2300mm
  • Bead Breaker Force：2800kg
  • Color：Customized Color Acceptable
  • Packing：2030*1590*940mm, 3.03cbm
  • Usage：Truck Tire Repair Machine
  • Delivery Time：7-15days
  • Rim Diameter：14 -46"
  • Power：1.5 Kw
  • Weight：770 Kg
  • Maximum Tire Width：1065mm
  • Transport Package：Plywood
  • Specification：2030*1590*940mm
  • Trademark：YuanMech
  • Origin：Yingkou, Liaoning, China
  • HS Code：8479899990
  • Production Capacity：3000PCS,Month

Description

Basic Info.

Model NO. TC-856 Power Source Pneumatic Type Simple Disassembly Automatic Semi-Automatic Standard Standard Certification CE Condition New Product Name Tire Changer of Truck Repair Equipment Working Pressure 130bar Outside Clamping 10-46" Keywords Truck Tire Changer Machine Certificate CE Max. Wheel Diameter 2300mm Bead Breaker Force 2800kg Color Customized Color Acceptable Packing 2030*1590*940mm, 3.03cbm Usage Truck Tire Repair Machine Delivery Time 7-15days Rim Diameter 14 -46" Power 1.5 Kw Weight 770 Kg Maximum Tire Width 1065mm Transport Package Plywood Specification 2030*1590*940mm Trademark YuanMech Origin Yingkou, Liaoning, China HS Code 8479899990 Production Capacity 3000PCS/Month

Product Description


Semi Automatic Heavy Duty Tire Changer of Truck Repair EquipmentChina Factory Supplier Semi Automatic Heavy Duty Tire Changer of Truck Repair Equipment
Applicable for changing truck and bus tyres whose rim diameter between 14"-26".Semi Automatic Heavy Duty Tire Changer of Truck Repair EquipmentSemi Automatic Heavy Duty Tire Changer of Truck Repair Equipment
ModelTC 826 Truck Tire Changer
Rim diameter14"-46"
Max tire weight1500kgs
Max wheel diameter2300mm
Max wheel width1065mm
Working pressure130bar
Working voltage380V/220V/110V
Gear box motor1.3/1.5kw
Hydraulic motor1.5kw
Packing2030*1590*940mm
 Semi Automatic Heavy Duty Tire Changer of Truck Repair EquipmentSemi Automatic Heavy Duty Tire Changer of Truck Repair EquipmentSemi Automatic Heavy Duty Tire Changer of Truck Repair Equipment
Semi Automatic Heavy Duty Tire Changer of Truck Repair Equipment



1. Why is filter-regulator (FRL) so important?
It dry the air so there is no moisture inside pneumatic components. It lubricates the rubber seals to extend its service life. In general FRL is important to maintain long service life of the machine.
2. When working table doesn't turn, how to determine if the problem comes from gearbox, motor or switch?
Disconnect belt and see if the motor can run properly. If not, test the motor itself to see clockwise rotation and anti-clockwise rotation. If motor running properly then the problem is the switch.
We have trouble shooting in details, please contact us for more information.
3. When working table doesn't have needed power to clamp the rim, how to trouble shooting if the problem comes from table cylinder, turning air distributor or pedal valve?
When the cylinder not strong enough, there could be air leaking. The leaking could be on the covers or internal piston. There is a systematic method to trouble shoot, please contact us if you are interested in how to trouble shoot.
