• Model NO.：FM-3000S
• Testing Pumps：Bosch, Denso, Delphi, Siemens
• Testing Injectors：Bosch, Denso, Delphi, Siemens
• Pressure：0-2000bar
• Test Data：Rich Data, Access to 1700PCS
• Color：Green, Yellow, Red, Blue
• Display Monitor：Computer Display
• Transport Package：Plywood Box
• Specification：ISO CE
• Trademark：12PSDW FOTMA
• Origin：China
• HS Code：9031809090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. FM-3000S Testing Pumps Bosch, Denso, Delphi, Siemens Testing Injectors Bosch, Denso, Delphi, Siemens Pressure 0-2000bar Test Data Rich Data, Access to 1700PCS Color Green, Yellow, Red, Blue Display Monitor Computer Display Transport Package Plywood Box Specification ISO CE Trademark 12PSDW FOTMA Origin China HS Code 9031809090 Production Capacity 5000PCS/Year

Product Description

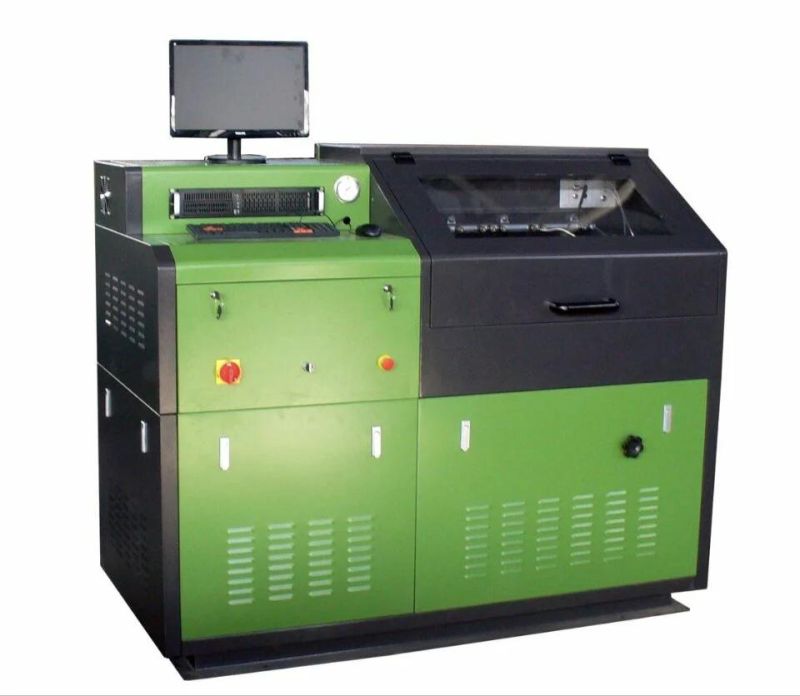

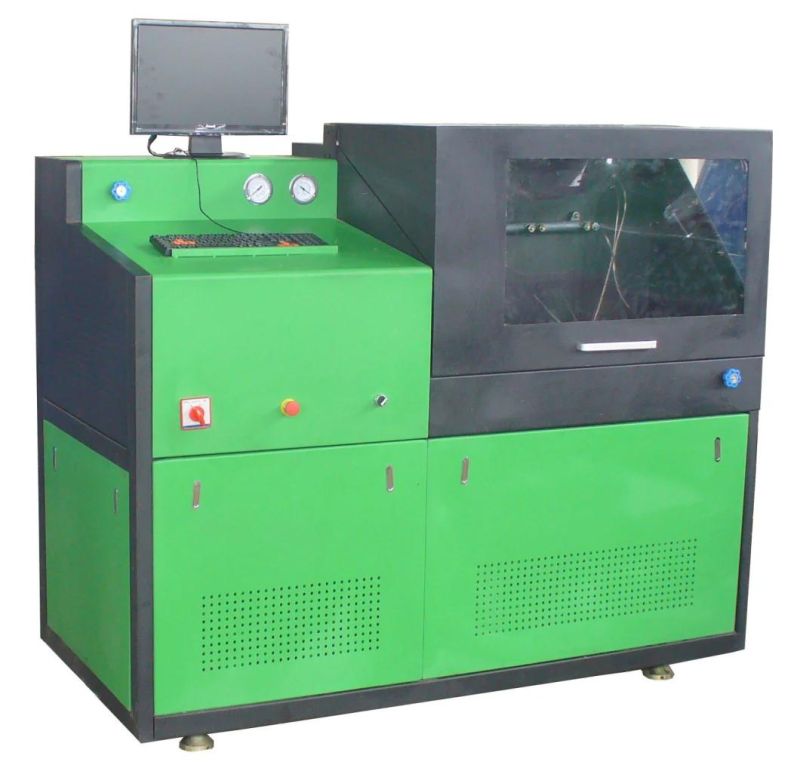

FM-3000S Diesel System Common Rail Injector Pump Test Bench

FM-3000S Common Rail System Test Bench, 7.5kw, 380V/50Hz, 8 cylinders, WINDOWS
Operation system, LCD screen, oil measure digital display, support BOSCH, DELPHI, DENSO
System, with Bosch date base for testing reference, can test 4PCS common rail injectors at at a time,
Cleaning nozzle

Description

FM-3000S COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing. Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.

System Application:

The system is suitable for detection of BOSCH, DENSO, DELPHI common rail pump and injectors. Such as CP1, CP2, CP3, HP3 series injector pump and the type of Electromagnetic injectors. It also can test 4 common rail injectors in one time.

Technical parameters
1. Main motor speed: 0-4000 r/min, can be adjustable
1. Motor power: 7.5kw, 11kw, 15kw, 18.5kw optional
2. Fuel Injector open voltage
Control range: 12V, 80V, 150V
Control accuracy: Phase adjustment
3. Injector opening frequency control: 0-1000Hz
Control accuracy: 1Hz
4. Fuel injector hold time
Control range: 0-65535us
5. Delivery oil count
Control times: 0-1000times
Control accuracy: 1 times
7. Fuel pressure control: 0-2000 bar
Control accuracy: 1bar
8. Electronic power: 3 phase 380V / 3 phase 220V optional
Main Functions:
1. Detection of the common rail injectors: Clean, pre-injection, main injection, the maximum injection, minimum( start)spraying, return oil quantity.
2. Cleaning of nozzles.
3. Detection: Common rail pressure sensor, pressure regulator.
4. Testing environment: Oil temperature regulation, counting measure, adjust the common rail pressure, also can adjust the injection pulse width and duty cycle.
5. Support system: BOSCH, DELPHI, DENSO.

Packing List:

Item no.	Name		Model	Qty	Unit
1	FM-3000S III, Common Rail System Test Bench		FM-3000S	1	unit
2	High-pressure oil pipe		M14*M14*450	1	pcs
3	High-pressure oil pipe		M12*M14*450	1	pcs
4	Oil Selector		Φ7	1	pcs
5	Oil Selector		Φ9	1	pcs
6	Main cables			1	pcs
7	Secondary cables			4	pcs
8	Air hose		Φ6	2	m
9	Air hose		Φ12	1	m
10	Reture oil connector		Φ6	1	pcs
11	Reture oil connector		M8	1	pcs
12	Oil Pump CP1		CP1 Bosch	1	pcs
13	Angle Iron			1	pcs
14	Couplings		II	1	pcs
15	Couplings		III		pcs
16	Monitor			1	set
17	Common rail fuel rail			1	pcs
18	DRV			1	pcs
19	Input oil pipe		M20×1.5×1200	1	pcs
20	Return oil pipe		M20×1.5×1200	1	pcs
21	T-screw			2	pcs
22	Nut			1	pcs
23	HP0 Block		HP0	1	pcs
24	Common rail injector holder			1	set
25	12pcs/set common rail adaptor			1	set
