• Model NO.：EPS915
• Delivering Method：Sea Shipping
• Production Time：20-25 Working Days
• Gurantee：One Year of Free Maintenance for Overall Unit, EQ
• Advantage：Includes Two Monitor Screens and Two Sets Software
• Function：6PCS Injectors Could Be Tested at The Same Time.
• Spare Parts of Test Bench：Have Stock
• Brand：Nant

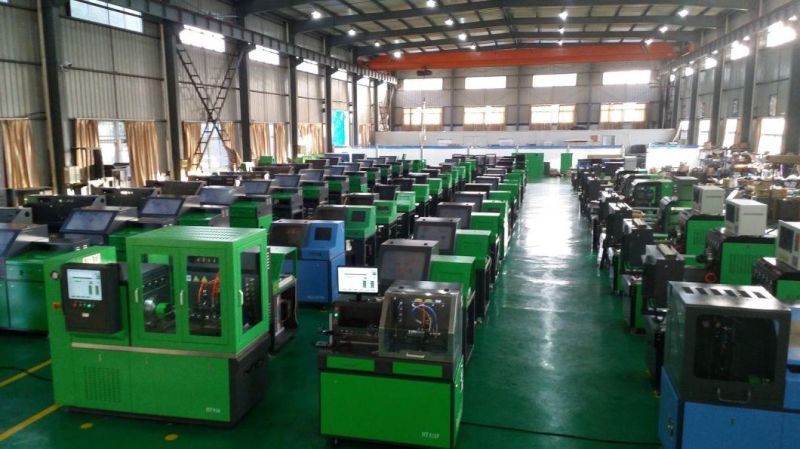

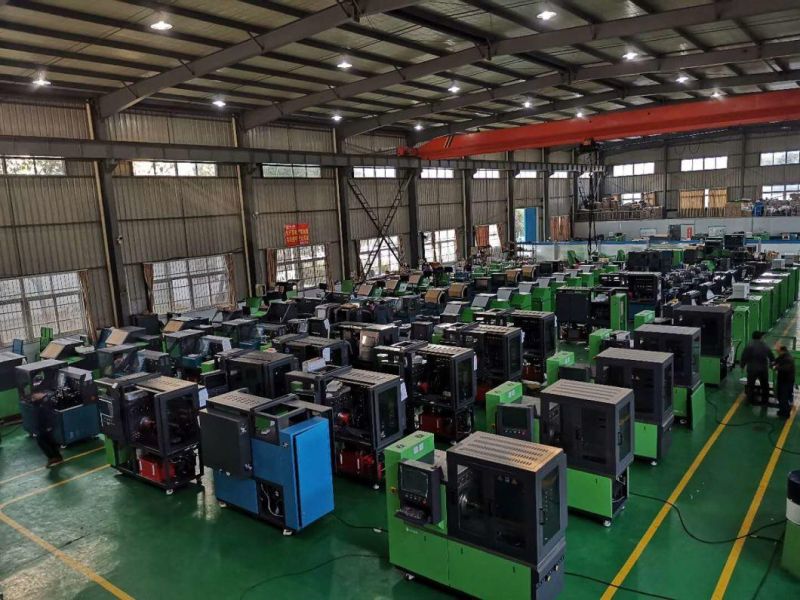

• Factory：Real Strong Manufactory
• HS：9031200090
• Transport Package：Plywood Box
• Specification：205CM*105CM*175CM; 1200kgs
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. EPS915 Delivering Method Sea Shipping Production Time 20-25 Working Days Gurantee One Year of Free Maintenance for Overall Unit, EQ Advantage Includes Two Monitor Screens and Two Sets Software Function 6PCS Injectors Could Be Tested at The Same Time. Spare Parts of Test Bench Have Stock Brand Nant Factory Real Strong Manufactory HS 9031200090 Transport Package Plywood Box Specification 205CM*105CM*175CM; 1200kgs Trademark NANT Origin China HS Code 9031200090 Production Capacity 1000 Sets/Year

Product Description

Popular Type Common Rail Tester EPS915
Popular Type common rail tester EPS915 is developed on the basis of BOSCH EPS708.The test
bench has been put into the market for ten years.In ten years, we improved product technology and upgraded equipment software.This test bench have been recognized by customers all over the world.

Injector test

1. Fully automatic detection of BOSCH, DELPHI, DENSO, SIEMENS and other brand models of electromagnetic injector and piezoelectric injector.Automatically test different models solenoid valve injectors and piezo injector

2. Test the performance of injector solenoid valve.
3. Generate IMA code for Bosch injector
4.Cleaning: High pressure cleaning for the impurities inside the injectors.
5.Testing the injection and return volume under VL TL LL VE and VE2 status.
6.Atomization test: to judge whether the injector is blocked through the atomization effect.
7.Sealing test: check whether nozzle nozzle cap nut and solenoid valve leaks oil.
8.Test solenoid valve injectors of different models automatically and test 6 injectors continuously.

Pump test:
1. Automatically test all high-pressure common rail pumps.
2. Fully automatic detection of DENSO HP0 pump.


Characteristics:
1.Industrial Air-conditioner, Double temperature control stainless steel tank  to keep the oil temperature controlled at 40±2ºC.
2.Equipped with original Bosch common rail system. The rail pressure is controlled by DRV and ZME valve at ±0.5 Maps.
3.Equipped with Germany flow sensor the flow range is 0.008-4L/Min the test precision is 0.3%.
4.Equipped with original Bosch CP3.3 pump.
5.The range of rail pressure is 0-2600bar with precise measurement easy operation low noise and energy conservation.
6. Lubrication oil system: ensure the stability of the tested parts.



Features

1. Full automatic operation with Windows XP system.
2. embedded industrial computer system: high speed operation and stable performance.
3. Original Bosch test bench database to ensure the test precision.
4. Powerful database of over 3000 kinds of Bosch Delphi Denso and Siemens injectors and pumps.
5. Separate management of injector and pump database with memory function. The database can be edited saved modified and regularly updated.
6. Users can choose to take the automatic judgment by computer or by themselves.
7. Self-protection under overheat oil mist over pressure and low oil level. It will be showed by the indicator lamp.
8. Support multi-language version such as Chinese English German Spanish French Russian etc.
9. Remote control is convenient for service and software upgrade.
10. Support customized products and application.

Selection function
1.Automatically test VP37 and VE37 ,VP44 pump
2. Bosch Denso, Delphi IMA code;
3. commmon rail injection response time test;
4. Six injectors can be test at the same time
