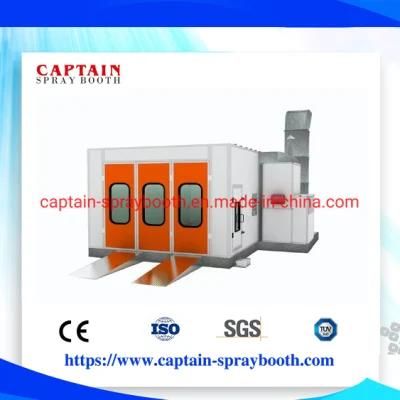

• Model NO.：AUZ-WY2001
• Certification：CE, GS, UL, ISO
• Substrate：Steel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7050 * 5400 * 3250mm
• Inside Dimension：6900 * 3900 * 2600mm
• Front Door(mm)：2800*2500(W*H)
• Service Door (mm)：1800*650(W*H)
• Wall Panel：75mm EPS Panel, 0.5mm Steel
• Basement：300mm Depth with Grids
• Ramp：Two 2000*900mm Ramps
• Heating Burner：Riello G20 Diesel Oil,Gas Burner
• Water Based Paint Drying：20 Air Nozzles, 10 on Each Corner
• Air Intake：2 Sets 4kw Centrifugal Fan
• Air Exhaust：1 Set 5.5kw Centrifugal Fan
• Air Speed：0.3-0.35m,S
• Ventilation Type：Full Downdraft
• filter Type：Dry
• Total Power：15kw
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：Captain,OEM
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

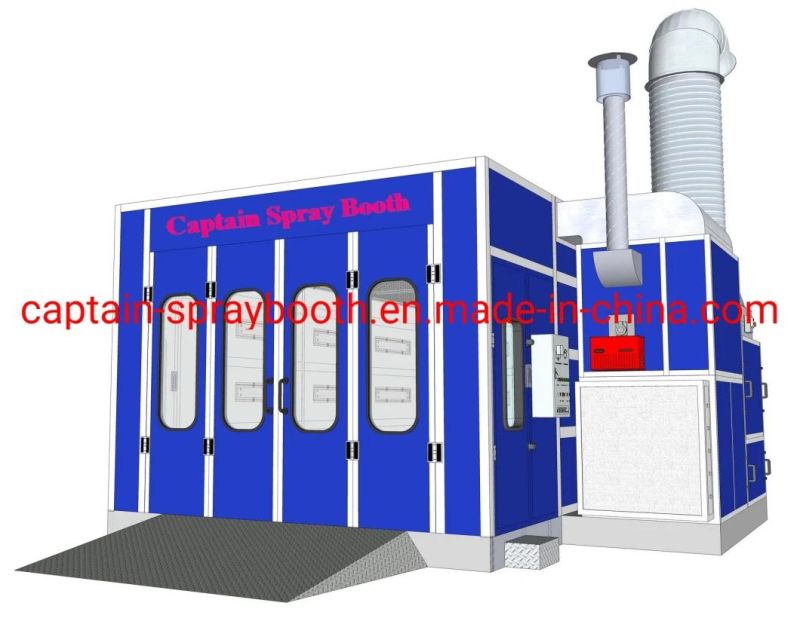

7050 * 5400 * 3250(L*W*H)Inside Dimension(mm)6900 * 3900 * 2600(L*W*H)Front Door(mm)2800*2500(W*H)Service door (mm)1800*650(W*H)Total Power15KWCabin systemWall panel 75mm EPS panel, double face steel sheet thickness: 0.5mm
 Ceiling panelGalvanized steel sheet.
 Basement300mm depth, patented circumferential diamond plate design, middle with grids.
 Ramptwo 2000*900mm rampsAir Make-up SystemAir Inlet fan system2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h.
 Exhausted fan system1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h.
 Air Flowing speed0.45 m/s in empty booth, 0.35 m/s when painting.
 Exhausted ducting3 meters air duct, one flop damper, one weather hood, one anti-bird mesh
 Water based paint drying system20 pieces of air nozzles,10 pieces of nozzles on each corner for drying the Water Based Paint, 2×0.35KW air fans.Purification SystemPre-filterG3 grade, Air Inlet filter
 Ceiling filterEU5 / F5
 Floor filterGreen fiber glass filter / G3 grade
 Exhausted fan FiltersFiber glass filter.Heating SystemHeat ExchangerSUS304 material, argon arc welding.
 Heating burner:      Riello G20 diesel oil burner(gas burner for option)
 Heating productivity                           200000Kcal/h
 Chimney ducting2 meters stainless ducting and one chimney elbow
 Max heating temperature
Heating time80 degree centigrade
4-6min(20-60 degree centigrade)
 fuel consumption5-6L /vehicleLighting SystemCeiling lights8 Units, each 4 x 36W lamps, Total 1152 W
 Side lights8 Units, each 4 x 20W lamps, Total 800 W
 Illumination1200LUXControlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm

Basic Draw----we can make draw according to your need and your installation place


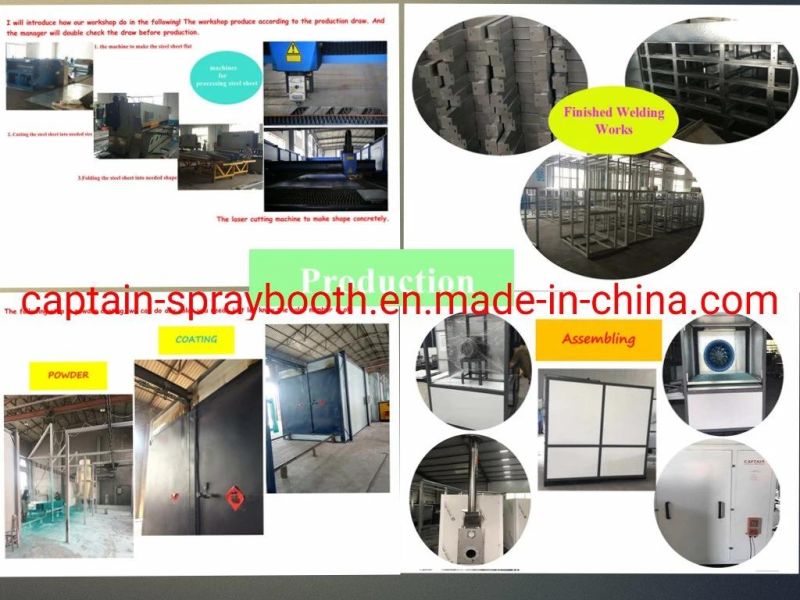

Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

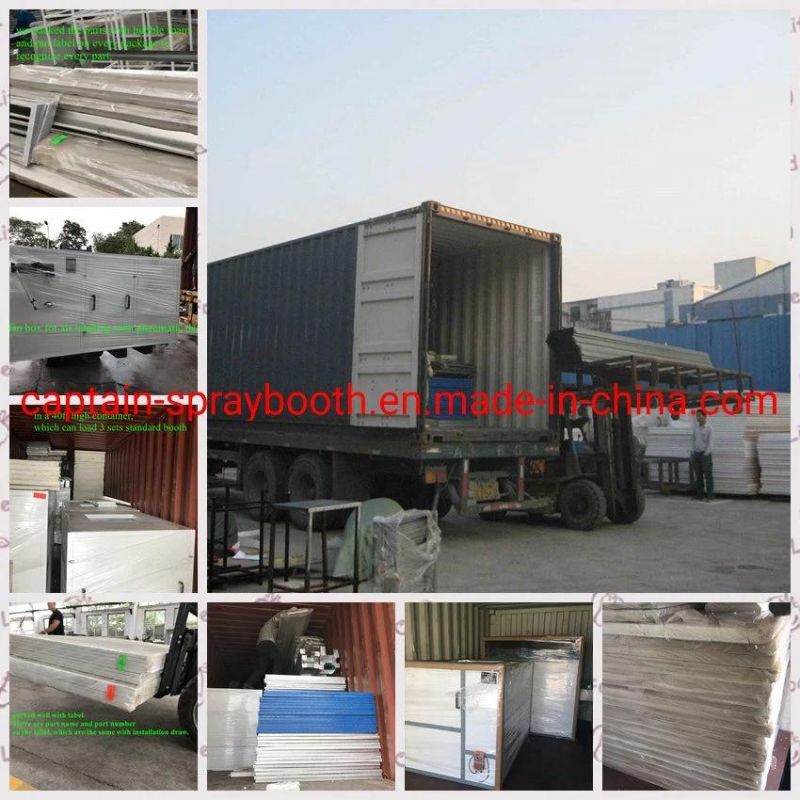

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.

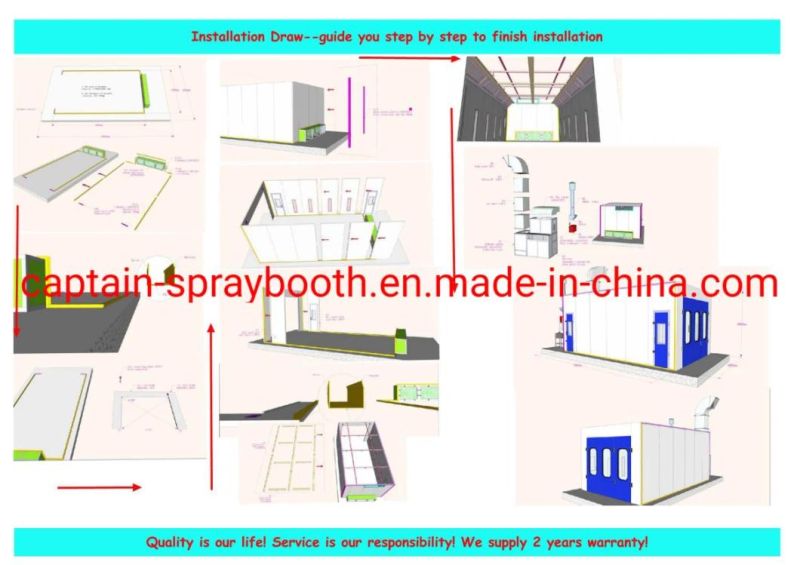

Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

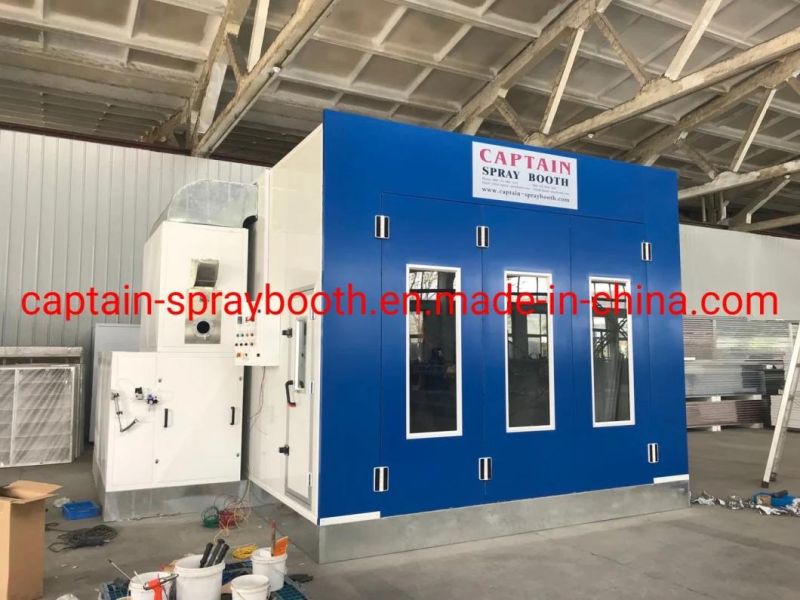

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

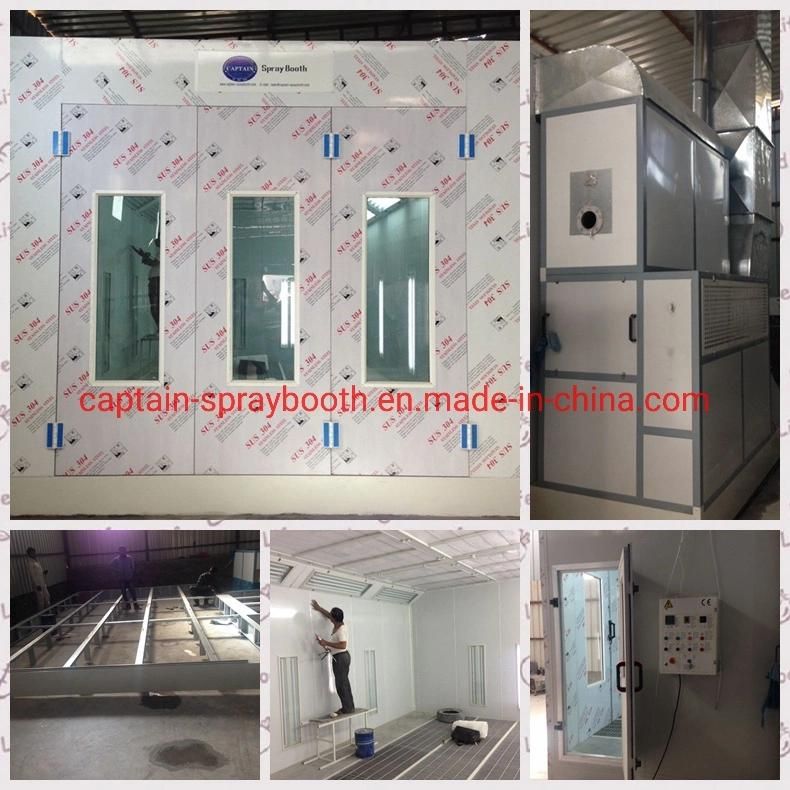

The installed models by our customers

Parts

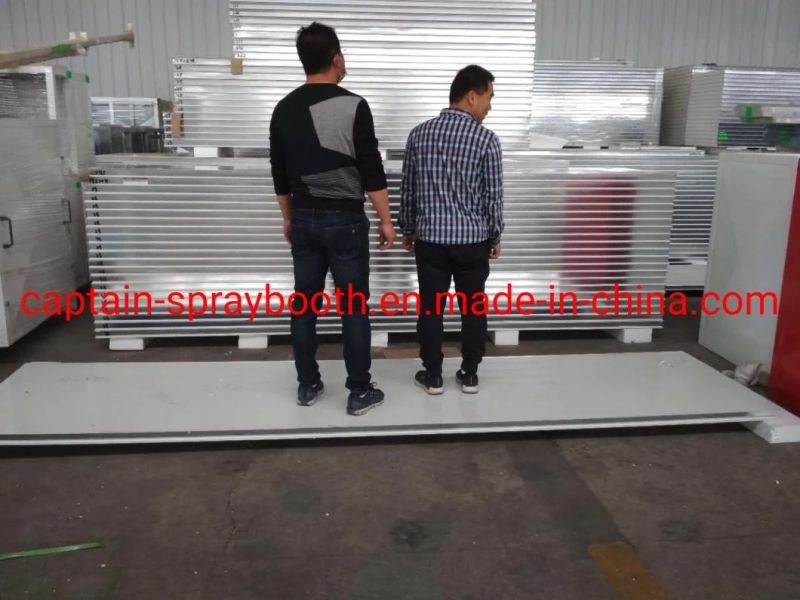

High desensity wall panel, two men stand on it, it will not bend.

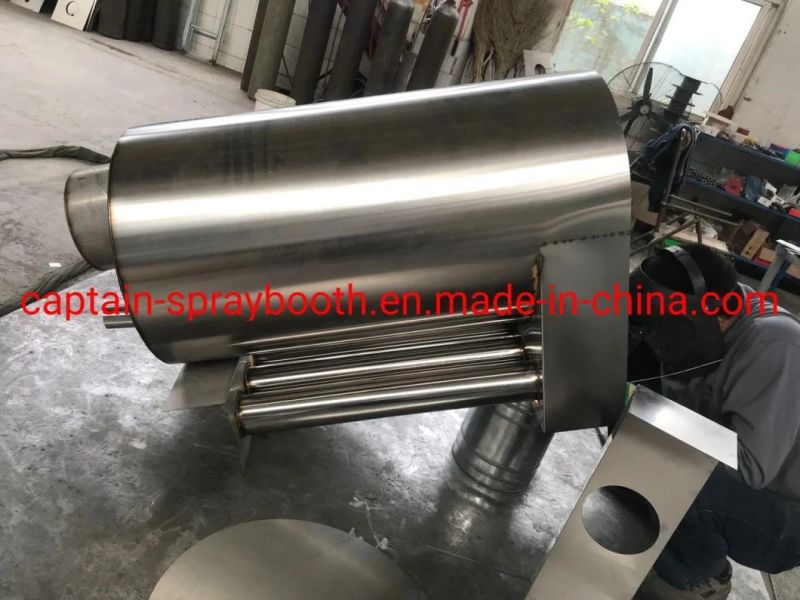

Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.

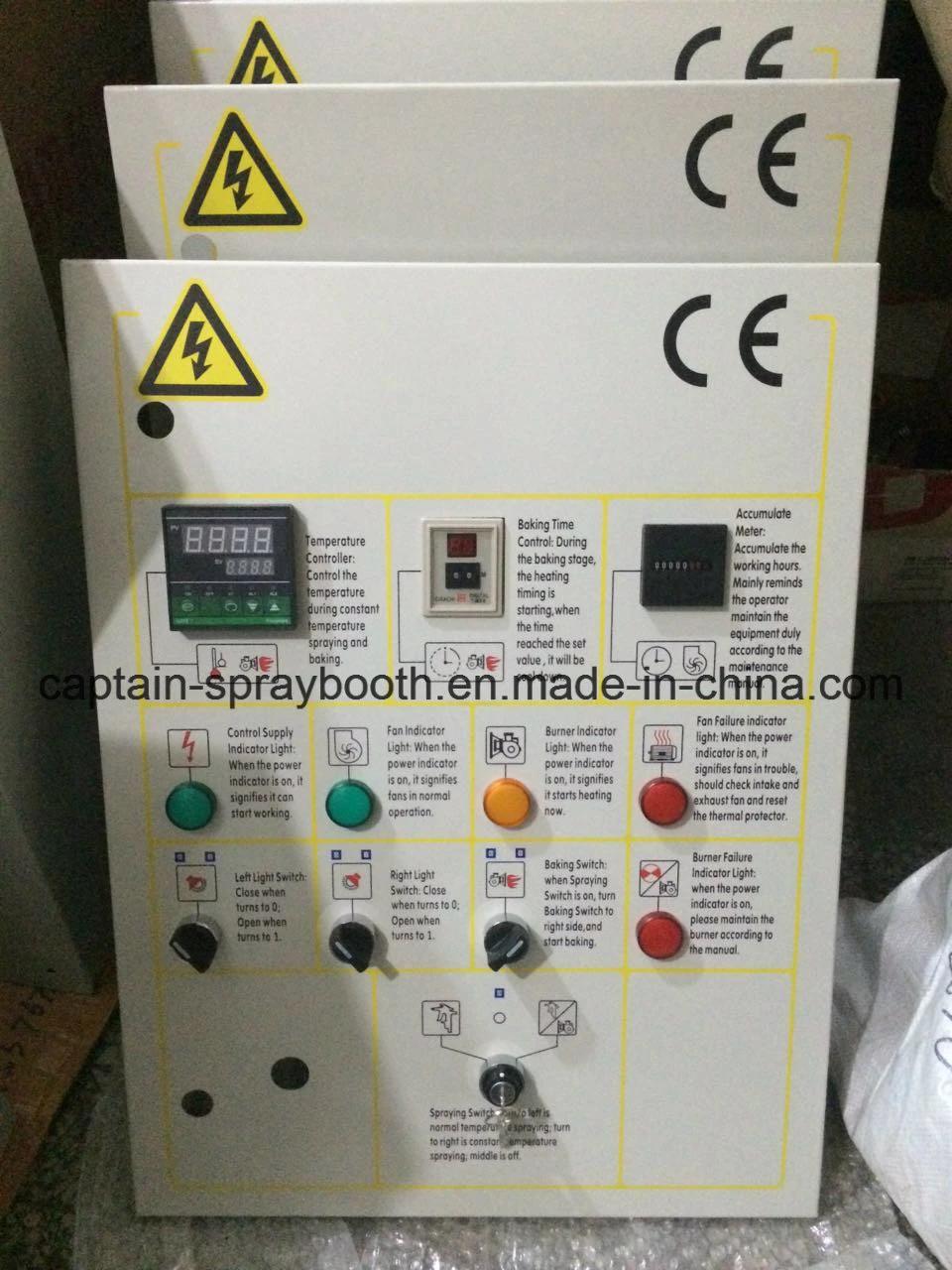

Our control box is with SCHNEIDER parts


Different Colors for your choice

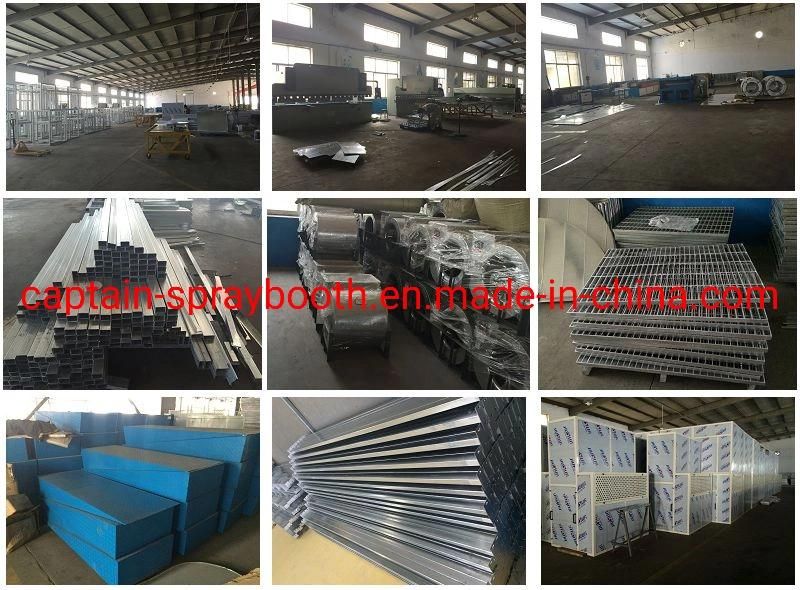

Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery
