• Model NO.：C-400A
• Paint Mist Treatment：Dry-type
• Condition：New
• Intake Fan：2*4kw
• Transport Package：Container loading
• Trademark：Sunrise
• Origin：China
• HS Code：84178090
• Production Capacity：100 per year

     Model                                                              C-400ABooth DimensionInside:7000  x 4000 x  2800mm (L x W  x H) mmOutside:7000 x 4120  (5670) x  3600mm (Lx  W x H)mmBooth SystemEntrance Door:3-fold main entrance door, 3000 x 2700mmPersonnel Door:one personnel door, 800 x 2000mm  (W x H)
 with pressure latch and automatic door closerWall Panels:Pre-painted steel sheet,                                                                      double skinned with 60mm thick  polystyrene insulationRoof Panels:Pre-painted steel sheet,                                                                        double skinned with 45mm thick  polystyrene insulationBasement & Floor:300mm high raised metal-base,                                                           fully arranged grating floorRamps:4 drive in ramps (each 750x2000mm)Lighting SystemCeiling light:8 units upper inclined lights,                                                            each with 4x36w light tubes.                            Side light:6 units 4x36w vertical side wall lights;    Air Makup SystemIntake:2 double-intake centrifugal fans,                                                       air capacity 25000cmh,                                                                        belt drive, 2x4kw motors,                                                                     motorized air flow damperExtract:1 double-intake centrifugal fan,                                                           air capacity 25000cmh,
  belt drive, 1x7.5kw motor,                                                  motorized air flow damperStructure:Aluminum frame structure, colored steel plateHeating SystemBurner:Famous Italy brand Riello RG5S  oil burner,                      heating capacity 260000Kcal/hHeat exchanger:High efficiency Stainless heat exchangerTemperature:80 degree working temperatureFilter System4 sorts of filters:Pre-filter, ceiling filter, floor paint-stop filter,
extract paint-stop filterControl System Switched
control box:Reliable components, digital temperature readout, spray and bake temperature settings, bake timer, spray and bake switch, automatic pressure gauge, hour meter, emergency stop, safety thermostat, failure alarm.

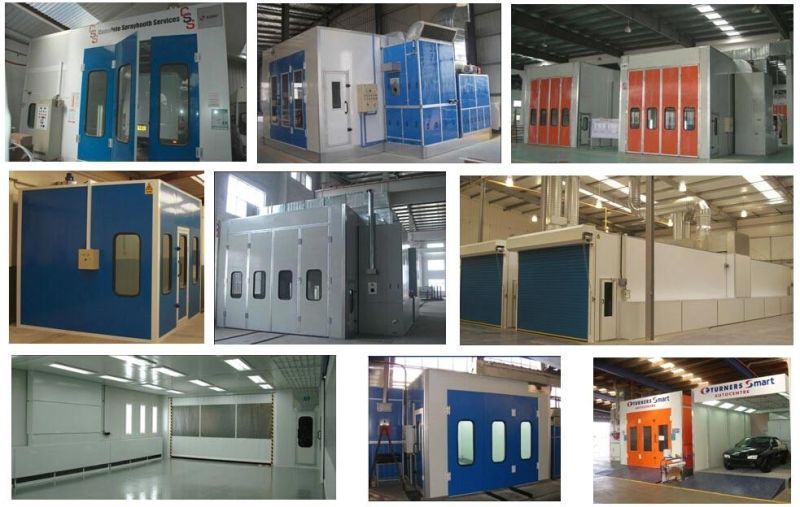

CASES:
