• Model NO.：UVL-F-730
• Design：Scissor
• Platform：1075*730mm
• Loading：350kg
• Dimension：1110*1130*130mm
• Max Lifting Height：670mm
• Drive Mode：Electric,Hydraulic
• Volt：12V or 24V
• Transport Package：Plywood Case
• Specification：170kg
• Trademark：Xinder
• Origin：Cn
• HS Code：8428909090
• Production Capacity：5000,Year

Basic Info.

Model NO. UVL-F-730 Design Scissor Platform 1075*730mm Loading 350kg Dimension 1110*1130*130mm Max Lifting Height 670mm Drive Mode Electric,Hydraulic Volt 12V or 24V Transport Package Plywood Case Specification 170kg Trademark Xinder Origin Cn HS Code 8428909090 Production Capacity 5000/Year

Product Description

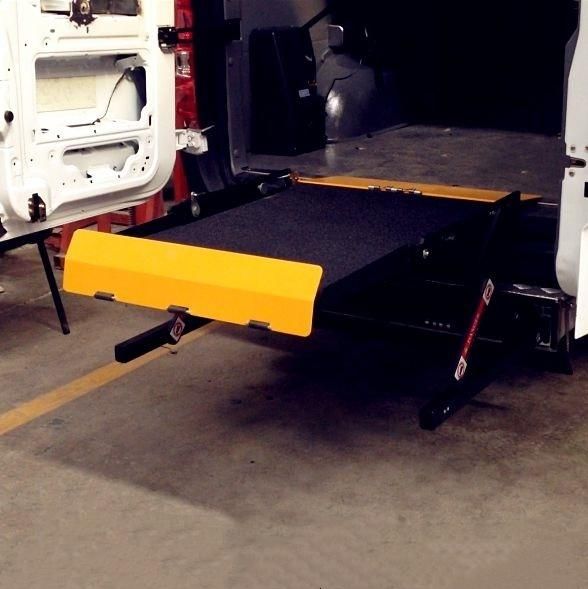

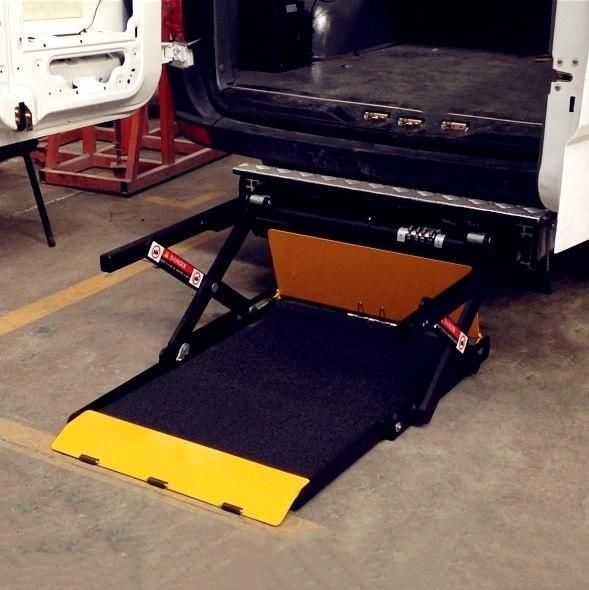

UVL-F-730 wheelchair lift
for commercial vehicles rear door

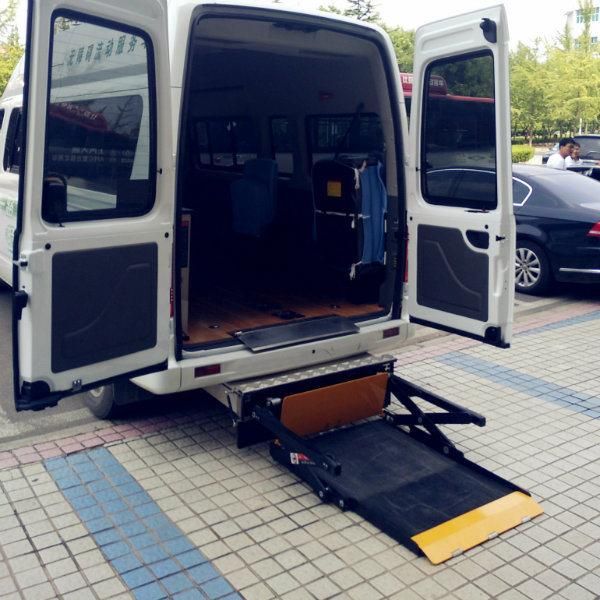

Installed under chassis of commercial vehicles rear door.

The UVL-F offers an innovative solution to your mobility.
It is designed for installation at the rear door of domestic full-size vans, minibuses.
It stays out of sight and out of your way when not in use
the mounting depth requested is only 1085mm, Max loading capacity reaches 350kg.
Controlled by a wired remote control.



Advantage
Compact design with smaller frame;
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
Loading capacity can be 350KG;
CE certified;

Technical:
voltage: 24/12V
Power: 800W
Loading capacity: 350Kg

T
