Cross Draft Industrial Paint Drying Booth
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Cross-flow Type
- Heating Mode：Diesel
Base Info
- Model NO.：IT-L6B
- Paint Mist Treatment：Dry-type
- Condition：New
- Walls：50mm Rock Wool Panel
- Illumination：>1,000lux
- Fan：Direct-Drive
- Motor：5.5kw
- Air Volume：18,000m3,H
- Empty Loaded Air Speed：0.45m,S
- Noise：<80dB
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：6000*4000*2650mm(L*W*H)
- Trademark：INFITECH
- Origin：China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
Spray Booth - Cross draft airflowITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions 6000 X 4000 X 2650mm (L X W X H) External dimensions 8780 X 4110 X 3350mm (L X W X H) Entrance door 1 set, 3400 X 2150 mm (W X H) Ceiling lighting (LED) 8 sets, each 4 X18W, 576W total Sidewall lighting (LED) 6 sets, each 2 X 8W, 96W total Brightness >1,000LUX Filters Pre-filter, high efficiency filter, floor-level filter, exhaust filter Air intake Direct-type turbine fan, 5.5KW CE motor Air exhaust Direct-type turbine fan, 5.5KW CE motor Air volume 18,000m3/h Empty loaded air speed +/-0.45m/s Air exchange times 4 times/min Maximum working temperature 80ºC Heat exchanger power 232KW Burner (Max. calorific value) RIELLO diesel burner RG5D (two stage) Controls CE standard control box Rated power 13KW ITEMS SPECIFICATIONS Internal dimensions 3110 X 4000 X 2800mm (L X W X H) External dimensions 3220 X 4110 X 2850mm (L X W X H) Entrance door 1 set, 800 X 2000 mm (W X H) Ceiling lighting (LED) 3 sets, each 4 X18W, 216W total Brightness >800LUX Filters Pre-filter, exhaust filter Air intake Natural air intake Air exhaust Direct-type turbine fan,1.5KW, CE motor Air volume 3,500m3/h Controls CE standard control box Rated power 2KW
4) Packaging and Loading

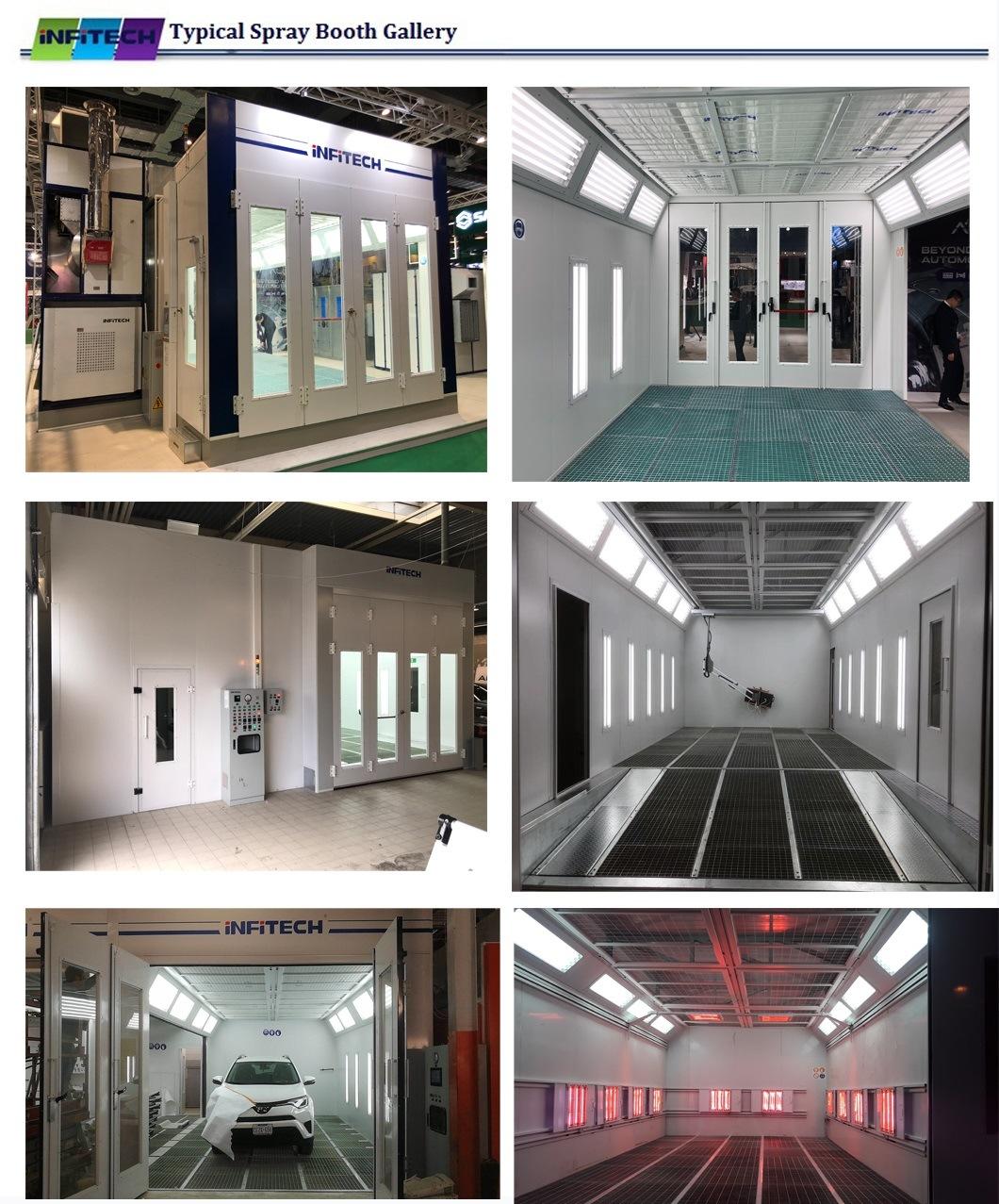

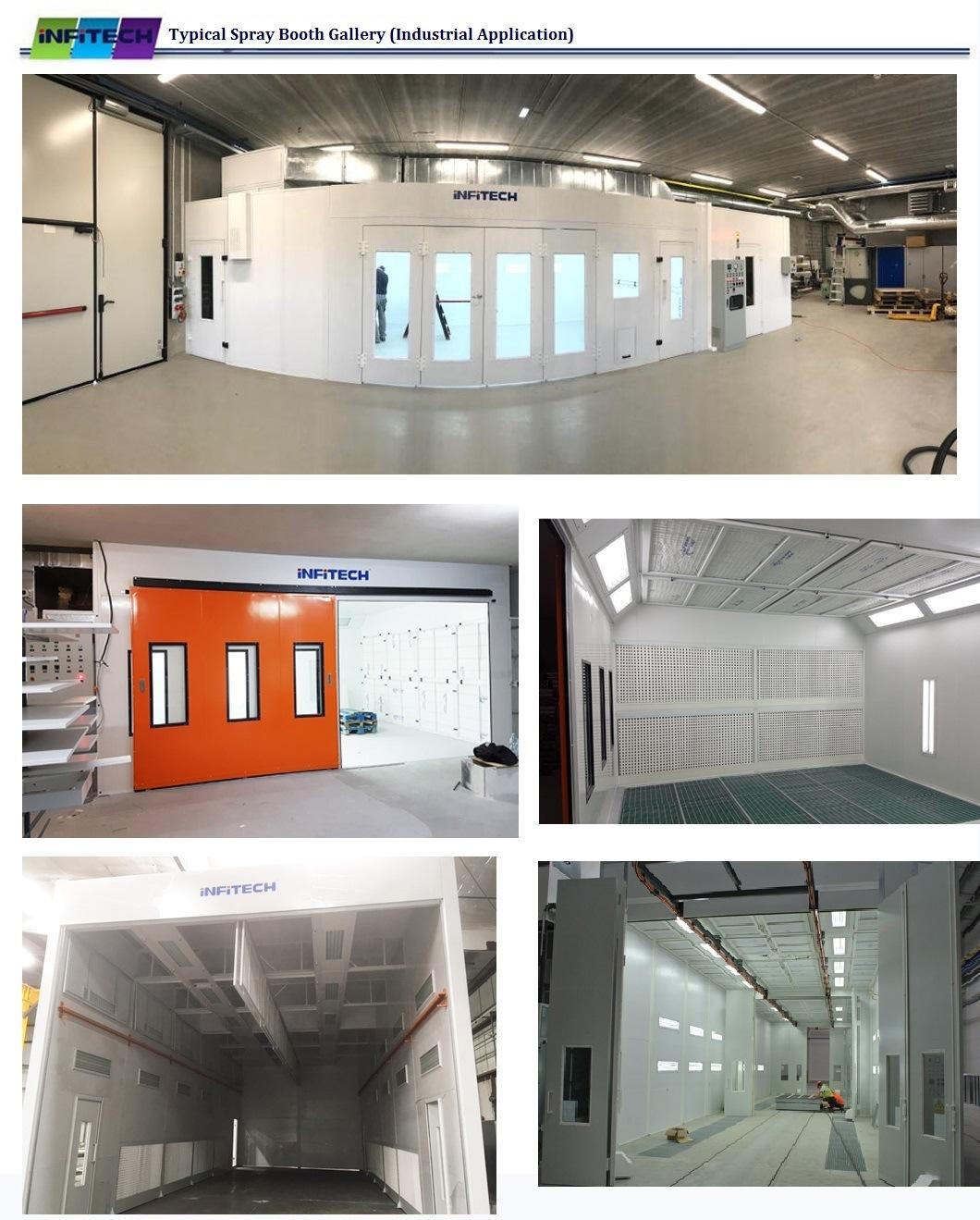

5) Engineering cases

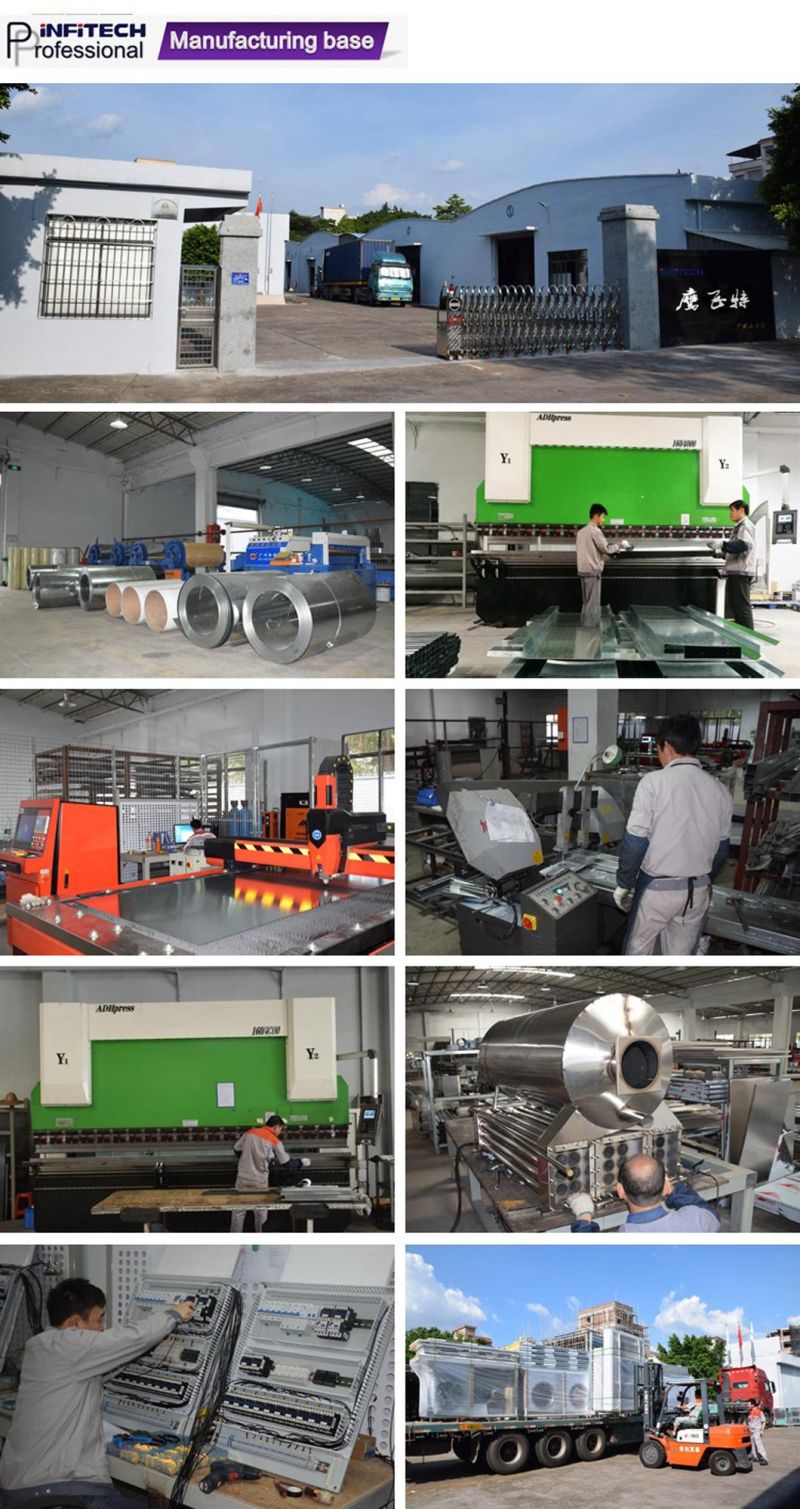

6) Company information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit customers' individual needs.

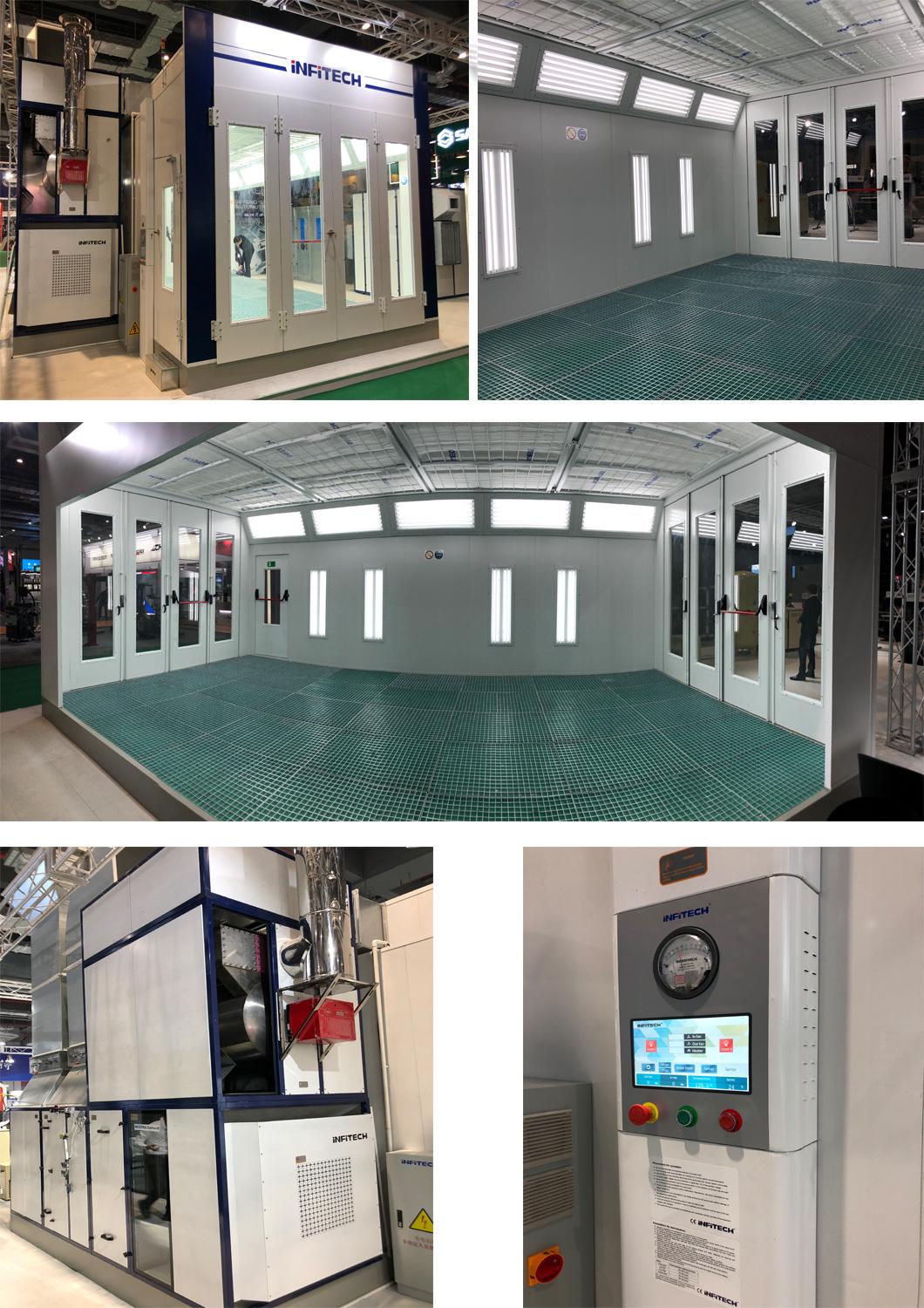

7) INFITECH at trade show
Welcome to contact us for business!
