• Model NO.：600G
• Production Capacity：500000,Roll

Basic Info.

Model NO. 600G Production Capacity 500000/Roll

Product Description

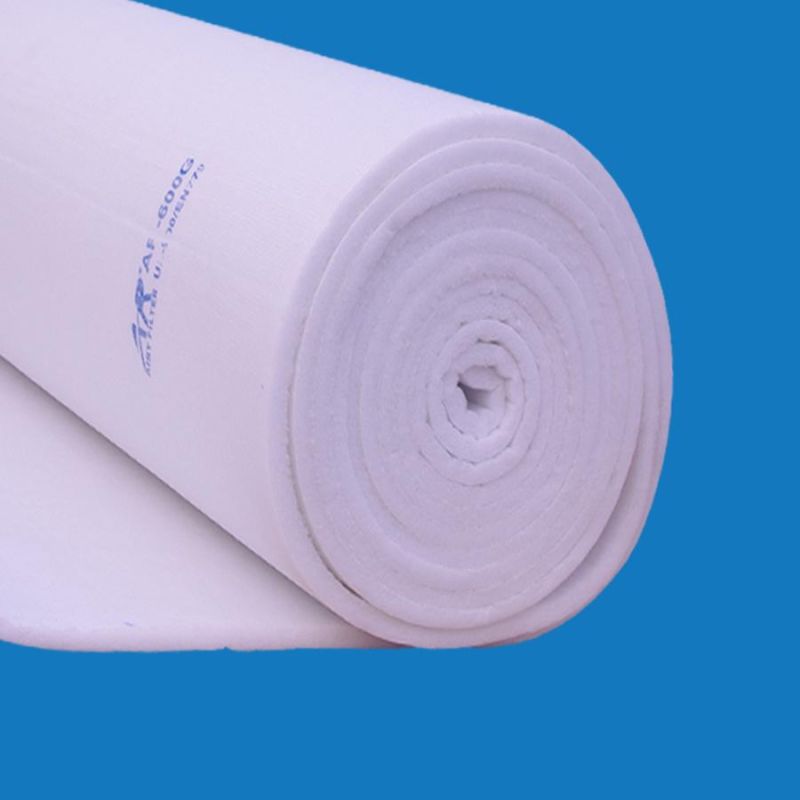

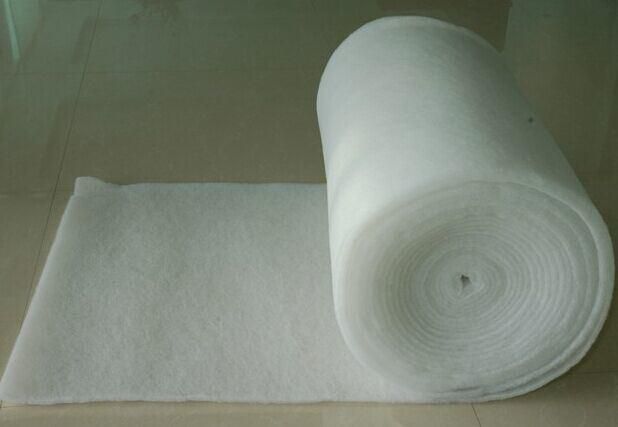

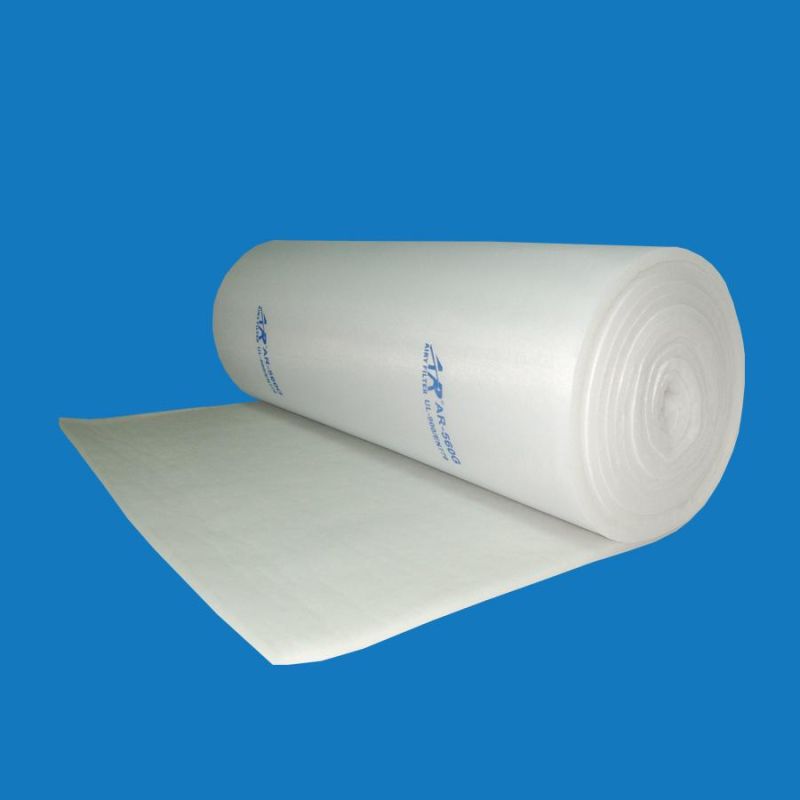

spray booth filter

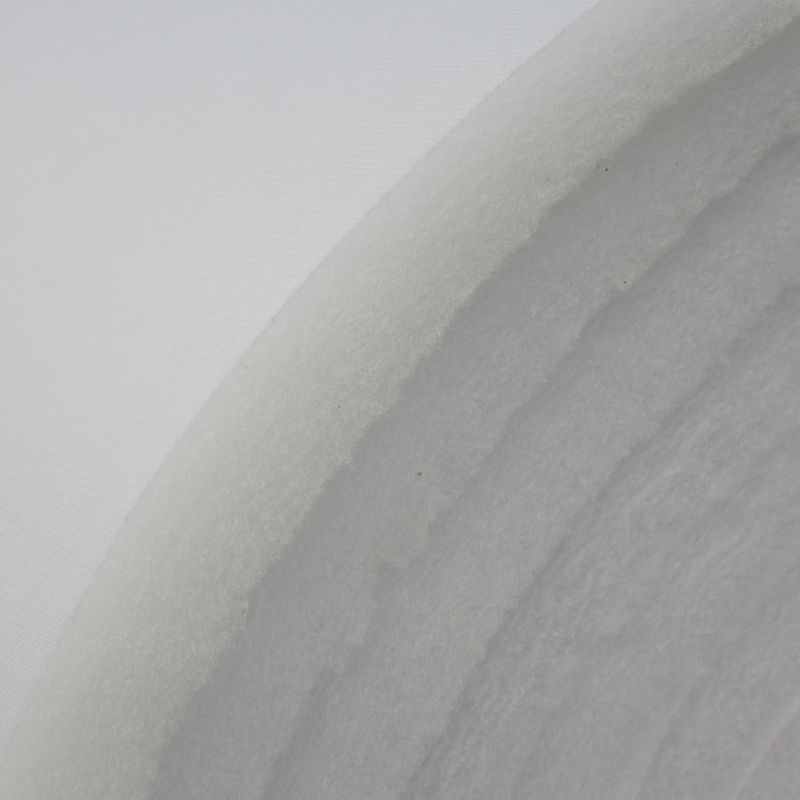

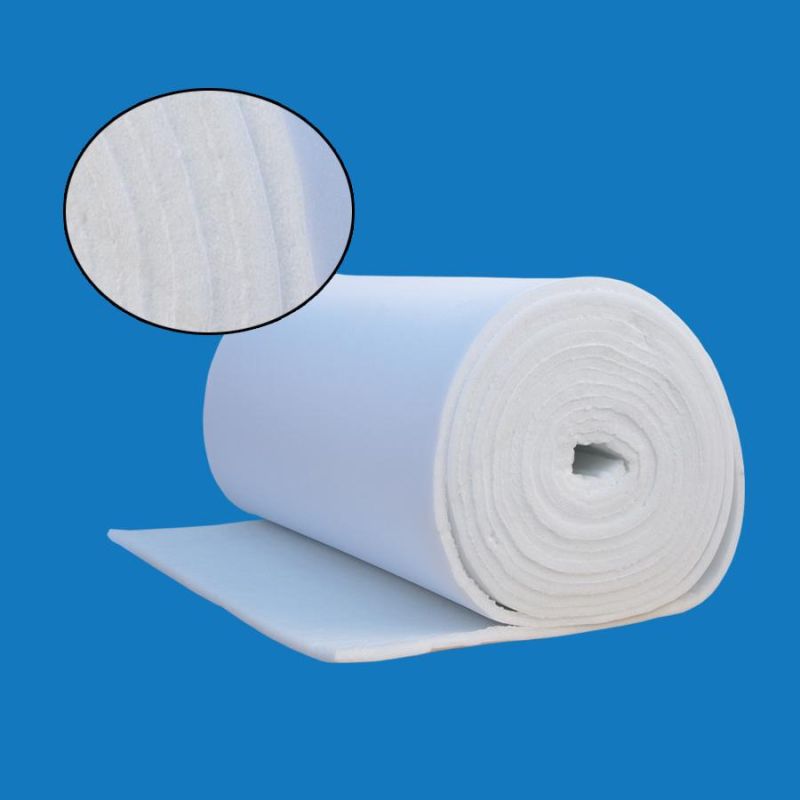

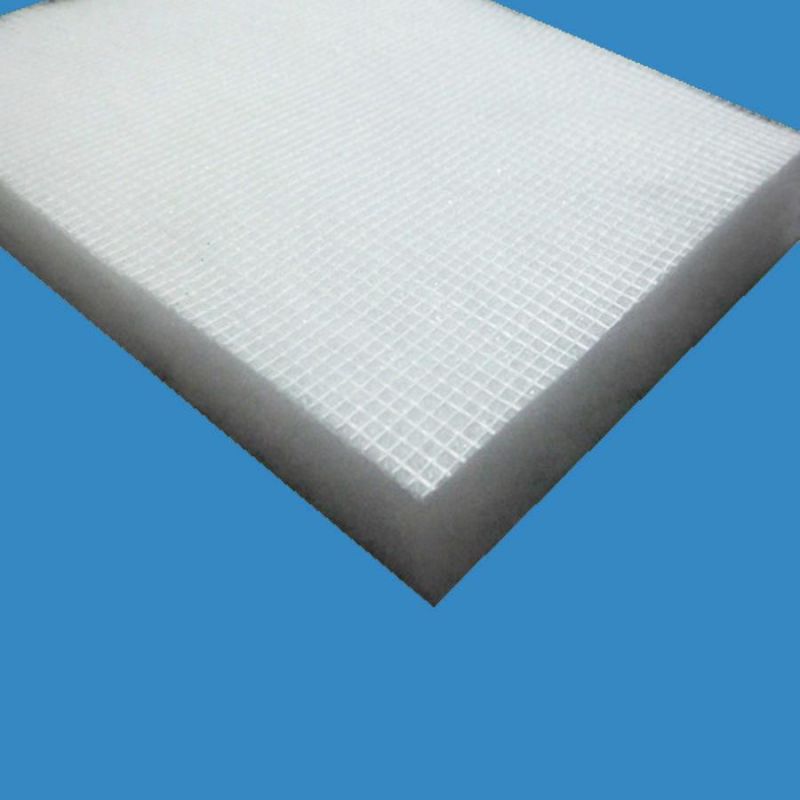

In order to increase the rate of air flow, we use double-layer filtration materials with different density and high quality water resin, cover super glass fiber net on the filters. After installation, the filter looks much nice.

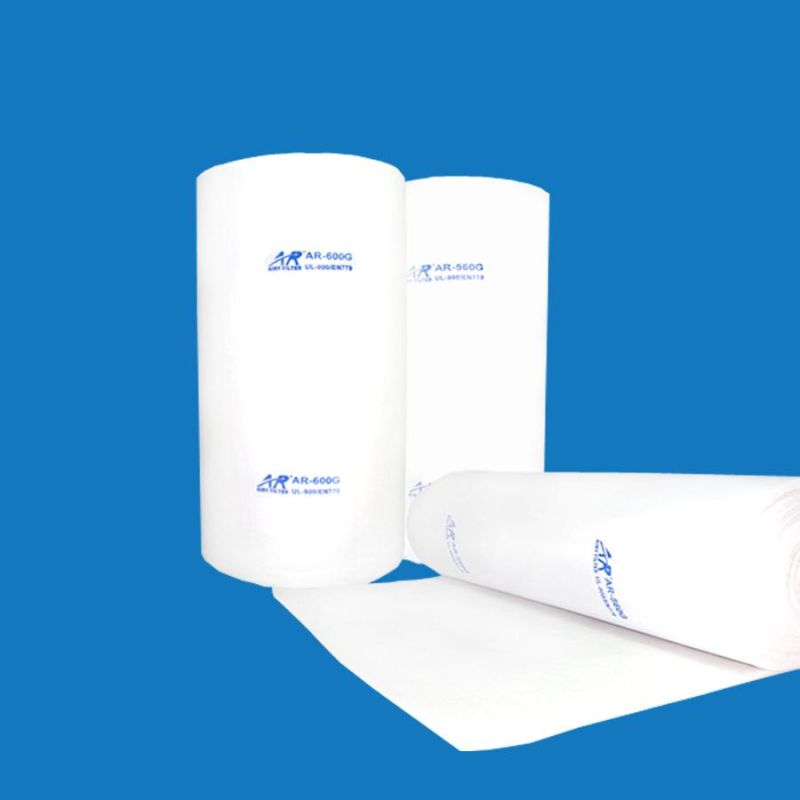

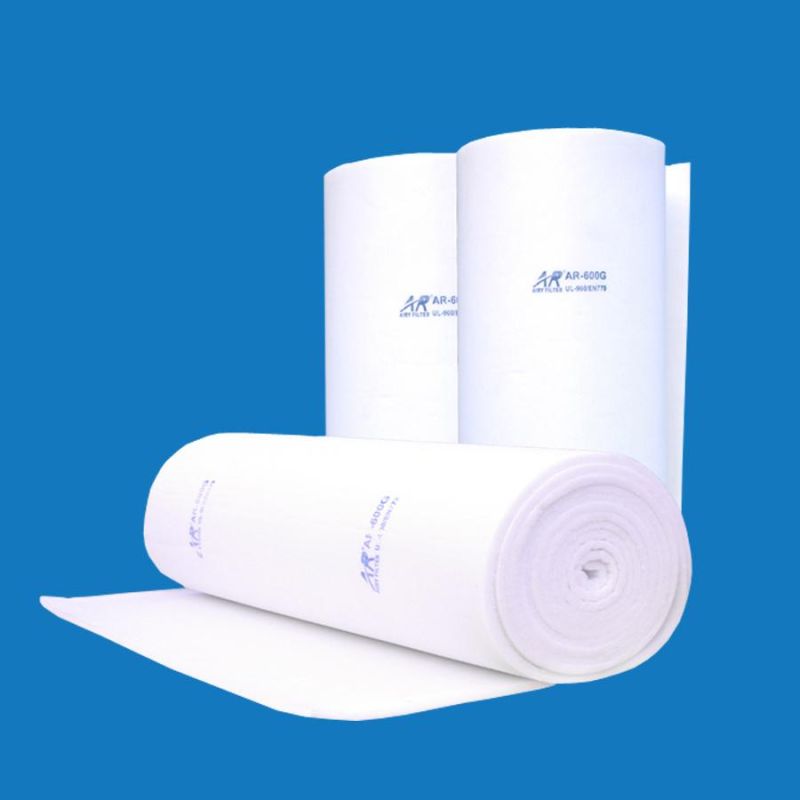

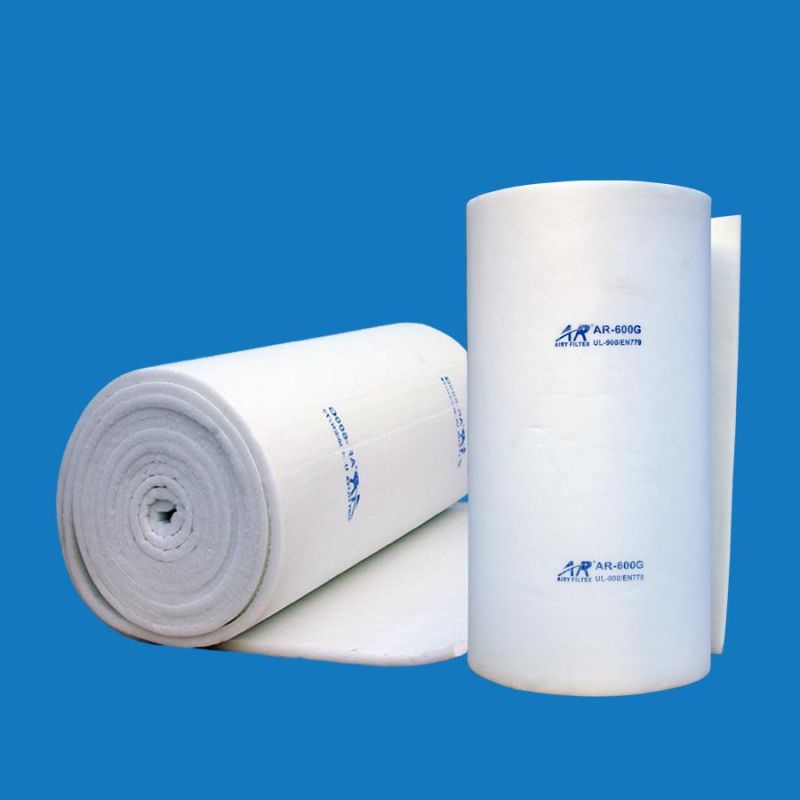

Model: AR-600G

Test Air Velocity (m/s) :	0.25
Thickness	22
Max. dust holding (g/m2)	480

Filter class according to EN779: F5
Average Arrestance (%): 98%
Rated airflow (m3/h): 900
Initial resistance (pa): 30
Recommend final resistance 9): 480
FlammabilityDIN53438 (F2) :F1
Temperature resistance (cel degree): ≤ 100
Short max temerature (cel degree):≤ 120
Standard roll size (m) : 2 * 20m, 1.6 *21m, 2 * 15m ( customized size is avaliable)
