• Model NO.：90009-1
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Product Name：Industrial Paint Booth
• Keyword：Paint Booth
• Usage：Painting Furniture
• Brightness：>800lux
• Filter：High Efficiency Filter
• Fan：Big Impeller Direct Drive Fan
• Air Volume：22,000m3,H
• Noise：<78dB
• Warranty：2 Years
• Filtration Efficiency：85%
• Transport Package：Polyfoam and Metal Frame
• Specification：6780X5000X3000mm
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000pieces,Year

Basic Info.

Model NO. 90009-1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Product Name Industrial Paint Booth Keyword Paint Booth Usage Painting Furniture Brightness >800lux Filter High Efficiency Filter Fan Big Impeller Direct Drive Fan Air Volume 22,000m3/H Noise <78dB Warranty 2 Years Filtration Efficiency 85% Transport Package Polyfoam and Metal Frame Specification 6780X5000X3000mm Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000pieces/Year

Product Description

Infitech Hot Sell CE Certified Customized Industrial Furniture Woodworking Paint Booth
1) Product Overview

Products:Paint Booth (6780x5000x3000mm)

Characteristics:
- CE certified Paint Booth
- Cross downdraft

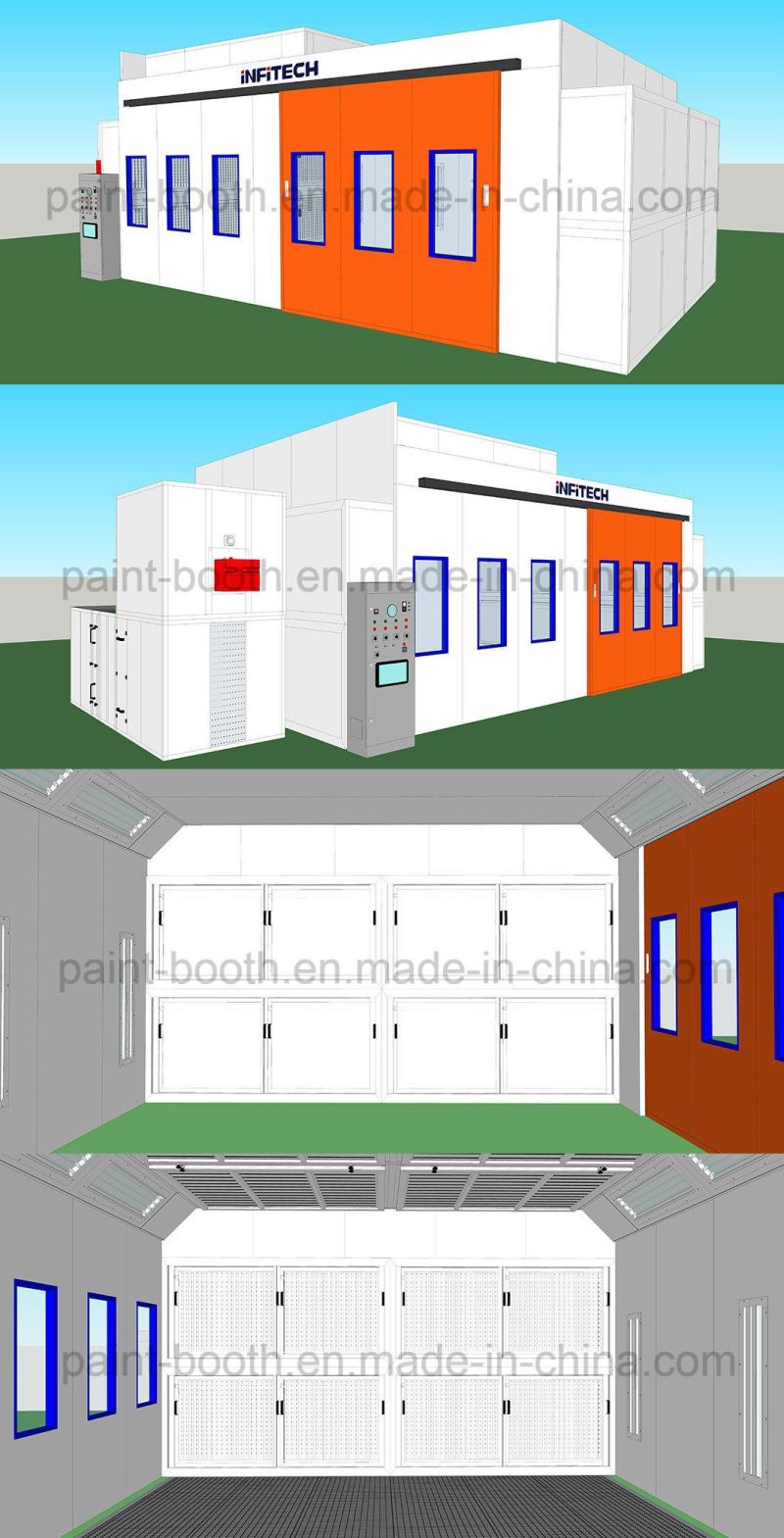

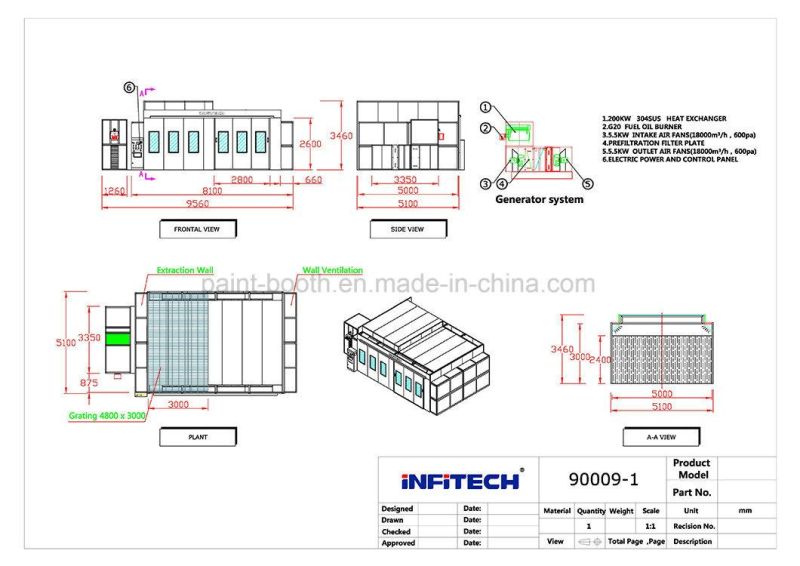

Design:

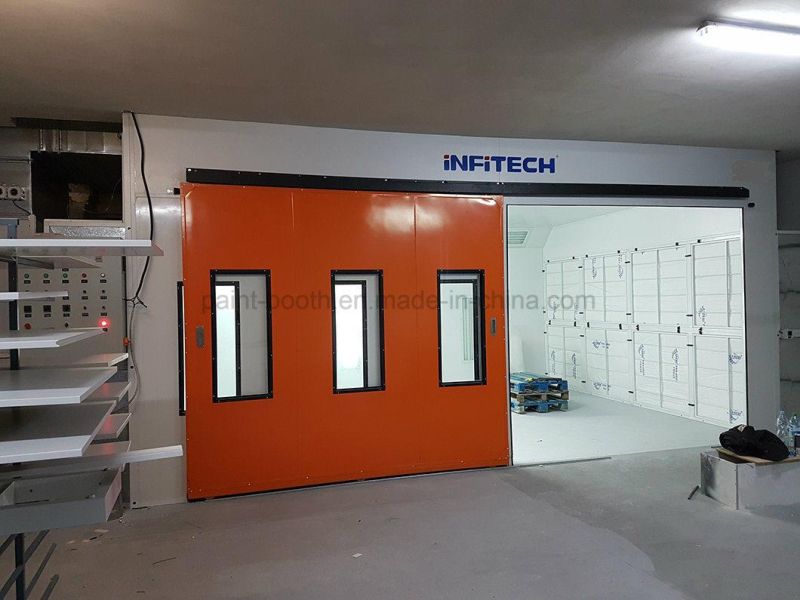

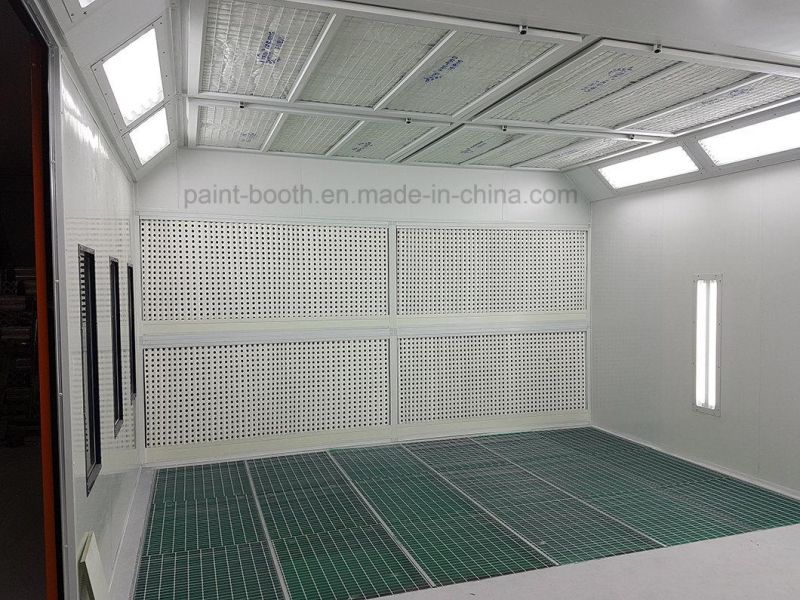

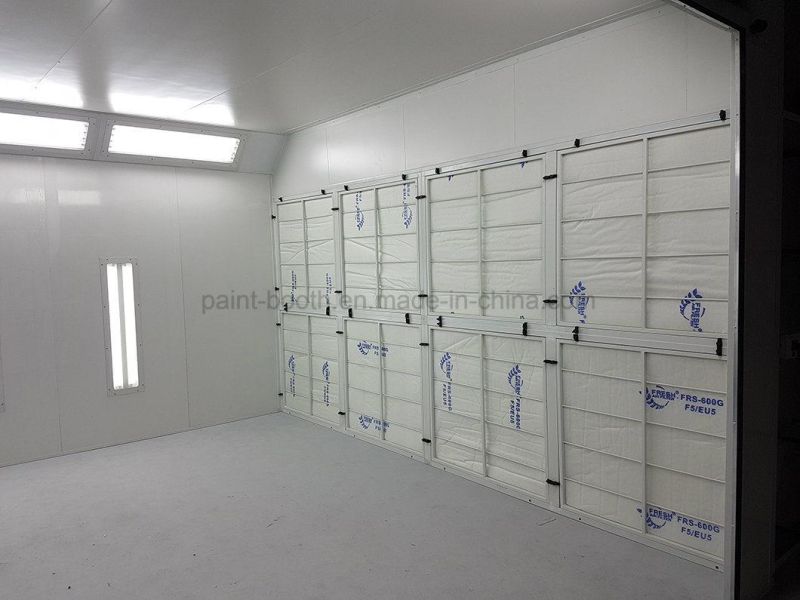

2) Detailed Image







3) Technical Parameters

Item	Specifications
Model	90009-1
Internal dimensions	6780 x 5000 x 3000MM(L x W x H)
Entrance door	2800 x 2600MM
Air volume	22,000m3/h
Air exchange times	3 times/min
Max. working temperature	80ºC
Heating time	4-6 min(60ºC)
Max. calorific value	200,000kal/h
Heat exchange efficiency	85%
Illumination	≥800 Lux
Filtration efficiency	≥96%
Noise	≤85 db(A)
Rated power	15 kw

4) Company information

Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
