Infitech High Quality Ce Approved Spray Booth for Auto
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
Base Info
- Model NO.：IT-L8
- Heating Mode：Gas
- Paint Mist Treatment：Dry-type
- Condition：New
- Product Name：Automotive Paint Booth
- Keyword：Paint Booth
- Usage：Car Painting
- Brightness：>1500lux
- Filter：High Efficiency Filter
- Fan：Big Impeller Direct Drive Fan
- Air Volume：35,000m3,H
- Noise：<78dB
- Warranty：2 Years
- Filtration Efficiency：85%
- Empty Loaded Air Speed：+,- 0.30m,S
- Motor：Explosion-Proof Motor
- Burner Model：Riello Gas Burner RS5d
- Transport Package：Polyfoam and Metal Frame
- Specification：8000X4000X3000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：500pieces,Year
Description
INFITECH Hot Sale High Quality CE Standard Spray Booth for AutoITEMS SPECIFICATIONS Design standar BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 8000 x 4000 x 3000mm (L x W x H) External dimensions 8110 x 5760 x 4010mm (L x W x H) Entrance door 1 set, 3400 X 3250 mm (W X H) Personnel door 1 set, 800 X 2000 mm (W X H) Ceiling lighting (LED) 10 sets, each 6 X18W, 1,080W total Sidewall lighting (LED) 10 sets, each 2 X 18W, 360W total Brightness >1,500LUX Filters Pre-filter, ceiling filter, floor filter, exhaust filter Air intake Direct-type turbine fan, 11KW explosion-proof motor Air exhaust Direct-type turbine fan, 11KW explosion-proof motor Air volume 35,000m3/h Empty loaded air speed +/-0.30m/s Air exchange times 6 times/min Maximum working temperature 80ºC Heat exchanger power 315KW Burner (Max. calorific value) RIELLO gas burner RS5D (two stage) Controls CE standard control box Rated power 30KW
3) Company information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
4) Packing and loading details

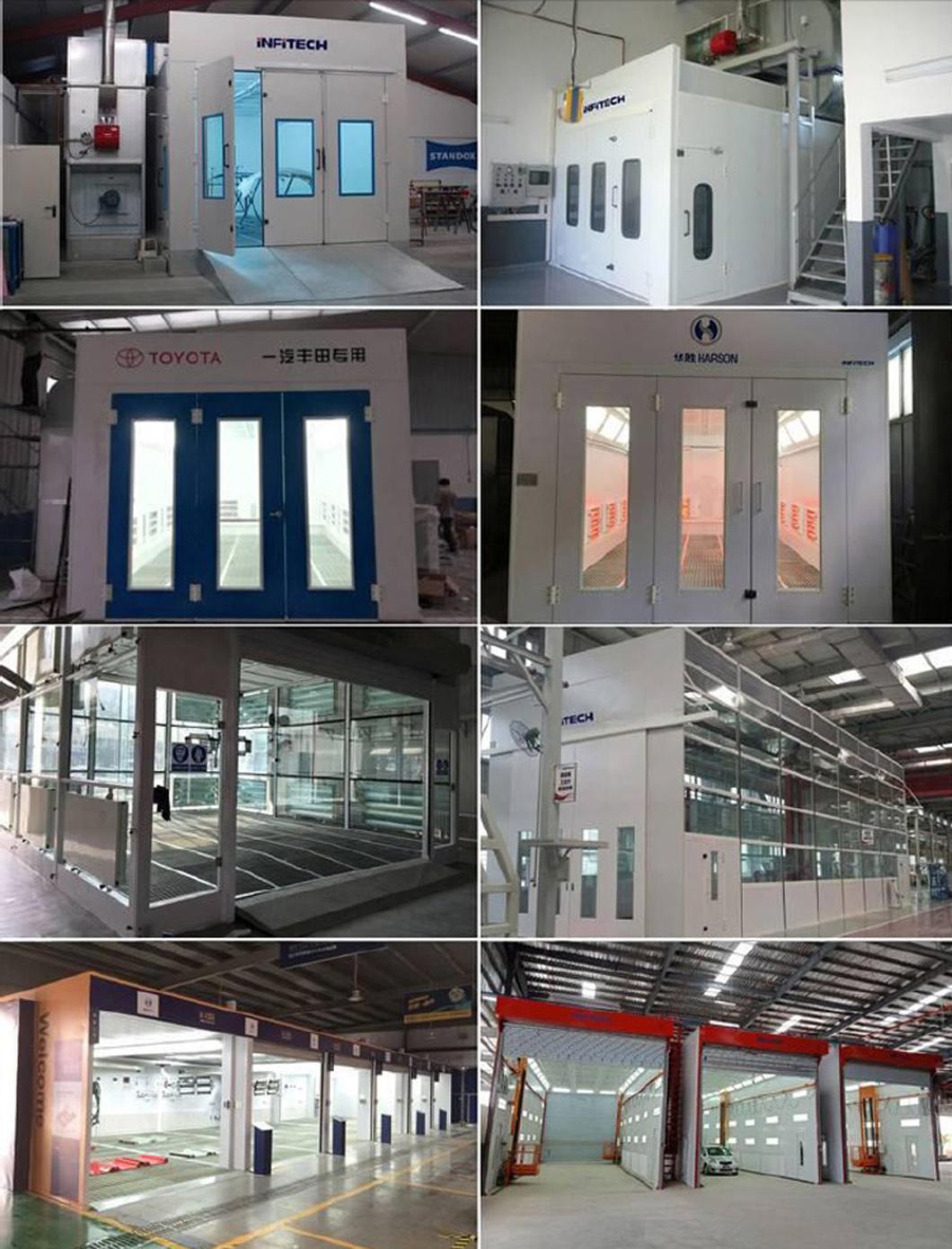

5) Engineering case
6) Quality assurance
Warranty
The quality guarantee period is 2 years after the final inspection from the date when the final acceptance is signed.
If there is any damage to the parts during the warranty period (non-wearable parts), INFITECH replaces the corresponding parts, and the warranty period for that parts will be recalculated from the date that the parts are replaced.
Training
In addition to on-site training for operators, electric repairers, and mechanics, INFITECH technicians will stay during the trial production stage until users fully master the operations and maintenance of the equipment.
After sales service
Our company provides users with timely and high-quality services, and provides timely information and technical information on equipment use and maintenance.
During the use of the equipment, INFITECH has full-time after-sales personnel to regularly track the equipment. If there is problem during operation, after receiving user's after-sales service request (with the description of the fault), INFITECH will reply within 24 hours to diagnose, and troubleshoot the fault by telephone, or E-mail.
Spare parts and consumables supply
INFITECH always strives to provide users with quality parts and services.
BS EN 60204: 2006 + A1: 2009
3) Company information
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.

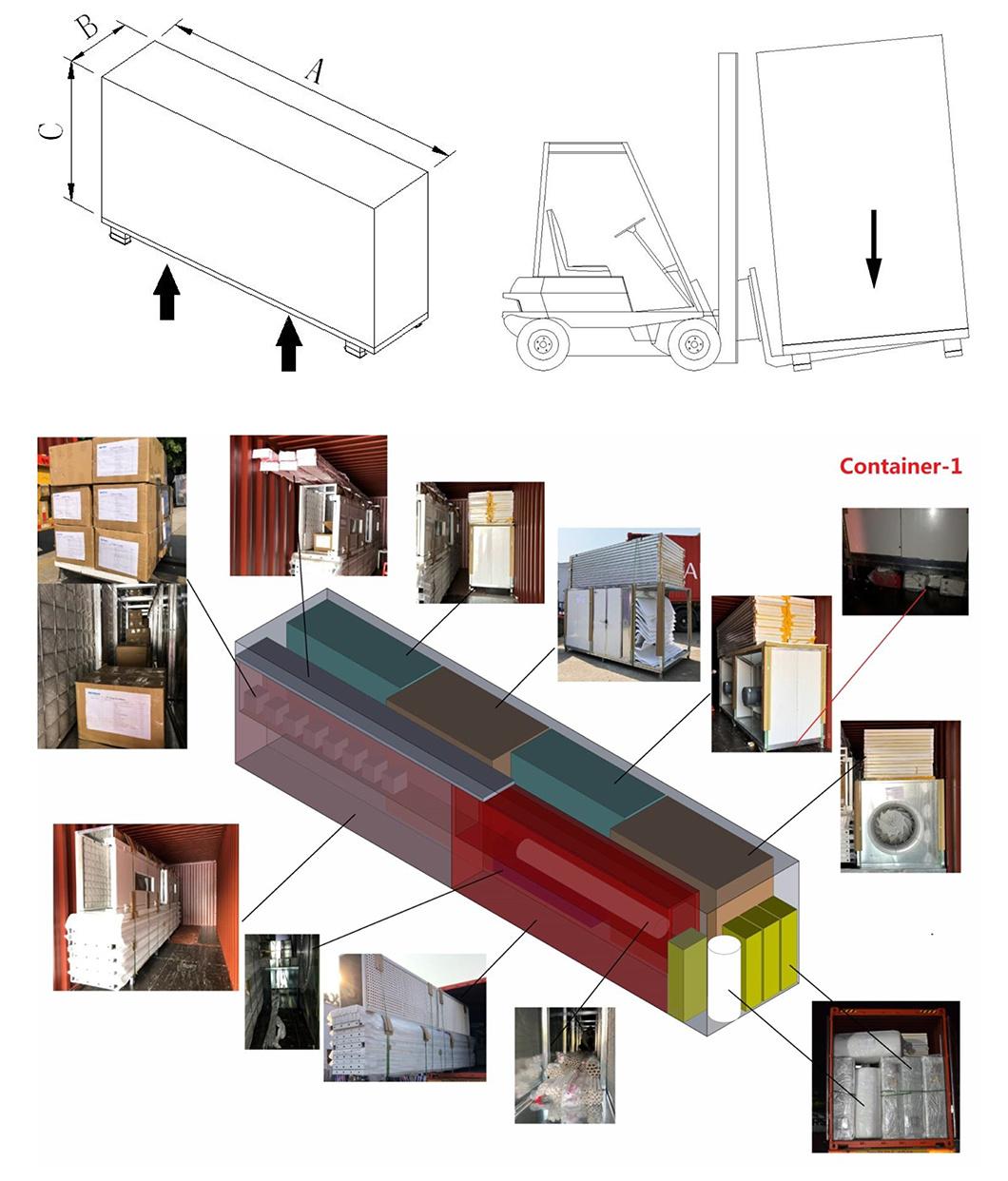

4) Packing and loading details
- Cargo is loaded on metal frame to facilitate convenient loading and unloading by forklifts.
- 1x1.5T forklift & 2 people for loading and unloading.
5) Engineering case
6) Quality assurance
Warranty
The quality guarantee period is 2 years after the final inspection from the date when the final acceptance is signed.
If there is any damage to the parts during the warranty period (non-wearable parts), INFITECH replaces the corresponding parts, and the warranty period for that parts will be recalculated from the date that the parts are replaced.
Training
In addition to on-site training for operators, electric repairers, and mechanics, INFITECH technicians will stay during the trial production stage until users fully master the operations and maintenance of the equipment.
After sales service
Our company provides users with timely and high-quality services, and provides timely information and technical information on equipment use and maintenance.
During the use of the equipment, INFITECH has full-time after-sales personnel to regularly track the equipment. If there is problem during operation, after receiving user's after-sales service request (with the description of the fault), INFITECH will reply within 24 hours to diagnose, and troubleshoot the fault by telephone, or E-mail.
Spare parts and consumables supply
INFITECH always strives to provide users with quality parts and services.
