Cr816 High Pressure Common Rail Injector and Pump Test Bench Eui Eup Cam Box Heui

NANTAI AUTOMOTIVE TECHNOLOGY CO., LTD.
  • Certification：CE, ISO
  • Update Method：by Internet
  • Condition：New
  • Standard：Standard
  • Voltage：220V, 380V, 415V
  • Language：English,French,Spanish,Russian,Italian,Portuguese

Base Info

  • Model NO.：CR816
  • Weight：700kg
  • Transport Package：Plywood Box
  • Specification：197x97x165cm
  • Trademark：XINAN
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：100 Sets,Month

Description

Basic Info.

Model NO. CR816 Weight 700kg Transport Package Plywood Box Specification 197x97x165cm Trademark XINAN Origin China HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

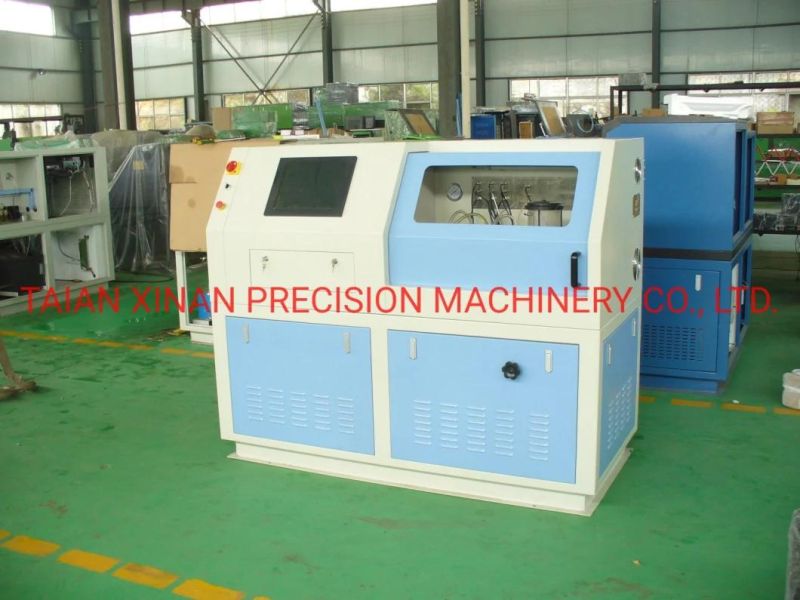

Cr816 High Pressure Common Rail Injector and Pump Test Bench Eui Eup Cam Box Heui




CR816 Common Rail Test Bench

mainly test for common rail pump and injector. It is continuous fuel delivery analysis computerized
measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity of the measured value.

Common Rail System:
CP1, CP2,CP3, CP Delphi / Denso / Siemens,
Solenoid valve CRI Bosch / Delphi / Denso
Solenoid valve CRIN Bosch
Delphi EUI injector
Piezo CRI Bosch / Siemens / Denso
With test data and test plan.
It also can test 6 common rail injectors in one time

1. Pump testing: pump delivery, pressure,PVC working status,
leakage of itself,HP0 pump testing.
2. Injector testing: leakage, injection oil quantity and back oil quantity
(pre-injection,Idling, emissions, full load)
3. It can test pressure sensor, DRV valve
4. Supports system: BOSCH,DELPHI,DENSO,SIEMENS
5. Testing data inside( pump and injector)
6. Electronic fuel delivery measuring, automatic detection.
7. Data can be searched, printed and made into database.
8. HEUI testing function(optional)
9. EUI/EUP testing function(optional)

Technical parameters
1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE/ 1 PHASE 220V
3. Motor speed: 0-4000RPM
4. Pressure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6. Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling

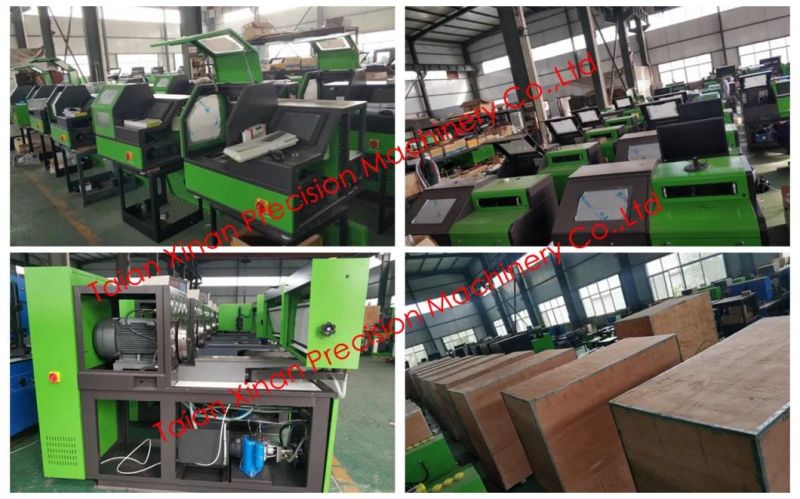

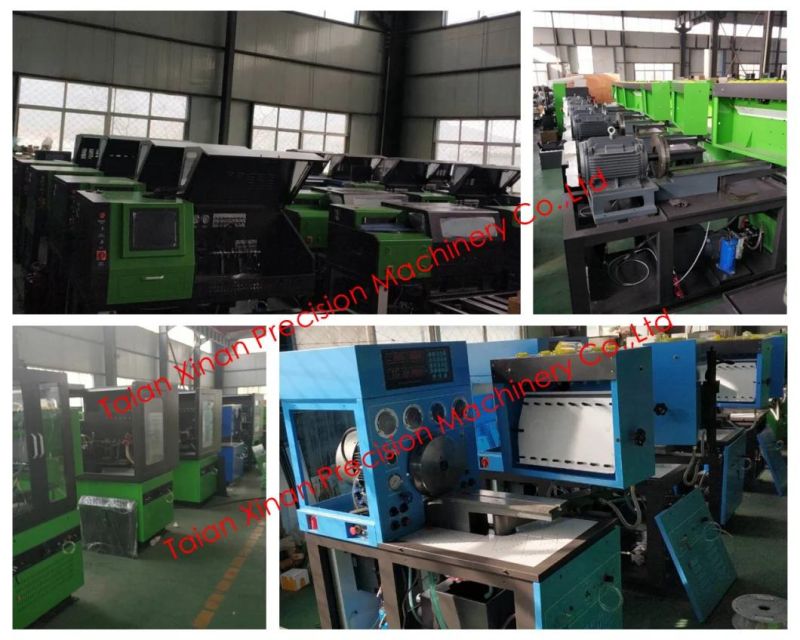

Our workshop:

Cr816 High Pressure Common Rail Injector and Pump Test Bench Eui Eup Cam Box Heui
Cr816 High Pressure Common Rail Injector and Pump Test Bench Eui Eup Cam Box Heui

Package & Delivery
Cr816 High Pressure Common Rail Injector and Pump Test Bench Eui Eup Cam Box Heui
FAQ
Q: Are you a factory or trading company?
A: We are a factory which has been producing diesel test bench for more than 20 years.

Q: What are your main products?
A: We specialize in Diesel Fuel Injection System Tester in China, is avaiable for Traditional diesel fuel injection pump test bench, PT-CUMMIN pump and injectors Test stand, EDC( Electronic Diesel Controler), CR( Common Rail pump Tester), CRI(Common Rail Injectors Tester), Nozzle Tester, and many spares parts of Pumps.

Q: What's the delivery time?
A: The standard machine is 5 to 15 days after payment.

Q: What's your payment term?
A: we advise 50% T/T deposit, balance paid before shipment.

Q: Do you receive OEM?
A: Yes, we warmly welcome customers to do OEM in our factory.
