High Quality Full Downdraft Industrial Spraying Booth for Auto Body Shops
 1.ADVANTAGES

1. CE compliance
2. Full downdraft airflow
3. High performance fan units
4. High efficiency heat unit
5. High ease of use
6. Long lifespan
7. Lower operating costs

2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT-SUPER-1101 painting booth
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	7000 X 4000 X 2800mm (L X W X H)
External dimensions	7110 X 5760 X 3810mm (L X W X H)
Airflow	Full Downdraft
Plenum (height)	600mm
Extraction	Through 350mm high raised basement
Extraction area	28m2
Grids carrying capacity	900kg/wheel
Entrance door	3400x2700mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 6 X 18W, 864W total
Sidewall lights (LED)	8 sets, each 4 X 18W, 576W total
Brightness	>1,500LUX
Filters	Bag filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x11KW, SIEMENS motor
Air volume	35,000m3/h
Empty loaded air speed	0.35m/s
Heats	315kw heat exchanger, RIELLO gas burner RS5D
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter
Rated power	28KW

3.FEATURES & APPLICATION

1. Generally considered as the best booth for auto refinishers, IT-SUPER-1101 downdraft painting booth has plenum across the roof to offer evenly disperse air movement with minimal turbulence in a vertical direction.
2. It possesses air volume as big as 35,000m³/h, and velocity at 0.35m/s, fully in conformity with requirements of using water-based paints.
3. The IT-1101 painting booth model is also equipped with SCHNEIDER inverter, regulating the frequency of motors when preparation is performed inside, which saves more than 30% energy consumption over the course of one year.

4.DETAILS
AIRFLOW & BOOTH STRUCTURE

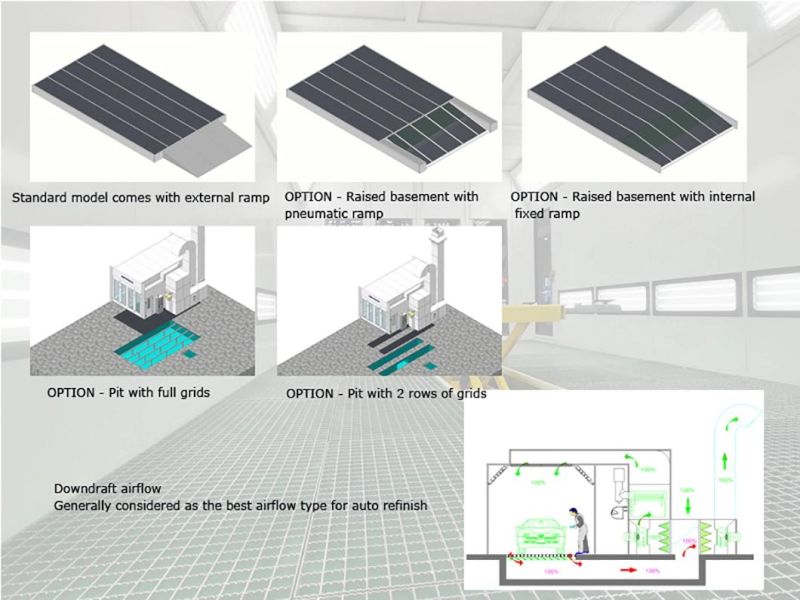

The booth comes with downdraft airflow, 600mm top plenum and 350mm raised metal basement for extraction.

OPTION
The basement can be adapted to suit specific installation site.

• Metal basement sunken in the ground (concrete work required)
• Pit with full grids for extraction (concrete work required)
• Pit with two rows of grids for extraction (concrete work required)
• Raised metal basement with internal pneumatic ramp (no concrete work)

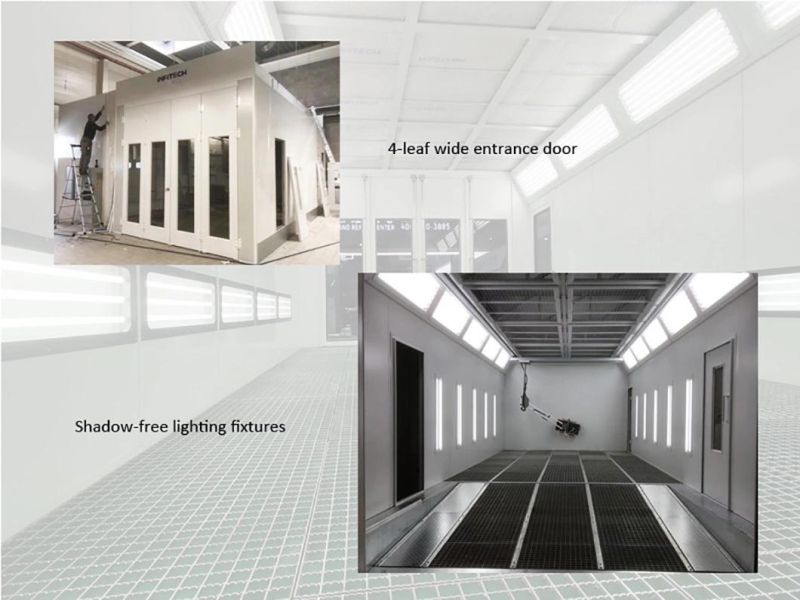

ENTRANCE DOOR & LIGHTS

• Wide opening entrance door
• Premium angled ceiling and vertical sidewall lights, >1,500lux

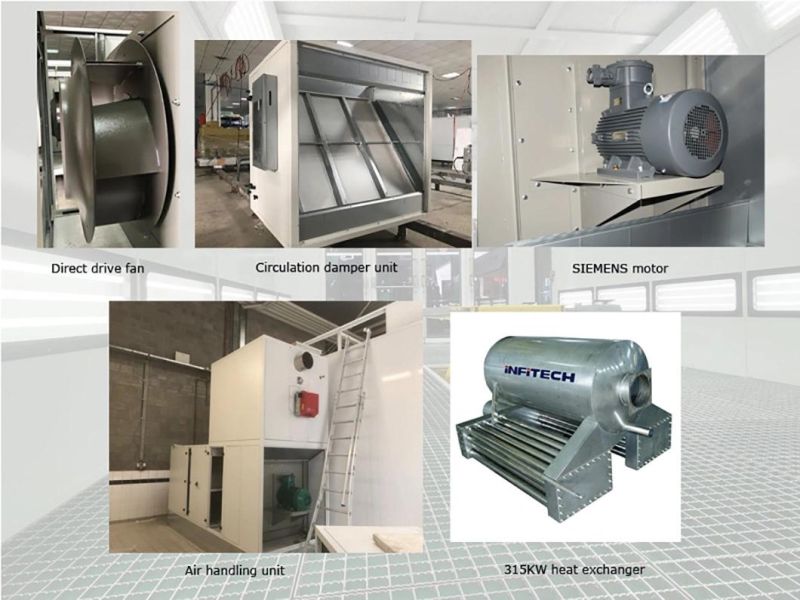

AIR HANDLING UNIT

• Efficient low noise fan unit
• Cylinder-drive conversion damper between spraying and baking phase
• 315KW heat exchanger, RIELLO gas burner RS5D (two stage)

OPTION

• RIELLO diesel burner RL34-2 (two stage)
• Direct gas fired heating system

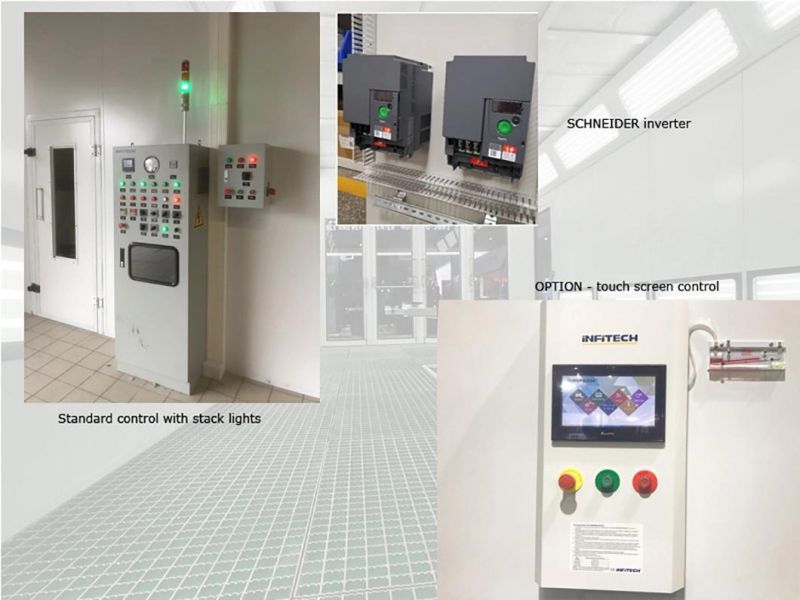

CONTROL

• Control system full complies with European regulations
• SCHNEIDER inverter brings over 30% energy savings

UPGRADE

• Innovative touch screen control

FILTERS

Item	Specification
Pre-filter	Bag filter
Ceiling filter	High efficiency F5 grade filter
Floor filter	Fiberglass paint arrestor filter
Extract filter	Activated carbon filter

FAQQ: What is the required internal height of the building where the booth is to be installed?A: If you take 1101 model with raised metal basement, the internal height of the building should be at least 3900mm.
You can send your workshop dimensions or layout through, Infitech professional technician will integrate the booth design with your workshop. When required, we customize the booth to suit the workshop, and advise you on how to make full use of your workshop space.
 Q: What is the payment terms?A: Usually, Infitech accepts 50% deposit upon order confirmation by T/T, and balance before shipment. For other payment terms, please contact Infitech sales engineer for more details.
 Q: What is the production lead time?A: 20 days after receiving the advance payment.
 Q: How many painting booths can fit into one container?A: For standard painting booth model 1101 (with raised basement), 1x40HQ container can load 1 set only. And 2 sets can be loaded in 1x40HQ+1X20GP containers based on separate packaging for each set of painting booth.
After loading 1 set in a big container, there is still space left inside. We will advise the space, so if you would like to add other items, such as spare filters, we can ship them together to avoid waste of shipping space.
 Q: How can I install the spray booth?A: Usually, you will be provided with installation drawings and electric schematic together with detailed installation steps to help guide the installation. Infitech sales engineer keeps close contact with you during the assembly process, and he is ready to answer your questions in a timely manner.
Infitech can also send engineer over to offer installation guidance service at your special requests. Please talk to Infitech sales engineer to find more details.
 Q: What is the warranty?A: Infitech offers 2-year warranty for painting booths except consumables.
 Q: How to maintain the painting booths?A: You will be provided with maintenance instructions, according to which you can prepare the maintenance schedule and carry out regular maintenance.
