Bus service 4 post lift
Jinan Moral International Co., Ltd.- Type：Four Cylinder Hydraulic Lift
- Lifting Capacity：20T,30T etc
- Driving Type：Mechanical
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：4
- Double Cylinder Lift Type：Screw
Base Info
- Model NO.：FPC
- Shearing Lift Type：Screw
- Condition：New
- Brand：MORAL
- Design：Four Post
- Post：22#B channel steel
- Drive Mode：Mechanical
- Capacity：20T,30T etc
- Travel：1500mm
- Power：2.2kw*4PCS
- Dimension：1300*1160mm*2930mm
- Voltage：380V,220V,other local power
- Weight：3.4T
- Lifting Speed：600mm,min
- Color：Blue,Red,customized
- Transport Package：Standard Export Package
- Specification：1300*1160*2930mm
- Trademark：MORAL
- Origin：Shandong, China
- HS Code：842890
- Production Capacity：50000,Year
Description
General action or single action out of workGeneral action or single action out of work
Switch on and check the switch
Loss of phase or overload for one electrical motor several electrical motors
Check each electrical motor
NO.1 upright post rising or descending switch damaged ,line circuit broken
Repair or change travel switch, connect the line circuit
NO.2 upright post electrical motor work, but no.2 upright post and general action not working
No.1 upright post rising or descending switch damaged, line circuit obstructed
Repair or change travel switch, connect the travel switch circuit
NO.1 and 2 upright post electrical motors work, but no.3 and 4 upright posts not working
NO.3 upright post rising or descending switch damaged ,circuit broken
Repair or change travel switch, connect the travel switch circuit
No.1,2 and 3 upright post electrical motors work, but no.4 upright post not working
NO.4 upright post rising or descending switch damaged, circuit broken
Repair or change travel switch, connect the travel switch circuit
The lifter's electrical motor can only one-way operate.
The travel switch at the reverse end not working, circuit broken
Repair or change travel switch, connect the travel switch circuit
The lifter elevating button is opposite to the actual operation.
Reversed incoming lines of power or electrical motor
Adjust power or electrical motor phase lines
Warranty
MORAL LIFT equipment has 5 years warranty on structure, and first year warranty on the whole machine.Within the warranty period, MORAL LIFT is responsible for the parts and structure, not including labor nor any other cost unless pre-agreed.
Power units, hydraulic cylinders, and all other assembly components such as slip plates, cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use. MORAL LIFT shall repair or replace at their option for the warranty period those parts returned to the factory freight prepaid which prove upon inspection to be defective. MORAL LIFT will not be responsible on any labor costs unless pre-agreed. MORAL LIFT will not responsible for the modification or upgrade of the product from the client unless pre-agreed.
These warranties do not extend to...
-defects caused by ordinary wear, abuse, misuse, shipping damage, un-proper installation, voltage or lack of required maintenance;
-damages resulting from purchaser's neglect or failure to operate products in accordance with instructions provided in the owner's manual(s) and/or other accompanying instructions supplied;
-normal wear items or service normally required to maintain the product in a safe operating condition;
-any component damaged in shipment;
-other items not listed but may be considered general wear parts;
-damage caused by rain, excessive humidity, corrosive environments or other contaminants.
-any change or modification made to the equipment without pre-agreed.
These warranties do not extend to any cosmetic defect not interfering with equipment functionality or any incidental, indirect,or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of a MORAL LIFT product or the breach or delay in performance of the warranty.
MORAL LIFT makes no warranty on components and/or accessories furnished to MORAL LIFT by third parties. These are warranted only to the extent of the original manufacturer's warranty to MORAL LIFT. Other items not listed but may be considered general wear parts.
MORAL LIFT reserves the right to make design changes or add improvements toits product line without incurring any obligation to make such changes on product sold previously.
Warranty adjustments within the above stated policies are based on the model and serial number of the equipment. This data must be furnished with all warranty claims

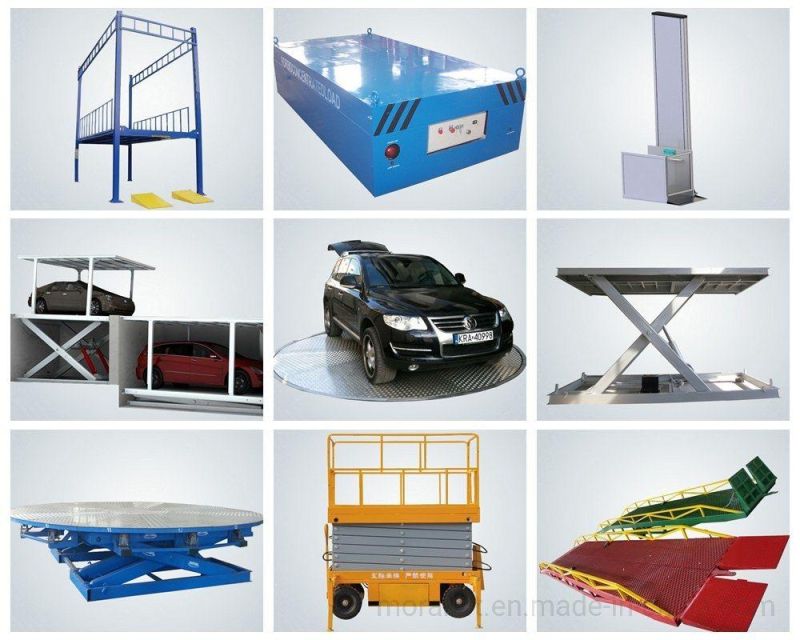

Other product you may like
