• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Size：6900*3900*2700
• Panel：50mm EPS Foam Panel
• Intake Fan：2set
• Exhaust Fan：1set
• Filter：3-Stage Filtration System
• Heating Energy：Oil, Gas, Waste Oil Burner
• Heat Converter：Stainless Steel
• Upper Light：Available
• Side Light：for Option
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Related Product 1：Large Industrial Paint Spray Booth
• Related Product 2：Folding Retractable Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：25 cbm for FCL
• Trademark：Hongyuan
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Size 6900*3900*2700 Panel 50mm EPS Foam Panel Intake Fan 2set Exhaust Fan 1set Filter 3-Stage Filtration System Heating Energy Oil, Gas, Waste Oil Burner Heat Converter Stainless Steel Upper Light Available Side Light for Option Control Automatic Drawing Available User Manual Available Related Product 1 Large Industrial Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 25 cbm for FCL Trademark Hongyuan Origin China Production Capacity 100 Set Per Month

Product Description

Introduction of the Car paint spray booth for car and minivan with diesel Burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*2000(W*H)
Total power	<17kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	TWO set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner/electric heaters/Gas burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

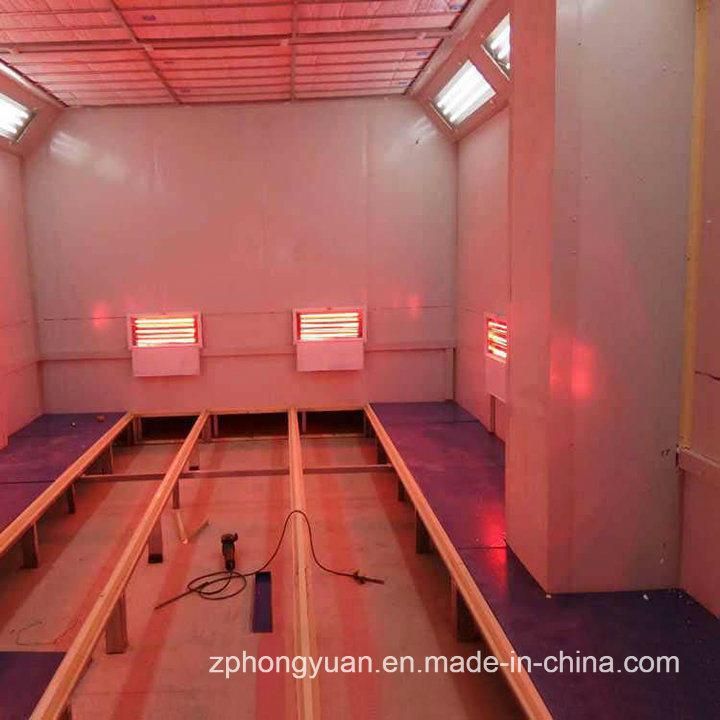

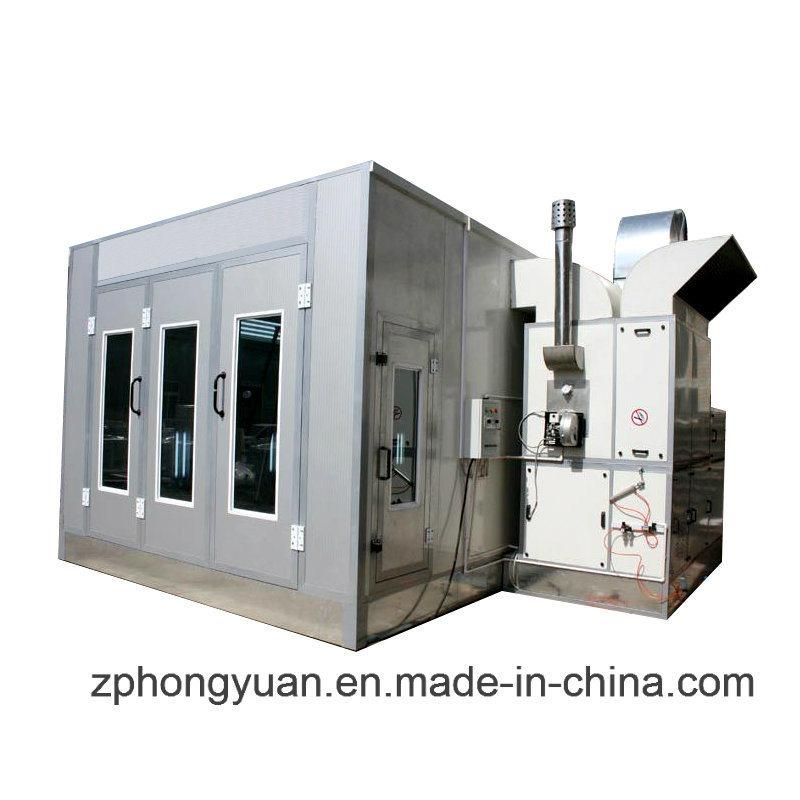

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel

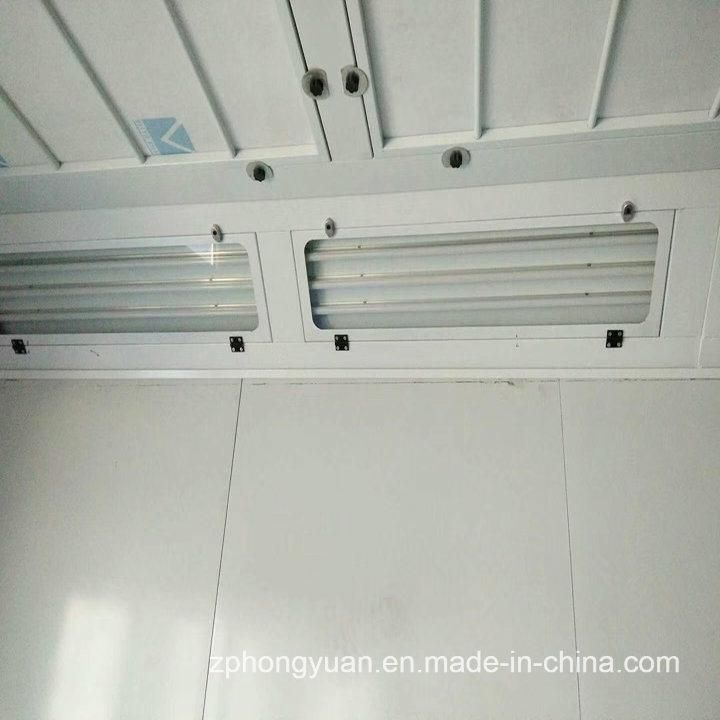

Parts picture show of the spray booth


Parts picture of the booth



Project case for paint booth
