• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：5rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Related Product 1：Furniture Paint Spray Booth
• Related Product 2：Wet Type Water Curtain Paint Spray Booth
• Related Product 3：Dry Typw Andrea Filter Open Face Paint Spray Booth
• Related Product 4：Folding Retractable Paint Spay Booth
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 5rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Related Product 1 Furniture Paint Spray Booth Related Product 2 Wet Type Water Curtain Paint Spray Booth Related Product 3 Dry Typw Andrea Filter Open Face Paint Spray Booth Related Product 4 Folding Retractable Paint Spay Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Car Auto Paint Spray Booth with Intake and Exhaust Fan
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of Car Auto Paint Spray Booth with Intake and Exhaust Fan

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<13kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 3row of grates and 2rows of diamond plates.
Intake	TWO sets of fan, motor: 3kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner./electric heating system/Riello gas burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the Car Auto Paint Spray Booth with Intake and Exhaust Fan


Details show of Car Auto Paint Spray Booth with Intake and Exhaust Fan

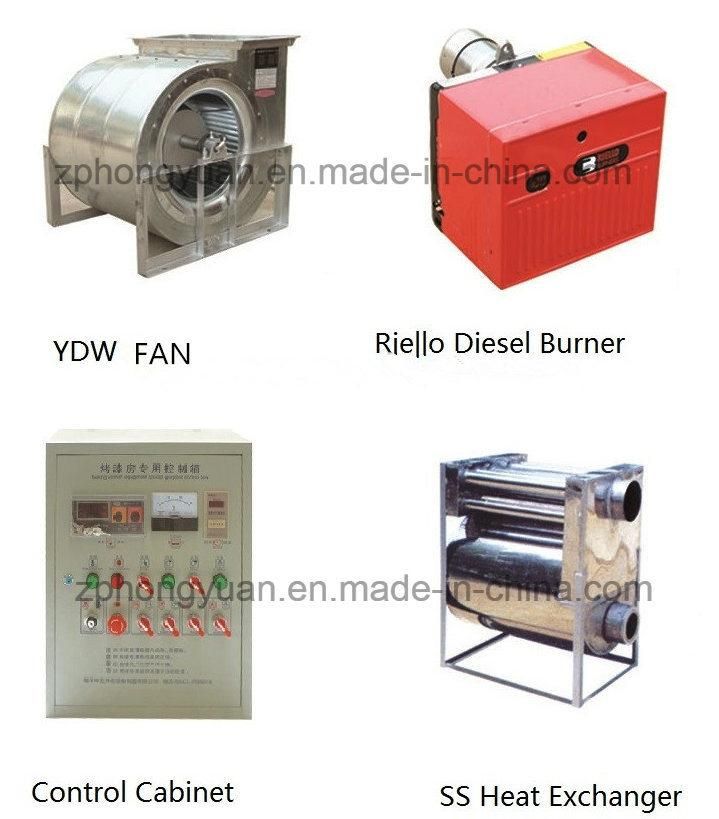

parts show of Car Auto Paint Spray Booth with Intake and Exhaust Fan

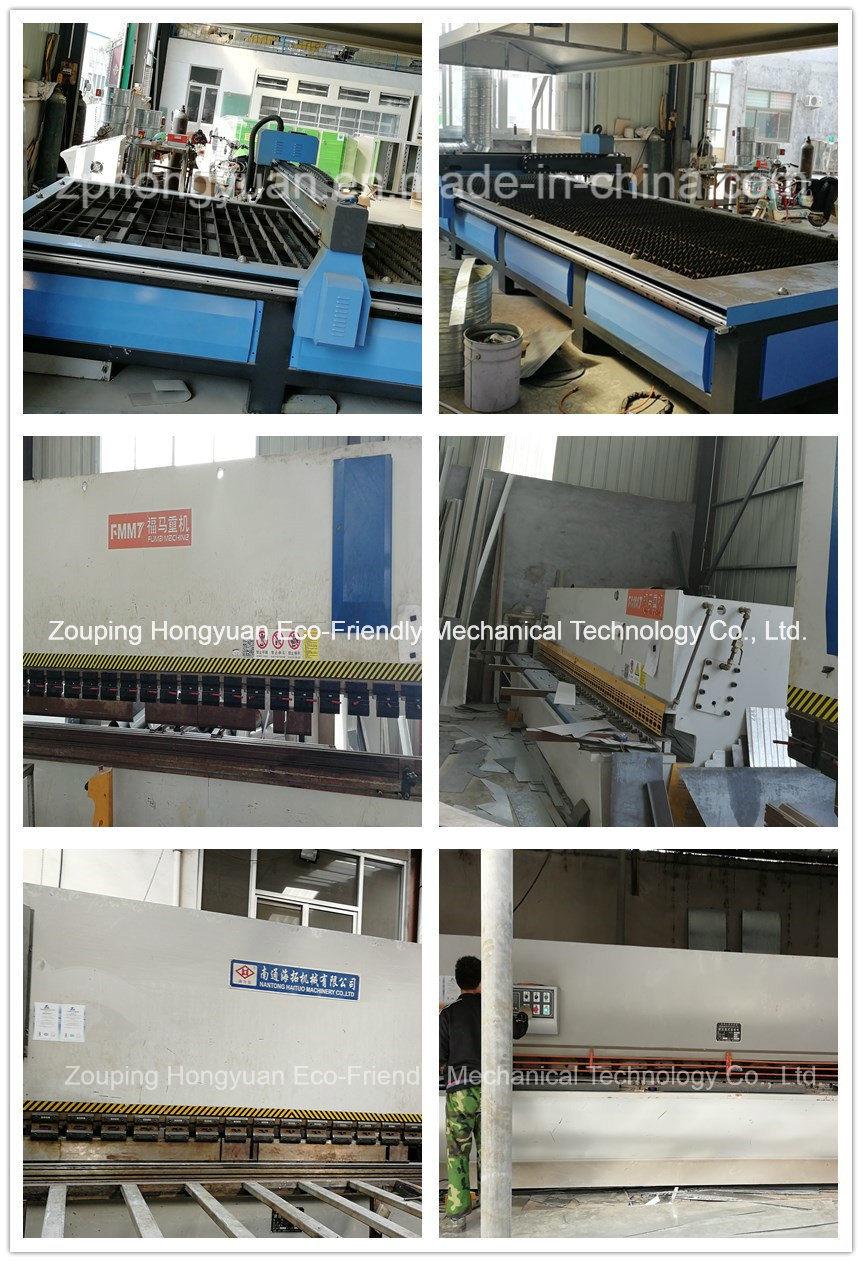

Production area and equipment for Car Auto Paint Spray Booth with Intake and Exhaust Fan

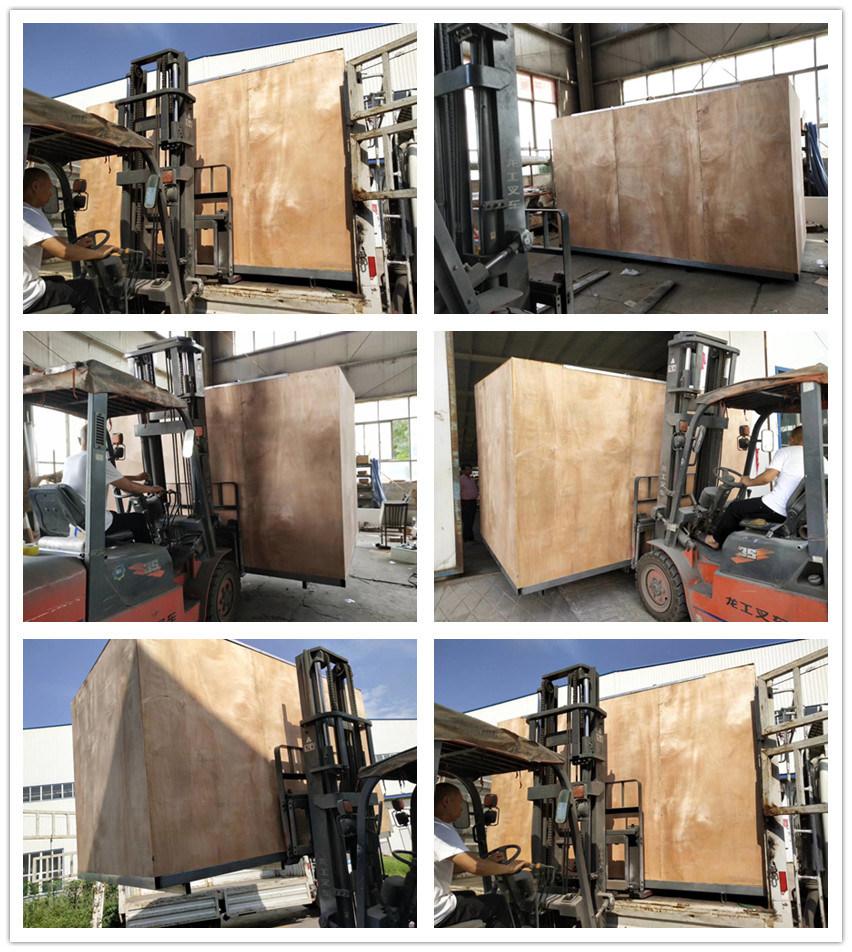

Package Show of Car Auto Paint Spray Booth with Intake and Exhaust Fan
