• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Side Door Size：600*1800
• Panel：50,75mm EPS Foam Panel
• Intake Fan：1set
• Exhaust Fan：1set
• Heating System：Oil, Gas, Electricity
• Heat Converter：Stainless Steel
• Upper Light：Available
• Side Lights：for Option
• Control Box：English Panel
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Related Product 1：Large Truck Paint Spray Booth
• Related Product 2：Folding Retractable Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Side Door Size 600*1800 Panel 50/75mm EPS Foam Panel Intake Fan 1set Exhaust Fan 1set Heating System Oil, Gas, Electricity Heat Converter Stainless Steel Upper Light Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin China Production Capacity 100 Set Per Month

Product Description

Introduction of the Auto paint spray booth for car and minivan with diesel Burner for car care and repair
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner for car care and repair

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<13kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 3row of grates and 2rows of diamond plates.
Intake	One set of fan, motor: 5.5kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner./electric heating system/Riello gas burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

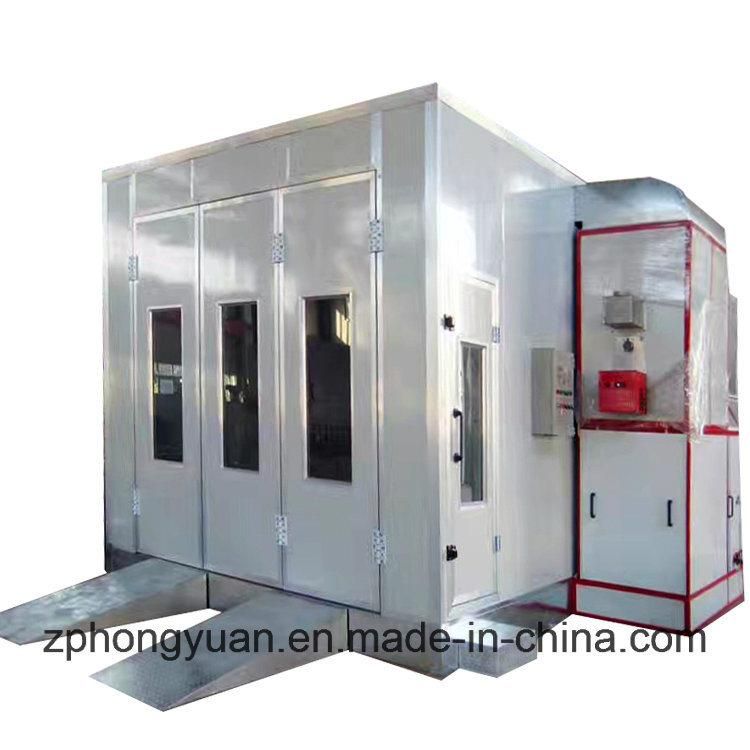

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel




Details show of Auto paint spray booth for car and minivan with diesel Burner



parts show of Auto paint spray booth for car and minivan with diesel Burner
