• Model NO.：HY-CB55A
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue White
• Panel：50mm EPS Foam Panel
• Roof Panel：Galvanized Steel
• Intake Fan：2set
• Exhaust Fan：1set
• Filter System：3-Stage Filter, 4 or 5 Stage for Option
• Heat Converter：Stainless Steel
• Heat Energy：Diesel, Gas or Electric
• Upper Lights：Available
• Side Light：for Option
• Control：Automatic
• Transport Package：Standard Package for Sea Shipment
• Specification：25cbm for FCL
• Trademark：N,A
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue White Panel 50mm EPS Foam Panel Roof Panel Galvanized Steel Intake Fan 2set Exhaust Fan 1set Filter System 3-Stage Filter, 4 or 5 Stage for Option Heat Converter Stainless Steel Heat Energy Diesel, Gas or Electric Upper Lights Available Side Light for Option Control Automatic Transport Package Standard Package for Sea Shipment Specification 25cbm for FCL Trademark N/A Origin China Production Capacity 100 Set Per Month

Product Description

Introduction of the Car Auto Spray Booth with Intake and Exhaust Fan
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Car Auto Spray Booth with Intake and Exhaust Fan

Model	HY-CB55A
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<15kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello FS10/FS20 gas burner,  one-stage oil burner/electricity for option.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the Car Auto Spray Booth with Intake and Exhaust Fan

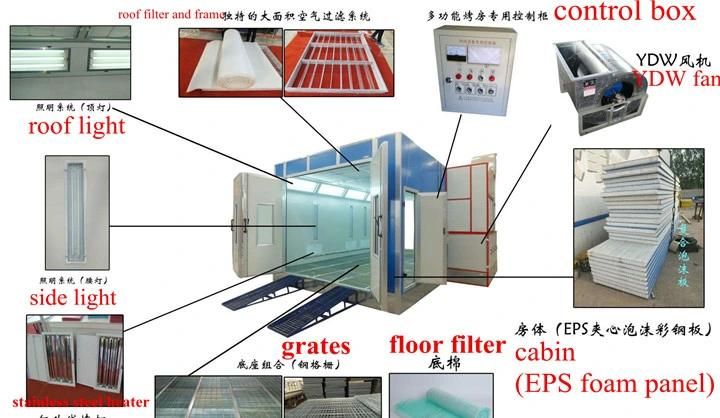

Details show of Car Auto Spray Booth with Intake and Exhaust Fan

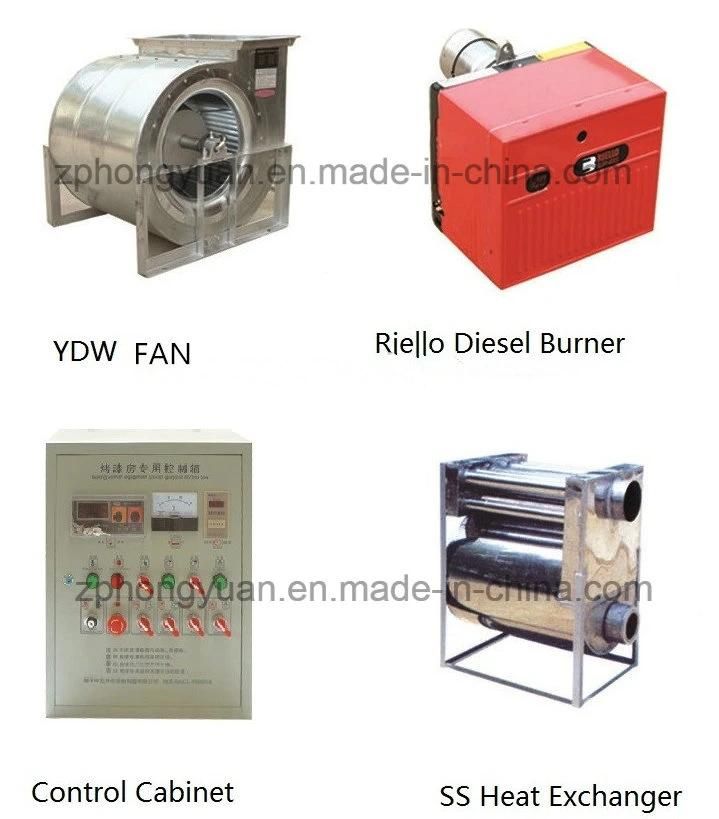

parts show of Car Auto Spray Booth with Intake and Exhaust Fan

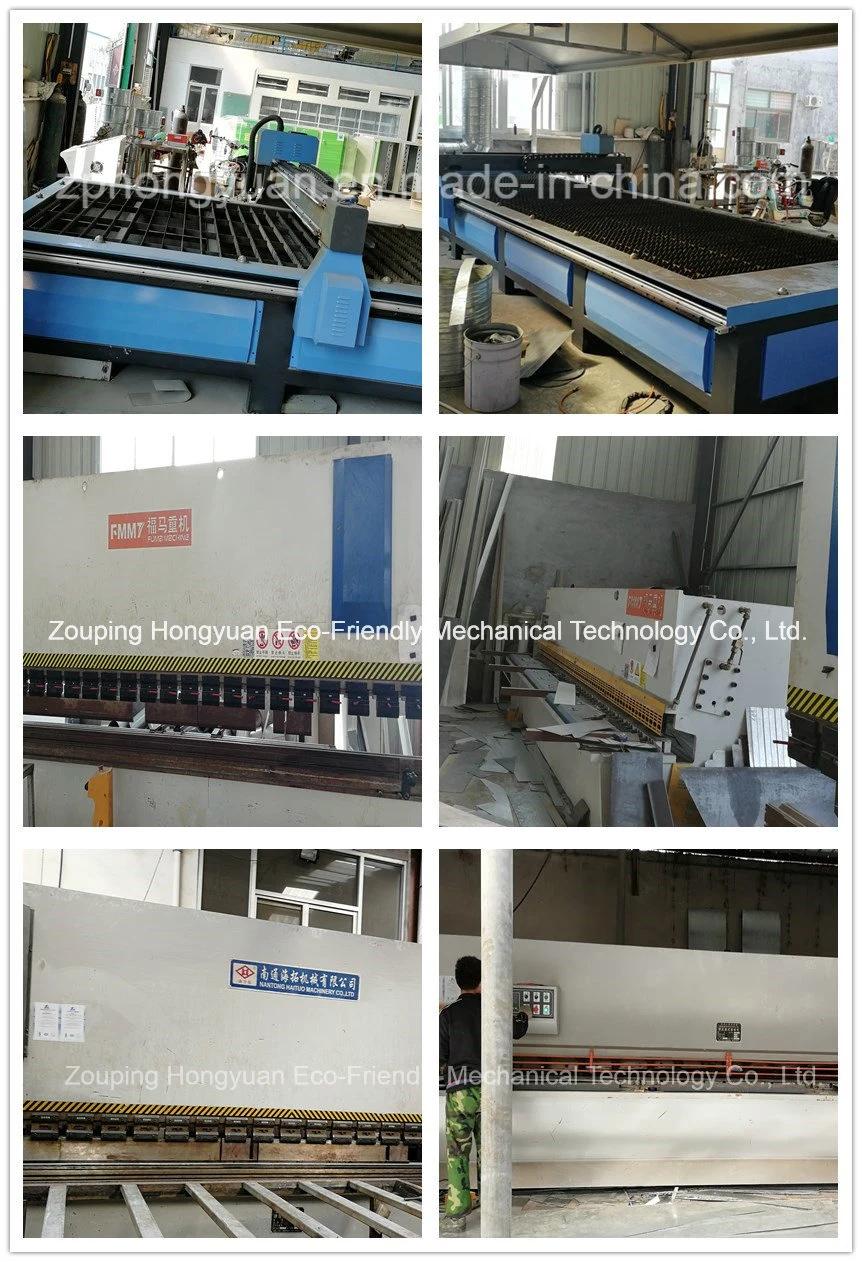

Production area and equipment for Car Auto Spray Booth with Intake and Exhaust Fan


Package Show of Car Auto Spray Booth with Intake and Exhaust Fan


Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time


Send us inquiry about Car Auto Spray Booth with Intake and Exhaust Fan
