• Model NO.：HY-CB40C
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue White
• Panel：50mm EPS Foam Panel
• Grid Plates：2rows
• Roof Panel：Galvanized Steel
• Intake Fan：2set
• Exhaust Fan：1set
• Filter System：3-Stage Filter, 4 or 5 Stage for Option
• Heat Converter：Stainless Steel
• Heat Energy：Diesel, Gas or Electric
• Upper Lights：Available
• Side Light：for Option
• Control：Automatic
• Installation Video：Available
• Related Product 1：Folding Retractbale Paint Spray Booth
• Related Product 2：Furniture Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：25cbm for FCL
• Trademark：N,A
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB40C Coating Painting Airflow Direction Fully Undershot-type Heating Mode Electric Paint Mist Treatment Dry-type Condition New Color Red, Blue White Panel 50mm EPS Foam Panel Grid Plates 2rows Roof Panel Galvanized Steel Intake Fan 2set Exhaust Fan 1set Filter System 3-Stage Filter, 4 or 5 Stage for Option Heat Converter Stainless Steel Heat Energy Diesel, Gas or Electric Upper Lights Available Side Light for Option Control Automatic Installation Video Available Related Product 1 Folding Retractbale Paint Spray Booth Related Product 2 Furniture Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 25cbm for FCL Trademark N/A Origin China Production Capacity 100 Set Per Month

Product Description

Introduction of the 7m Long Car Spray Paint Booth for 4WD
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the 7m Long Car Spray Paint Booth for 4WD

Model	HY-CB40C
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<40kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates.
Intake	two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 4kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Electricity)	Electric heaters.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

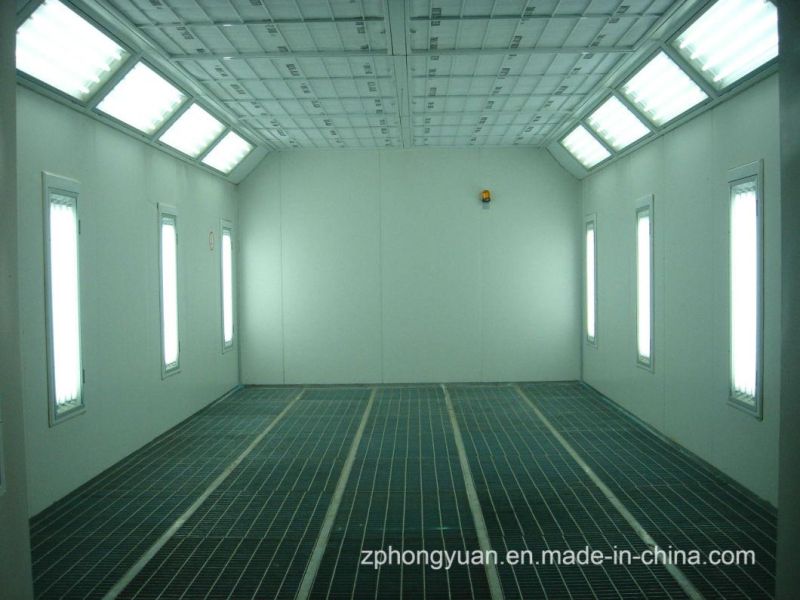

Picture of the 7m Long Car Spray Paint Booth for 4WD


Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time


Send us enquiry for 7m Long Car Spray Paint Booth for 4WD
