• Model NO.：car
• Test Range：6-24V
• Transport Package：Each Piece with One Blister Card
• Specification：27.5g
• Trademark：QIUGONG
• Origin：China
• HS Code：9031809090

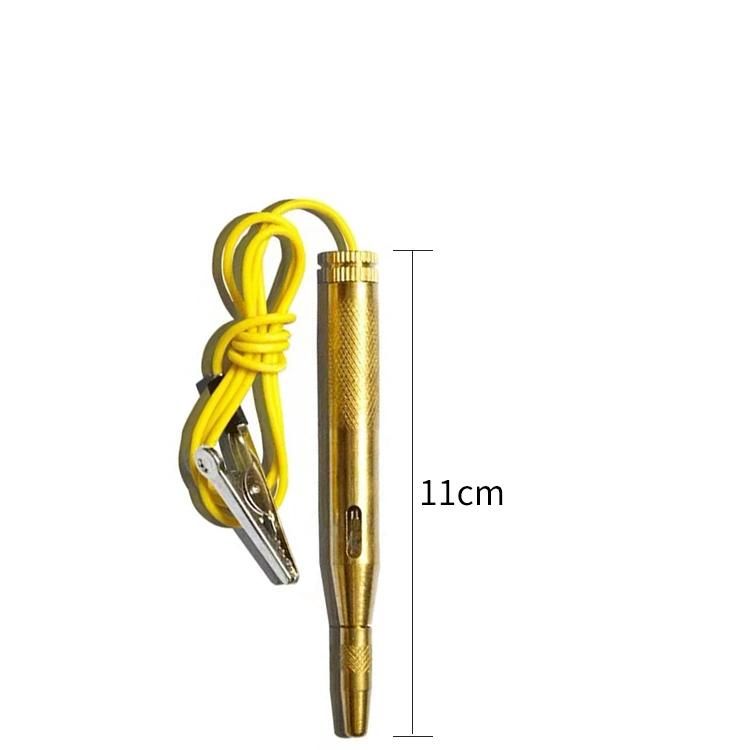

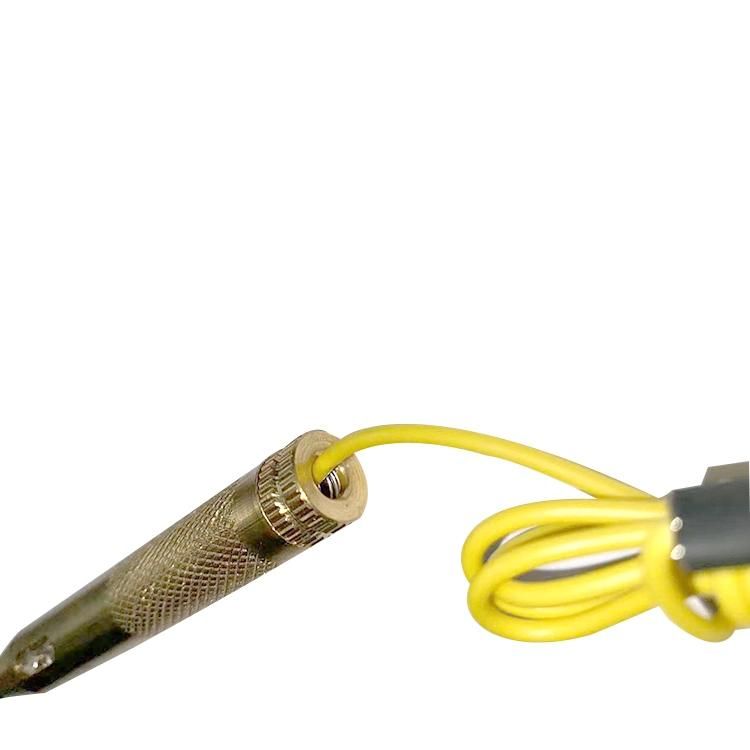

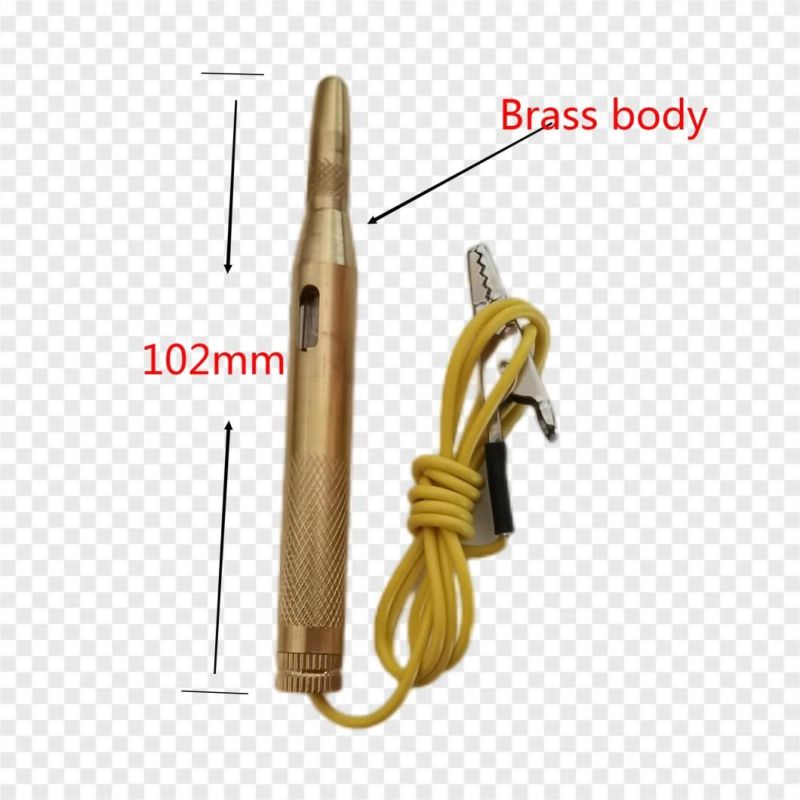

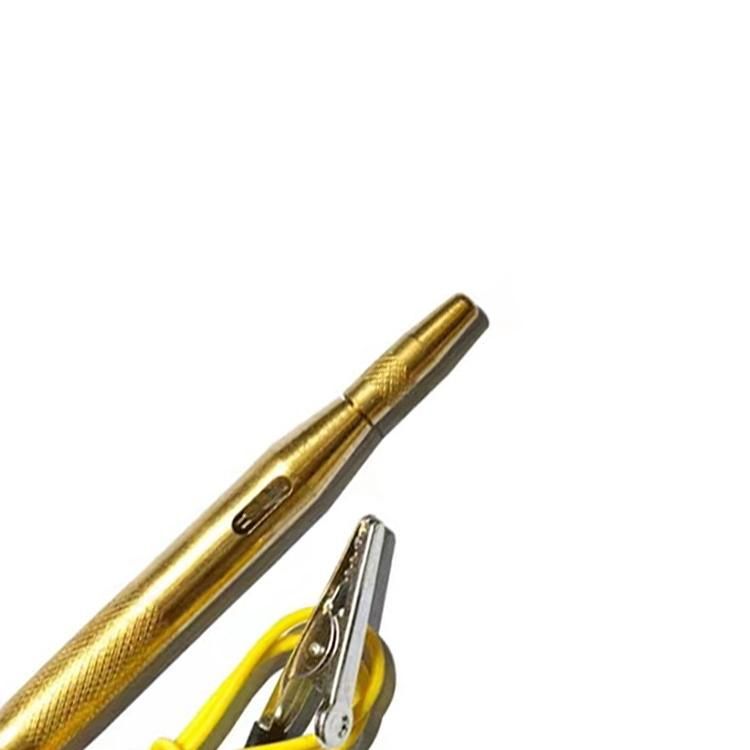

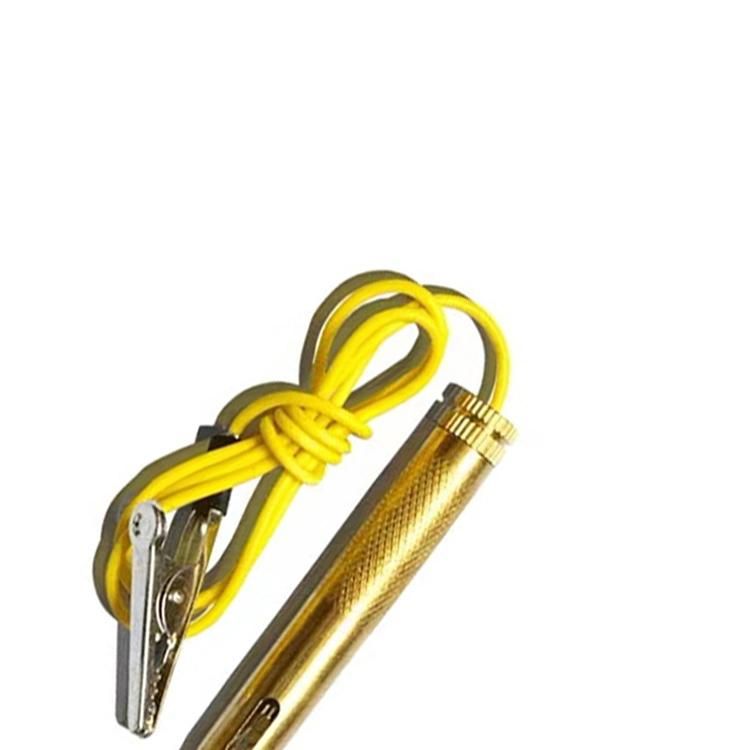

Model No.85016 (16-0103)Product name:CIRCUIT TESTER (auto metal tester leader)Test range:6-12-24V DC for boats, airplanes, trailers, syclers, mopedsBody material: BrassUnit packageEach piece with one blisterNet weight27gTESTER INSTRUCTIONS
DO NOT USE WITH IGNITION SYSTEMS EXCEPT AS SHOWN BELOW:

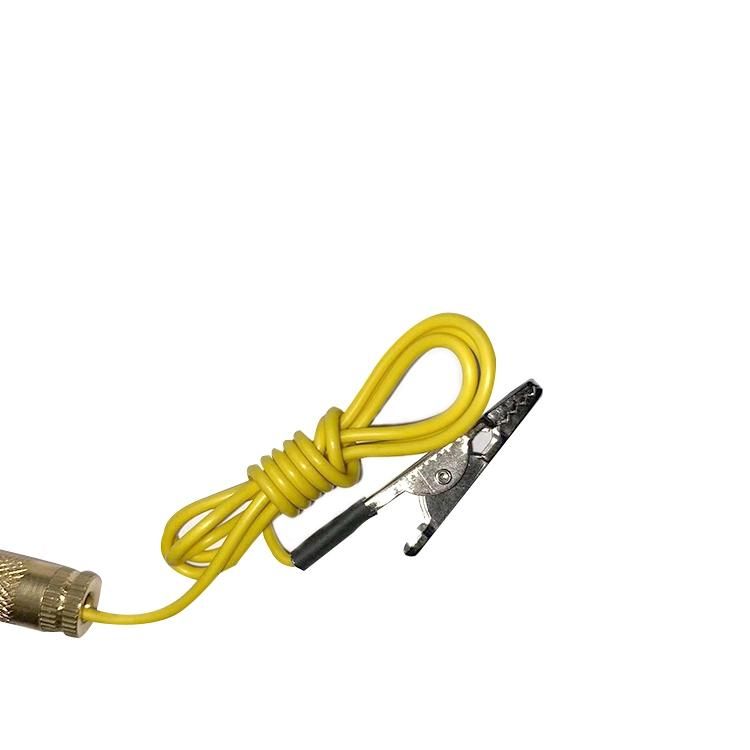

A. Connect the clip to chassis or to any ground.
B. To find live wires

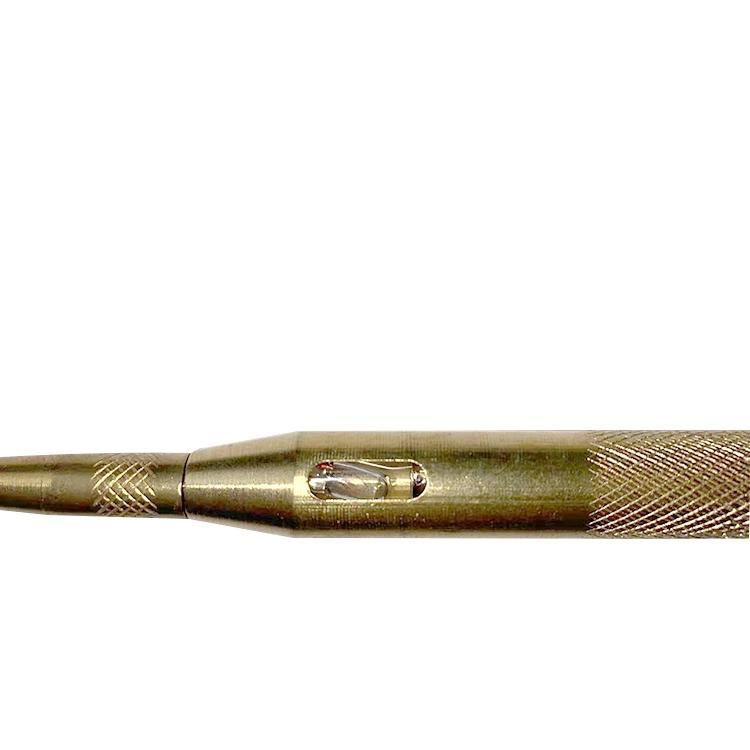

     Probe wire and if it is live, the light in the handle will glow.
C. To find broken wires
     Probe alone wire untill the teser does not light. This will tell you the point at which wire is broken.
D. To test fuses
     Touch the tip of the tester to terminal after fuse. If tester glows, then fuse is good.
E. To test light sockets (Break lights, Back-up lights, ETC.)
     Touch alligator clip to chassis or ground and then probe to the tongue at the based of the shell.
The tester is for DC testing only, do not use of AC vlotage testing.
We are the professional tester manufactuer in Ningbo export all kinds of low voltage tester (AC up to 500V, DC up to 24V), We have full
experience with different country customers demand. OEM is acceptable.
We also produce the screwdriver type testers and induction test pen. We have own mould work shop for develop new design. Hope you
will satisfy with our products.
