• Model NO.：Non-standard
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：600mm
• Extraction：350mm High Raised Basement
• Extraction Area：27.6m2
• Grids Carrying Capacity：650kg,Wheel
• Walls：50mm Rock Wool Walls
• Brightness：>1,000lux
• Air Volume：28,000m3,H
• Empty Loaded Air Speed：0.28m,S
• Maximum Working Temperature：80 Celsius
• Rated Power：20kw
• Transport Package：Goods Packed by Polyfoam and Loaded on Metal Frame
• Specification：6900 X 4000 X 2800mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. Non-standard Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Plenum (Height) 600mm Extraction 350mm High Raised Basement Extraction Area 27.6m2 Grids Carrying Capacity 650kg/Wheel Walls 50mm Rock Wool Walls Brightness >1,000lux Air Volume 28,000m3/H Empty Loaded Air Speed 0.28m/S Maximum Working Temperature 80 Celsius Rated Power 20kw Transport Package Goods Packed by Polyfoam and Loaded on Metal Frame Specification 6900 X 4000 X 2800mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Car Paint Cabin/Auto Paint Cabin/Auto Spray Cabin With Infrared for Auto Painting

E701 Car Paint Cabin/Auto Paint Cabin/Auto Spray Cabin With Infrared for Auto Painting is designed for customers who look for cost-efficient painting solution, but also require super paint refinishing effect. Same as INFITECH's higher range of spray booths, E701 paint drying booth also comes with full downdraft airflow, and air volume as high as 28,000m³/h.
In combination with preparation areas and paint mixing room, it can adapt to almost every auto body shop's daily applications.

1.SPECIFICATIONS

ITEMS	Car Paint Cabin/Auto Paint Cabin/Auto Spray Cabin With Infrared for Auto Painting SPECIFICATIONS
Model	E701 PAINT DRYING BOOTH
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	6900 X 4000 X 2800mm (L X W X H)
External dimensions	7110 X 5570 X 3810mm (L X W X H)
Airflow	Full Downdraft
Plenum (height)	600mm
Extraction	Through 350mm high raised basement
Extraction area	27.6m2
Grids carrying capacity	650kg/wheel
Entrance door	3200x2700mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 6 X 18W, 864W total
Brightness	>1,000LUX
Filters	Pre-filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x7.5KW, CE motor
Air volume	28,000m3/h
Empty loaded air speed	0.28m/s
Heats	Infrared heating lamps
Heats - OPTION	A: 200kw heat exchanger, RIELLO diesel burner RG5S B: Electric heating tube
Maximum working temperature	80ºC
Controls	CE standard control box
Rated power	20KW

2.DETAILS
AIRFLOW & BOOTH STRUCTURE

• Full downdraught airflow
• 600mm high plenum
• Basement in options

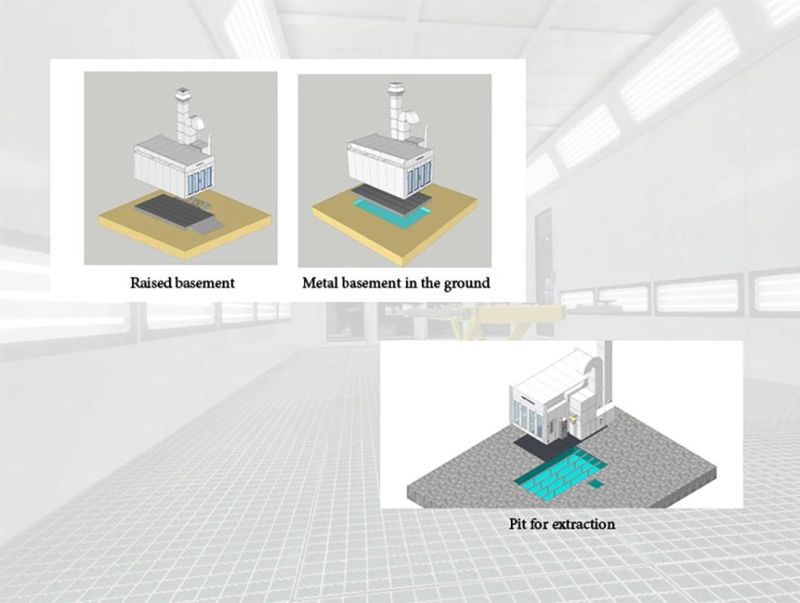

A - Raised basement
B - Metal basement in the ground
C - Pit for extraction

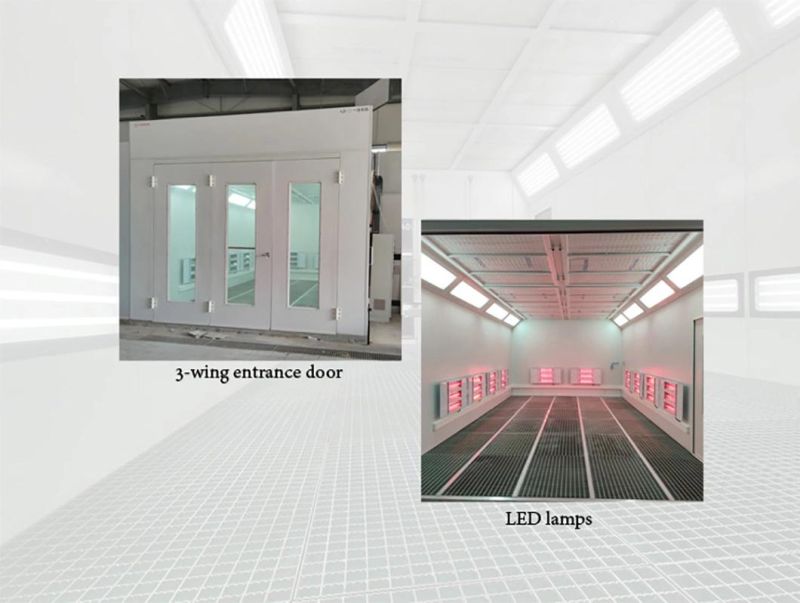

ENTRANCE DOOR & LIGHTS

• 3-wing entry door with large safety glass windows
• LED lamps

AIR HANDLING UNIT

• Direct-drive fan unit, non-spark fan
• Cylinder-drive paint-bake conversion damper

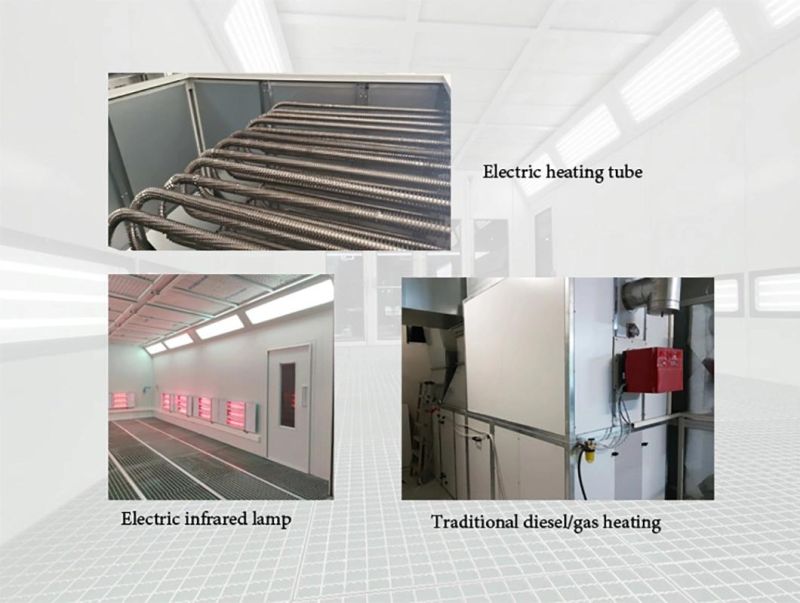

Heats
OPTION A: Electric heating tube
OPTION B: Electric infrared heating
OPTION C: Traditional diesel/gas heating


CONTROL

• Spray, bake, and cooling cycle

FAQQ: Can I add sidewall lights to the paint drying booth?A: Yes.
 Q: How long is the production time?A: Approx. 20 days based on standard voltage.
 Q: Can you offer EPS panels for walls?A: It is okay. But we do not recommend EPS panels. On one hand, EPS panels cannot resist temperature as high as rock wool panels, on the other hand, EPS panels cannot help save that much, while rock wool panels are slightly more expensive but much safer.
 Q: I want grids with higher carrying capacity.A: That's okay. You can advise the required carrying capacity of the grids, then we quote and supply according to your requirements.
 Q: What are the differences among the 3 heating methods proposed above?A: The price for the 3 different heating methods is almost the same in general.
Electric heating tube: The electric heating system adopts high efficiency stainless steel fin heater, transferring the hyper-thermal heat to the air. This heating method requires high electric power supply. Based on temperature increase capability of 20ºC, the heating power is 90KW.

Electric infrared lamp: The short-wave infrared lamps effectively allow the paint material to dry from the inside to the outside, ensuring complete evaporation of the volatile components.

Traditional diesel or gas heating: It consumes fuel (gas or diesel). For indirect heating, the heating system comes with stainless steel heat exchanger, which is for exchanging the heat generated by the fuels to the air passing through the surface of the heat exchanger.

For paint drying booth with electric heating tube or diesel/gas heating, the heated air flows across the painted surface and allow the paints to dry evenly. This type of booth can offer heating spraying function, while booth with electric infrared lamp only cannot have the heating spraying function. You can choose the heating system based on the actual conditions and applications.
