• Model NO.：IT-PMR-5000
• Condition：New
• Walls：50mm Rock Wool Walls
• Brightness：>500lux
• Noise：<72dB
• Warranty：2 Years
• Entrance Door：800X2000mm (Wxh), 1 Set
• Filters：Pre-Filter, Exhaust Filter
• Air Volume：3,500m3,H
• Controls：Start Directly
• Rated Power：2kw
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：5000 X 3000 X 2800mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. IT-PMR-5000 Condition New Walls 50mm Rock Wool Walls Brightness >500lux Noise <72dB Warranty 2 Years Entrance Door 800X2000mm (Wxh), 1 Set Filters Pre-Filter, Exhaust Filter Air Volume 3,500m3/H Controls Start Directly Rated Power 2kw Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 5000 X 3000 X 2800mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Customized Paint Preparation Room

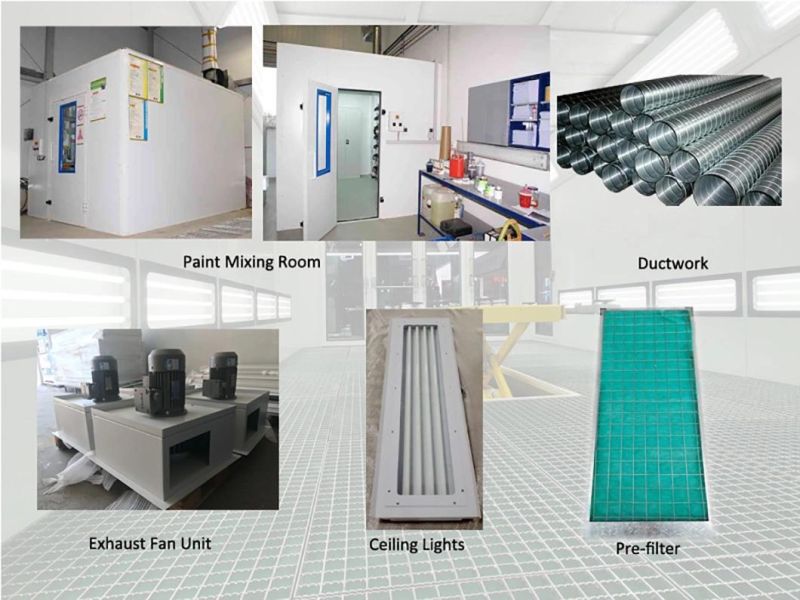

Paint mixing room is manufactured from double skinned and insulated rock wool panels.
Air is pre-filtered through fiberglass filter at the ceiling of the roof, and it flows to the inside of the room. The exhaust chamber is located at the lower part of the other end of the booth to ensure that all contaminants are completely removed from the room.
Lighting is supplied with each paint mixing room.
The extraction unit starts working first, and only after 15 seconds it works, can the lights be turned on.
The paint mixing room can be supplied with a choice of mixing benches and paint test tables.


ITEMS	SPECIFICATIONS
Model	IT-PMR-5000 Industrial Paint Mixing Room
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	5000 X 3000 X 2800mm (L X W X H)
External dimensions	5110 X 3110 X 2850mm (L X W X H)
Entrance door	800x2000mm (WxH), 1 set
Walls	50mm rock-wool panels
Top lights (LED)	4 sets, each 4 X 18W, 288W total
Brightness	>500LUX
Filters	Pre-filter, exhaust filter
Exhaust unit	Direct-type turbine fan, 1x1.5kW, CE motor
Air volume	3,500m3/h
Controls	Start directly
Protect function	First ventilation and after 15 seconds the lights start
Rated power	2kW

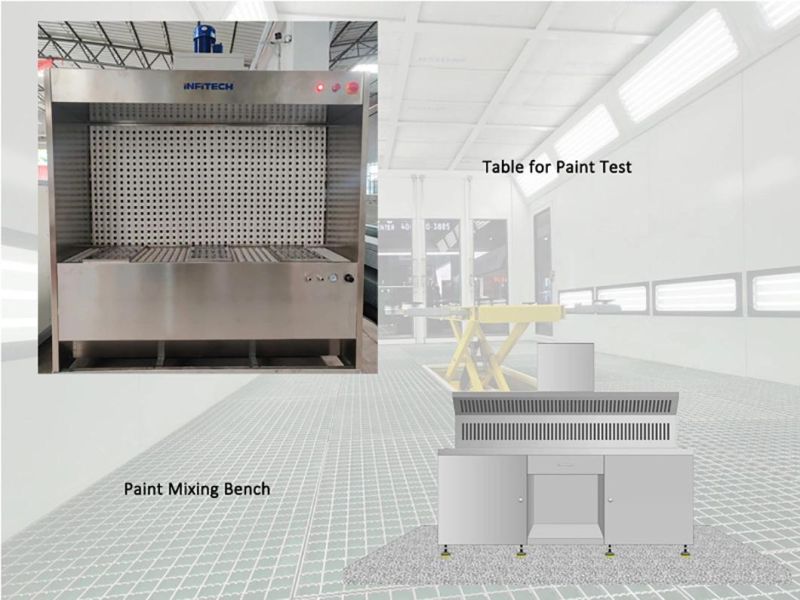

OPTION

• Paint mixing bench
• Table for paint test

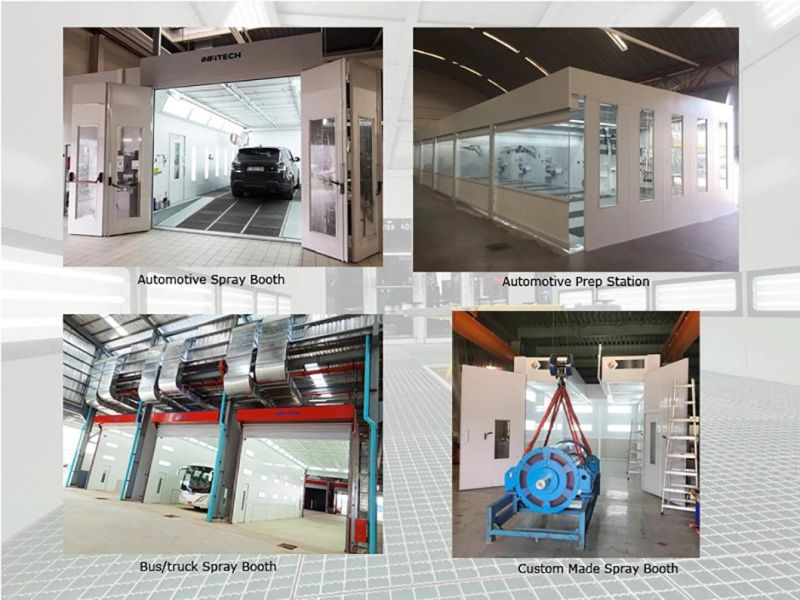

RELATED PAINT BOOTH PRODUCTS

FAQQ: What is the voltage? Can you follow the supplied voltage?A: The standard power supply is 380V, 50Hz, 3ph. We can follow your specific voltage requirements.
 Q: Can I buy the optional paint mixing bench or table for paint test separately? What is the MOQ?A: Yes. The MOQ is 1 set.
 Q: Is it difficult to install?A: The industrial paint mixing room is designed for easy installation. The assembly can be finished within 1-2 days by 2 people.
 Q: Can I have single layer galvanized steel for the industrial paint mixing room?A: That's okay.
 Q: I need to buy a spray booth and paint mixing room. There should be a service door shared by both the spray booth and mixing room.A: Yes. The service door shared by both offers the convenience to transfer the paints to spray booth. Please send your draft layout through, we will work the solution for your reference then.
