Economic Type Nice Quality Car Spray Paint Booth with Italy Diesel Burner
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE, CSA, GS, UL, SGS, ISO
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55B
- Coating：Painting
- Airflow Direction：Cross-flow Type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Size：6900*3900*2700
- Panel：50mm EPS Foam Panel
- Grid Plates：2rows
- Intake Fan：2set
- Exhaust Fan：1set
- Filter：3-Stage Filtration System
- Heating Energy：Oil, Gas, Waste Oil Burner
- Heat Converter：Stainless Steel
- Upper Light：Available
- Side Light：for Option
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Related Product：Car Lift,Car Preparation Room Bay
- Transport Package：Standard Package for Sea Shipment
- Specification：25 cbm for FCL
- Trademark：Hongyuan
- Origin：China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55B Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Size 6900*3900*2700 Panel 50mm EPS Foam Panel Grid Plates 2rows Intake Fan 2set Exhaust Fan 1set Filter 3-Stage Filtration System Heating Energy Oil, Gas, Waste Oil Burner Heat Converter Stainless Steel Upper Light Available Side Light for Option Control Automatic Drawing Available User Manual Available Related Product Car Lift/Car Preparation Room Bay Transport Package Standard Package for Sea Shipment Specification 25 cbm for FCL Trademark Hongyuan Origin China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Economic Type Nice Quality Car Spray Paint Booth with italy diesel burner1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Economic Type Nice Quality Car Spray Paint Booth with italy diesel burner
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates |
| Intake | TWO set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner/electric heaters/Gas burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

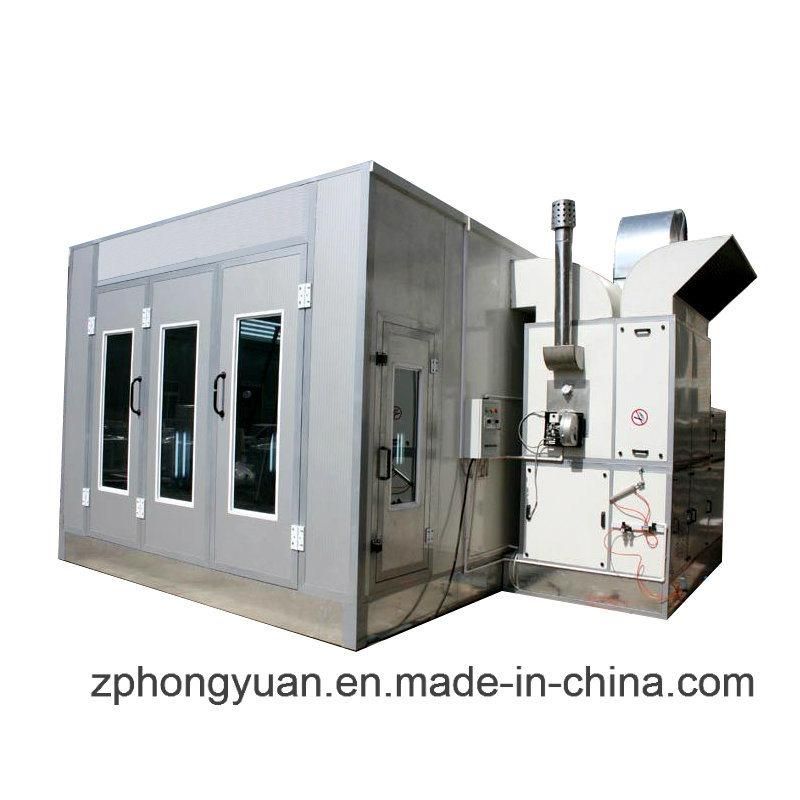

Picture of the Economic Type Nice Quality Car Spray Paint Booth with italy diesel burner

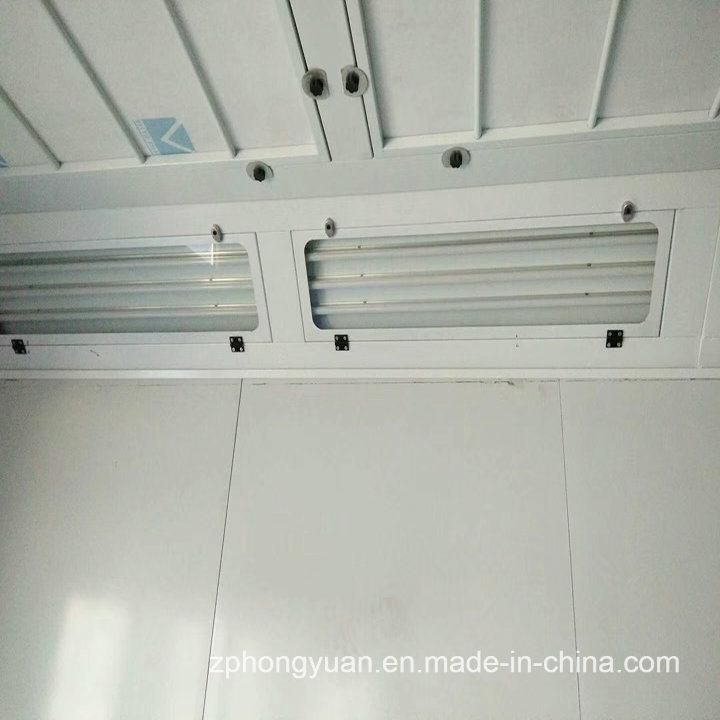

Parts picture show of the spray booth
Parts picture of our Economic Type Nice Quality Car Spray Paint Booth with italy diesel burner

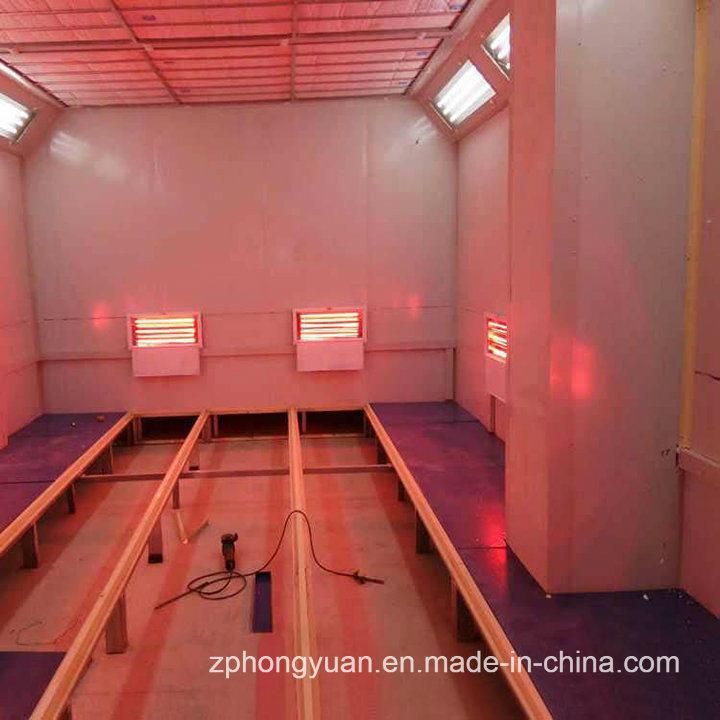

Project case for our Economic Type Nice Quality Car Spray Paint Booth with italy diesel burner
