Automatic Car Paint Booth with Italy Diesel Oil Burner for Sale
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- Warranty：12months
- Type：Spray Booth
Base Info
- Model NO.：HY-CB55B
- Certification：CE, CSA, GS, UL, ISO, SGS
- Substrate：Steel
- Brand：Hongyuan
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White, Grey
- Panel：50,75mm Thickness EPS Foam Panel
- Grates：2rows
- Intake Fan：2set
- Exhaust Fan：1set
- Filter System：4-Stage Filtration
- Heating System：Diesel, Oil
- Upper Lights：Available
- Side Lights：for Option
- Control Box：English Panel
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Preparation Room Bay,Paint Mix Room
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
- Package size per unit product：500.00cm * 200.00cm * 200.00cm
- Gross weight per unit product：1200.000kg
Description
Basic Info.
Model NO. HY-CB55B Certification CE, CSA, GS, UL, ISO, SGS Substrate Steel Brand Hongyuan Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 50/75mm Thickness EPS Foam Panel Grates 2rows Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Diesel, Oil Upper Lights Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Preparation Room Bay/Paint Mix Room Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthPackaging & Delivery
Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1200.000kgProduct Description
Introduction of the Automatic Car Paint Booth with Italy diesel Oil Burner for Sale1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Automatic Car Paint Booth with Italy diesel Oil Burner for Sale
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <13kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2row of grates and 3rows of diamond plates. |
| Intake | TWO sets of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner./electric heating system/Riello gas burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

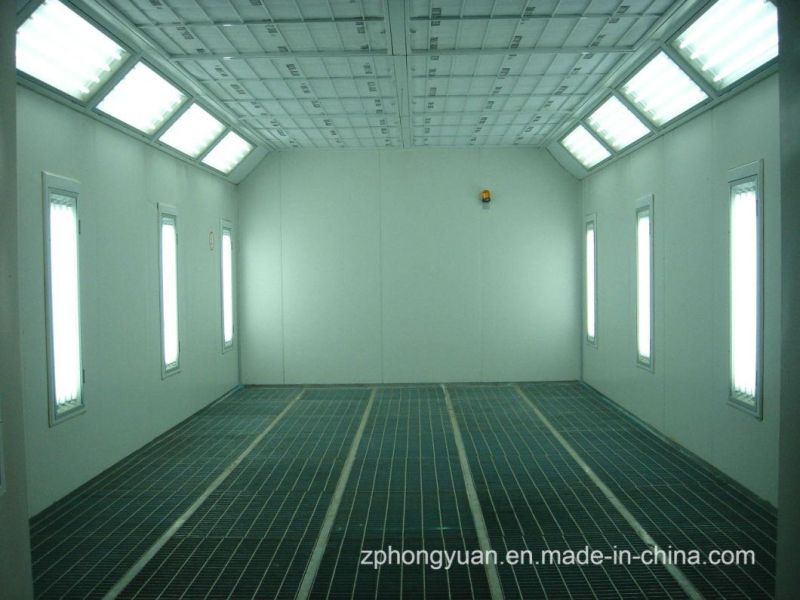

Picture of the Automatic Car Paint Booth with Italy diesel Oil Burner for Sale
details show of paint booth/Automatic Car Paint Booth with Italy diesel Oil Burner for Sale

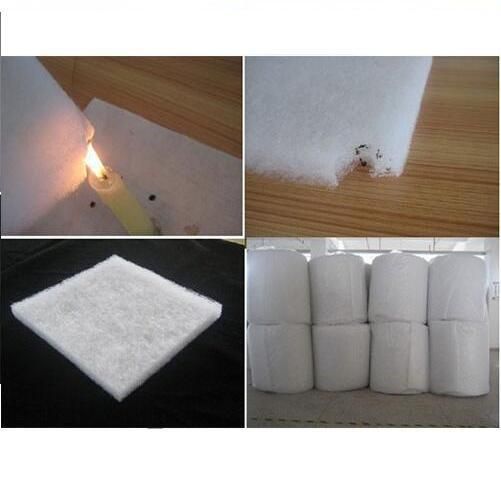

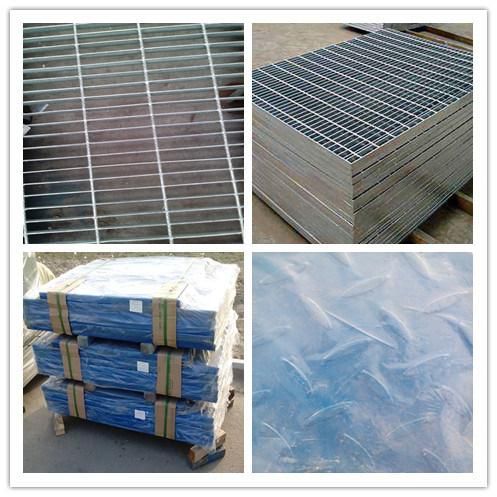

parts show of paint booth/Automatic Car Paint Booth with Italy diesel Oil Burner for Sale
Production area and equipment for Automatic Car Paint Booth with Italy diesel Oil Burner for Sale
Project case for paint booth/Automatic Car Paint Booth with Italy diesel Oil Burner for Sale
Certificate of our product and company
