• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Side Door Size：600*1800
• Panel：50,75mm EPS Foam Panel
• Intake Fan：1set
• Exhaust Fan：1set
• Heating System：Oil, Gas, Electricity
• Heat Converter：Stainless Steel
• Upper Light：Available
• Side Lights：for Option
• Control Box：English Panel
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Car Lift,Car Preparation Room Bay
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：N,A
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Side Door Size 600*1800 Panel 50/75mm EPS Foam Panel Intake Fan 1set Exhaust Fan 1set Heating System Oil, Gas, Electricity Heat Converter Stainless Steel Upper Light Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Car Preparation Room Bay Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin China Production Capacity 100 Set Per Month

Product Description

Introduction of the Automotive Paint Spray Booth with Electric Heat Element or italy diesel burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Automotive Paint Spray Booth with Electric Heat Element or italy diesel burner

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<13kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2row of grates and 3rows of diamond plates.
Intake	two set of fan, motor: 4.0kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner./electric heating system/Riello gas burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

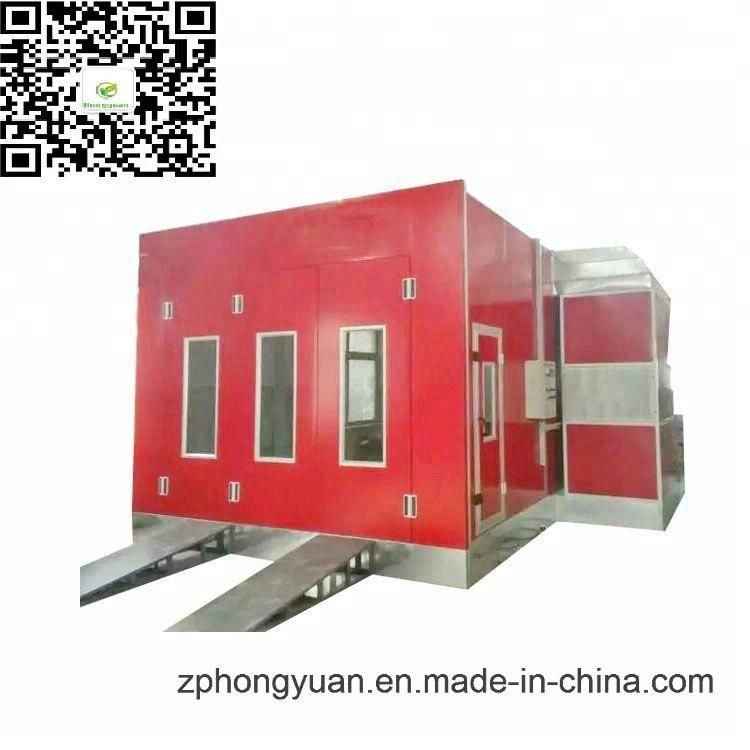

Picture of the Automotive Paint Spray Booth with Electric Heat Element or italy diesel burner




Details show of Automotive Paint Spray Booth with Electric Heat Element or italy diesel burner



parts show of Automotive Paint Spray Booth with Electric Heat Element or italy diesel burner





Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time

Send us inquiry about our Automotive Paint Spray Booth with Electric Heat Element or italy diesel burner
