• Model NO.：HY-CB55A
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Steam
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：2rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Related Product 1：Large Truck Paint Spray Booth
• Related Product 2：Folding Retractable Paint Spray Booth
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Steam Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Auto paint spray booth for car and minivan with diesel Burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner

Model	HY-CB55A
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<15kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 3 rows of grates and 2rows of the diamond plate.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello one-stage oil burner./gas burner/electricity.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

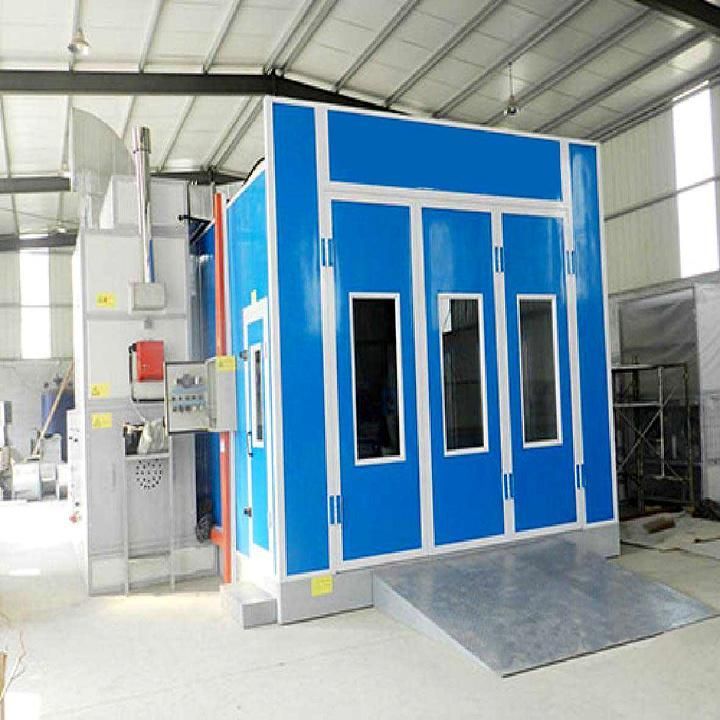

Picture of the Auto paint spray booth for car and minivan with diesel Burner

details show of paint spray booth for car and minivan with diesel Burner


parts show of paint spray booth for car and minivan with diesel Burner

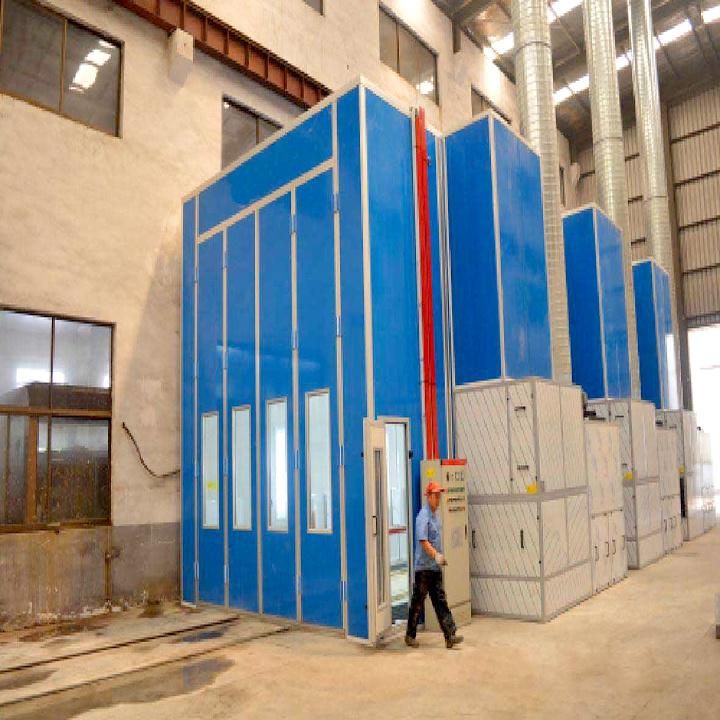

Project case for paint booth
