Car Paint Booth with Gas Diesel Burner and Heat Insulation Panel
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12month
- Type：Spray Booth
- Certification：CCC, CE, CSA, GS, UL, ISO, SGS
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55B
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Wall Panel：50mm EPS Panel
- Ceiling Panel：Galvanized Steel
- Intake Fan：2sets
- Exhaust Fan：1set
- Heat Converter：Stainless Steel
- Burner：Gas or Diesel, Oil, Waste Oil Burner
- Filter：4-Stage Filtration System
- Upper Light：Available
- Side Lights：for Option
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Car Lift,Tire Changer,Wheel Balancer
- Transport Package：Standard Package for Sea Shipment
- Specification：25 cbm for FCL
- Trademark：Hongyuan
- Origin：China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Wall Panel 50mm EPS Panel Ceiling Panel Galvanized Steel Intake Fan 2sets Exhaust Fan 1set Heat Converter Stainless Steel Burner Gas or Diesel, Oil, Waste Oil Burner Filter 4-Stage Filtration System Upper Light Available Side Lights for Option Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Tire Changer/Wheel Balancer Transport Package Standard Package for Sea Shipment Specification 25 cbm for FCL Trademark Hongyuan Origin China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Car Paint Booth with Gas diesel Burner and heat insulation Panel1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Car Paint Booth with Gas diesel Burner and heat insulation Panel
| Model | HY-CB55B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grid plates, 3rows of diamond plates. |
| Intake | TWO set of fan, motor: 4.0kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner/electric heaters/Gas burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

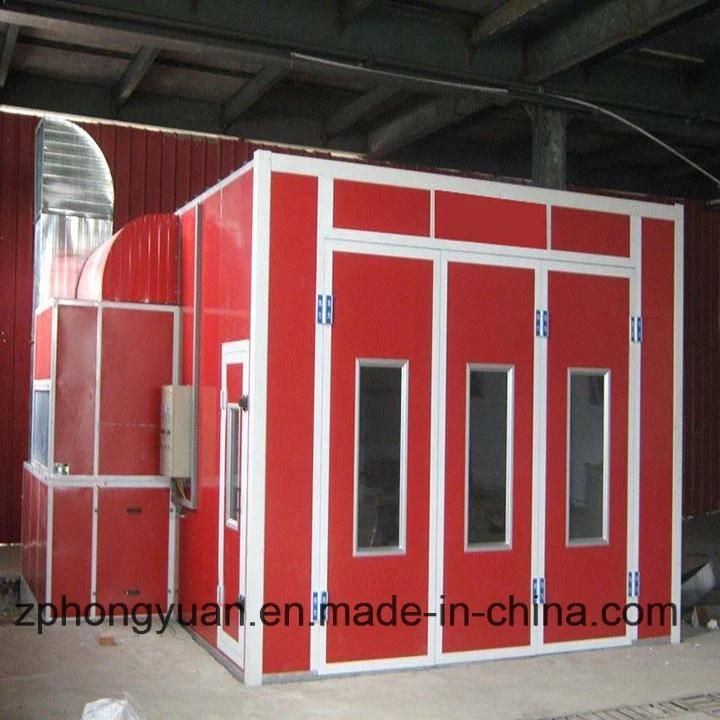

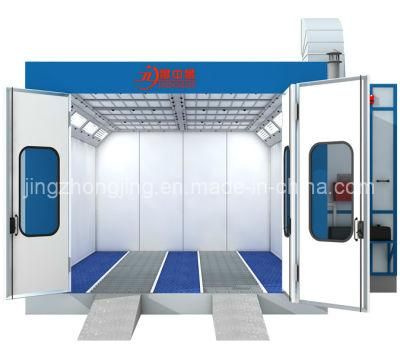

Picture of the Car Paint Booth with Gas diesel Burner and heat insulation Panel
