• Model NO.：SJG3-3
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Item：Car Parking Elevator
• Applition：Car Parking Lift Portable Gar
• Frame Finishing：Antirust Painting
• Pressure Treated Wood Type：Heat Treated
• Installation：Underground
• Sail Finishing：Antirust Coating
• Sail Material：Steel
• Ift System：Hydraulic System
• Using：for 2 Cars
• Metal Type：Steel
• Transport Package：Solid Iron Case or Plywood Case Package
• Specification：CE ISO9001 SGS
• Trademark：SDLIFT
• Origin：Shandong, China (Mainland)
• Production Capacity：2000sets,Year

MODEL
LOAD CAPACITY
PLATFORM SIZE
LIFT HEIGHT
PIT DEPTH
POWER
SJG2.5-3
2.5T
5.2m x 2.6m
3m
750mm
220V, 240V, 380V or 400V
SJG2-6.5
2T
5.2m x 2.8m
6.5m
800mm
220V, 240V, 380V or 400V
SJG2.5-3.5
2.5T
5.2m x 2.6m
3.5m
800mm
220V, 240V, 380V or 400V
SJG2.5-5
2.5T
5.6m x 3m
5m
800mm
220V, 240V, 380V or 400V
SJG3-2.5
3T
5m x 2.3m
2.5m
750mm
220V, 240V, 380V or 400V
SJG3-3
3T
5.2m x 2.6m
3m
800mm
220V, 240V, 380V or 400V
SJG3-3.5
3T
5.6m x 2.7m
3.5m
800mm
220V, 240V, 380V or 400V
SJG5-10
5T
4.5m x 2.5m
10m
1150mm
220V, 240V, 380V or 400V
SJG8-2.5
8T
6.5m x 4.5m
2.5m
850mm
220V, 240V, 380V or 400V
SJG12-3
12T
5.5m x 2.8m
3m
950mm
220V, 240V, 380V or 400V
SJG15-4.5
15T
8m x 2.2m
4.5m
1150mm
220V, 240V, 380V or 400V
SJG20-5
20T
6m x 3m
5m
1200mm
220V, 240V, 380V or 400V
 The  car parking elevator  can be customized as your detailed size.

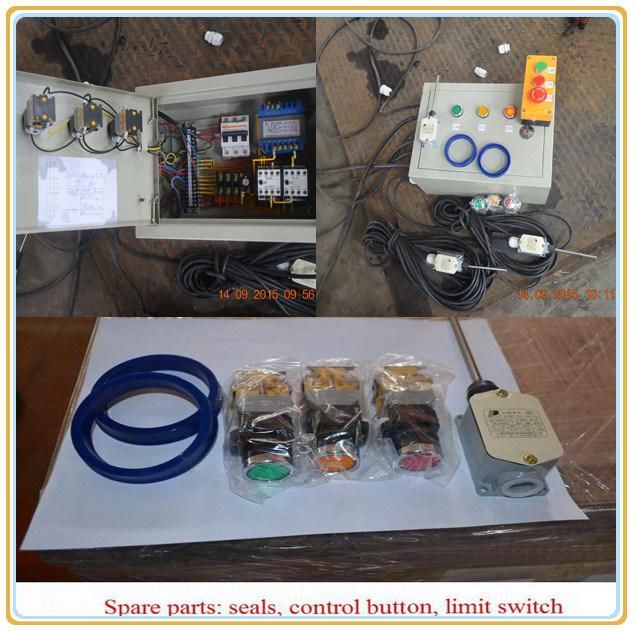

Parts showing:


Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 80*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps car parking elevator  to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car parking elevator  are passed 1.2 times loading test before leaving factory.

Our services:
1) We can design the car parking elevator r as per your requirement.
2) The most suitable car parking elevator will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
    Engineers are available to your country if necessary.
