• Model NO.：MP808TS
• Update Method：by Internet
• Type：Diagnostic Scanner
• Software Update：1 Year Free Update
• Operating System：Android, Kitkat
• Processor：Cortex-A9 Quad-Core Processor (1.4 GHz)
• Memory：64GB
• Display：7-Inch LCD Capacitive Touchscreen
• Sensors：Light Sensor for Brightness Auto Adjust
• Power：3.7 V,5000 mAh Lithium-Polymer Battery
• Battery：Charges Via 5 VDC Power Supply
• Tested Battery Life：Around 7 Hours of Continuous Use
• Power Consumption：600 Ma (LCD on with Default Brightness, Wi-Fi on)
• Operating Temp：0 to 55
• Storage Temp：20 to 60
• Dimensions(Wxhx D)：270.8 mm X 176.0 mm X 36.0 mm
• Net Weight：885 G (2.31 Lb.)

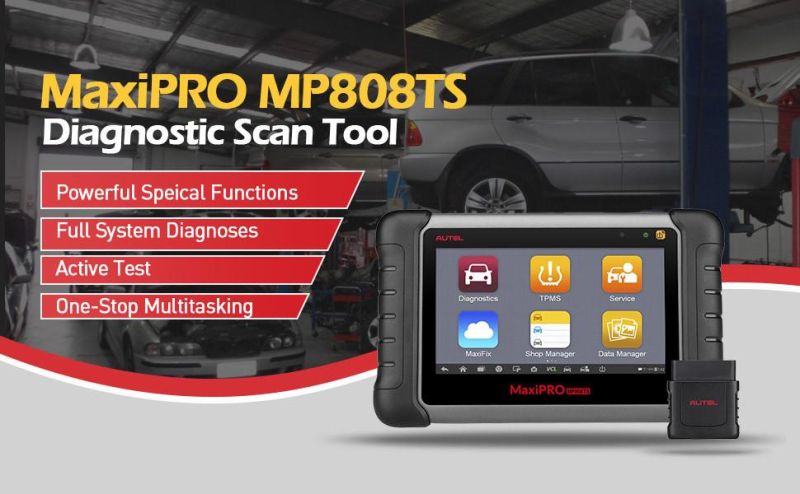

• Model Name：Maxipro MP808ts
• Transport Package：Carton Package
• Trademark：Autel
• Origin：China
• HS Code：9031809090
• Production Capacity：500PCS,Month

Recommended Use

Indoor

Operating System

Android 4.4.2, KitKat

Processor

Cortex-A9 quad-core processor (1.4 GHz)

Memory

32GB

Display

7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity

· Mini USB 2.0

· USB 2.0

· Wi Fi

· HDMI Type A

· Micro S D c ar d slot (supports up to 32GB)

Sensors

Light sensor for brightness auto adjust

Audio input/output

Input: N/A

Output: Beep

Power and Battery

3.7 V/5000 mAh lithium polymer battery

Charges via 5 VDC power supply

Tested Battery Life

Around 7 hours of continuous use

Battery Charging Input

5 V/1.5 A

Power Consumption

600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V

Operating Temp.

0 to 55°C(32 to 1 31 °)

Storage Temp.

-20 to 60°C ( 4 to 140 °)

Operating Humidity

5% - 95% non-condensing

Dimensions (W *H *D)

270.8 mm (10.0") * 176.0 mm (6.9") * 36.0mm (1.4")

Net Weight

885g (2.31 lb.)
