• Model NO.：M2-9CA
• Condition：New
• Brand：Baohua
• Design：Two Post
• Lifting Heigh：1850mm
• Lifting Time：50s
• Total Height：3700mm
• Total Width：3300mm
• Column Width：2720mm
• Weight：700kg
• Power Supply：220V,380V
• Minimum Height：101
• Transport Package：Export Packing
• Trademark：BaoHua
• Origin：China(Mainland)
• Production Capacity：1000set,Month

Basic Info.

Model NO. M2-9CA Condition New Brand Baohua Design Two Post Lifting Heigh 1850mm Lifting Time 50s Total Height 3700mm Total Width 3300mm Column Width 2720mm Weight 700kg Power Supply 220V/380V Minimum Height 101 Transport Package Export Packing Trademark BaoHua Origin China(Mainland) Production Capacity 1000set/Month

Product Description

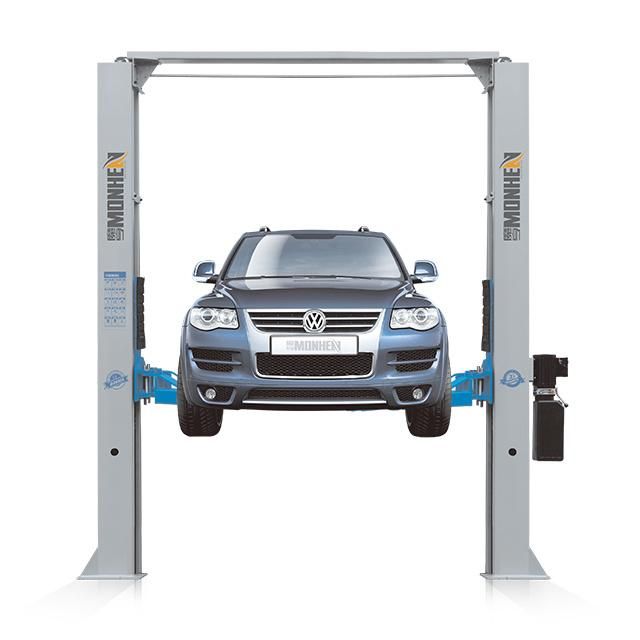

Hydraulic Two Post Car Lift/Auto Repair Equipment

Feature
1.Straight joint transmission design and the greater degree decreased the lifting machine vulnerable and failure rate.
2.Double hydraulic pressure ram, design and manufacture for each cylinder according to American standards association standard, and the cylinder seal packing collar uses the American PARKER oil seal.3.Including the oiliness slide, does not need to lubricate, does not need to maintain.
4.Adjustable mode rubber support pad;
5.Does not have the ledger wall, does not hinder the ground work.
6.Super-height auto-stop protective device.
7.Simple, reliable hydraulic system
8.China and the United States integrated technical production


Technical parameter
Double hydraulic cylinders drive,stable lifting
Chain lifting system and wire rope fix system.
Seal ring and Hydraulic cylinder are imported from USA.
With manual unlock from two sides



Products name	Two post gantry car lift
Capacity	4000KGS
Lifting height	1850mm
Lifting speed	50s
Height	3700mm
Total width	3695mm
Distance between post	3050mm
Mini.height	101mm
Voltage	220V/380V
Weight	850kgs

Installation:
1.Please make sure that 2posts are 90degree vertical to ground.
2.Please add 11L 46# Hydraulic oil(mining oil)into hydraulic cylinder.3.It is better to change hydraulic oil after 1year.
