• Model NO.：HY-TC985R
• Automatic：Automatic
• Standard：Standard
• Certification：CE, ISO
• Condition：New
• Name：Single Cylider Right Helper Arm Tire Changer
• Function：Change and Install Tires
• Motor：1.1,0.75kw
• Power：220,380V
• Pressure：8-10bar
• Wheel Width：450mm
• Wheel Diameter：1040mm
• Net Weight：200kg
• Gross Weight：230kg
• Package Size：1200*900*950mm
• Related Product 1：Car Paint Booth
• Related Product 2：Car Lift
• Related Product 3：Wheel Balancer
• Related Product 4：Car Auto ATV UTV Electric Winch
• Related Product 5：Air Pneumatic Balloon Jack
• Transport Package：Plywood Box
• Specification：1.5cbm for LCL shipment
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100sets Per Week

Basic Info.

Model NO. HY-TC985R Automatic Automatic Standard Standard Certification CE, ISO Condition New Name Single Cylider Right Helper Arm Tire Changer Function Change and Install Tires Motor 1.1/0.75kw Power 220/380V Pressure 8-10bar Wheel Width 450mm Wheel Diameter 1040mm Net Weight 200kg Gross Weight 230kg Package Size 1200*900*950mm Related Product 1 Car Paint Booth Related Product 2 Car Lift Related Product 3 Wheel Balancer Related Product 4 Car Auto ATV UTV Electric Winch Related Product 5 Air Pneumatic Balloon Jack Transport Package Plywood Box Specification 1.5cbm for LCL shipment Trademark Hongyuan Origin Shandong, China Production Capacity 100sets Per Week

Product Description

Detailed specification of the Single cylider right helper arm tire changer

Name	Parameter for HY-TC985R
Outer Clamp	10-20inch
Inner Clamp	12-24inch
Max wheel width	450mm
Max wheel diameter	1040mm
Air supply	8-10Bar
Power Supply	220/380V
Motor	0.75/1.1kW
Gross weight	220kg
Net weight	190kg
Packing dimension	1200*900*900mm
Color for option	Blue/Red/as required
Main function	change and install tires, with Singl cylinder right help Arm.

Main advantages of the Single cylider right helper arm tire changer

1. Sturdy machine cabinet and 24" large turntable greatly increase work strength

2. Deluxe pneumatic controlled tilting column for easy operation.

3. Independent right helper arm,with pneumatic tyre lifting device which can be lifted at any working position, makes it laborsaving and convenient to demount and mount tyres,Tyre pressing roller is suitable for various high class tyres.

4. 360 degree rotary tyre pressing helper arm increase working coverage and is suitable for bigger and wider tyres.

5. Combined type tyre pressing head has functions of lifting type , pressing tyre and central positioning

6. Four angle directional adjustable tyre pressing shovel is suitable for pressing various low pfofile tyres from different angles.

7. Leverless demounting/mounting head makes tyre demounting/mounting easy without lifting lever.

8. Quality: it gained CE certificaiton.

   Production area and equipment for Single cylider right helper arm tire changer

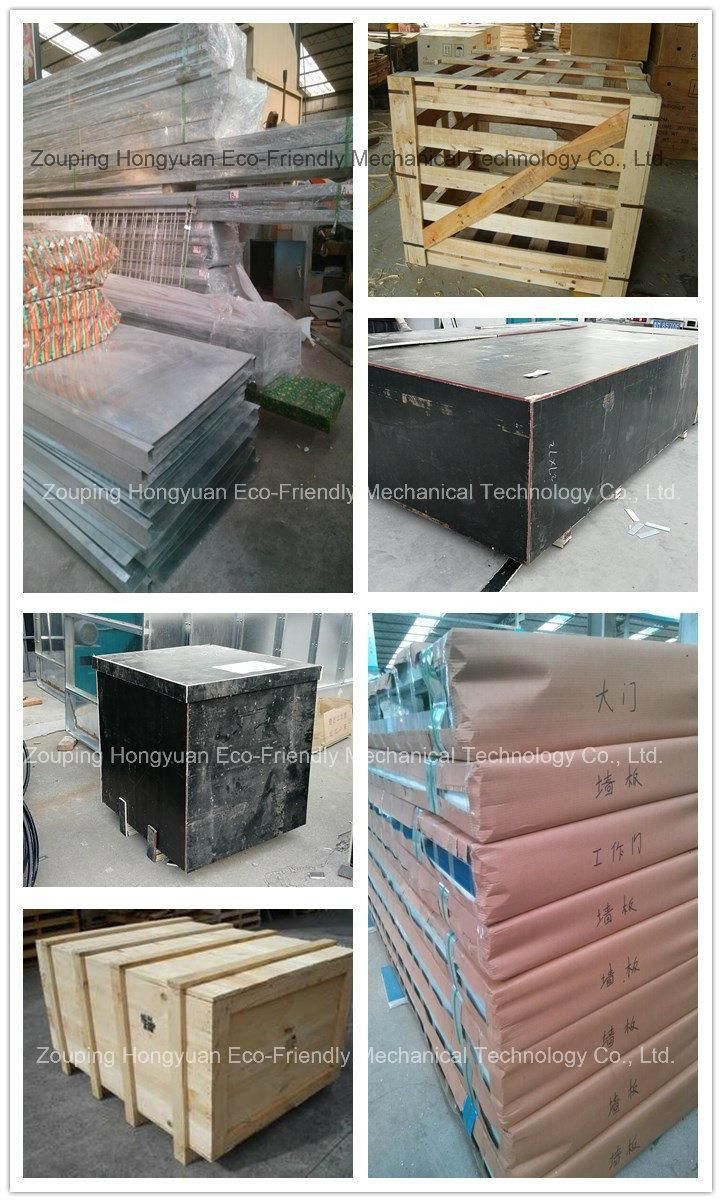

Package Show of Single cylider right helper arm tire changer


Certificate of our product and company

Our Team is serving you at any time

Send us inquiry for more info about Single cylider right helper arm tire changer
