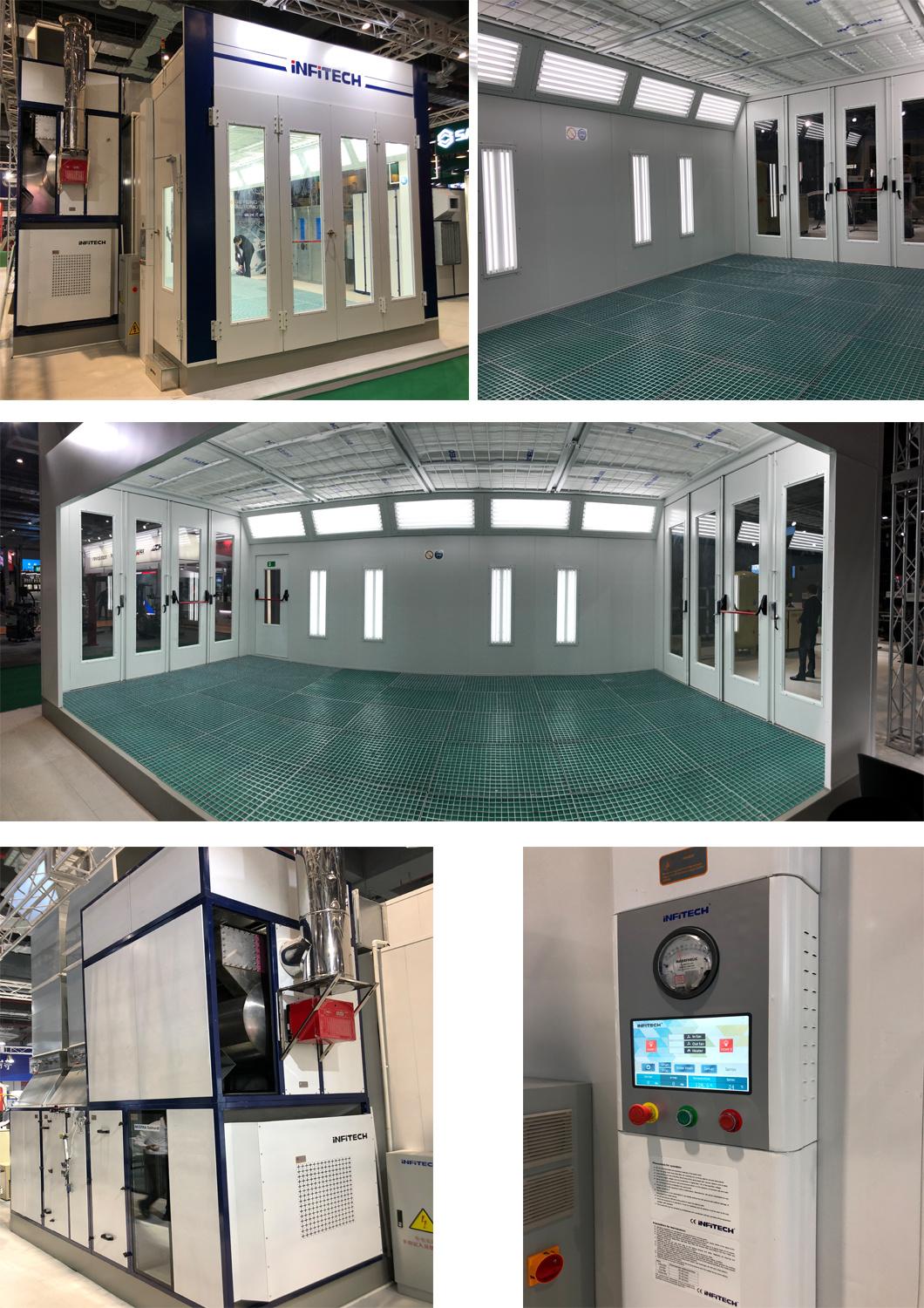

Infitech Hot Sale Ce Compliant High Efficiency Commercial Vehicle Spray Booth with Pneumatic Ramp
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas
Base Info
- Model NO.：IT-SUPER-L8
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：White
- Walls：50mm Rock Wool
- Plenum：600mm High
- Basement：350mm High
- Ramp：Pneumatic
- Personnel Door：800X2000mm
- Entrance Door：3400X3250mm
- Illumination：>1,500lux
- Motor：2X11kw, Explosion-Proof
- Fans：Big Impeller, Centrifugal
- Heat Exchanger：315kw
- Burner：Gas Burner, Riello RS5d
- Noise：<78dB
- Usage：Auto Painting and Baking
- Key Word：Automotive Spray Booth
- Transport Package：Polyfoam and Metal Frame
- Specification：8000x4000x3000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：900 Sets,Year
Description
High Performance CE Certified Spray BoothITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions 8000 X 4000 X 3000mm (L X W X H) External dimensions 8110 X 5760 X 4010mm (L X W X H) Plenum 600mm high Basement 350mm high Entrance door 1 set, 3400 X 3250mm (W X H) Personnel door 2 sets, 800 X 2000mm (W X H) Walls 50mm rock wool panels Ceiling lighting (LED) 10 sets, each 6 X18W, 1,080W total Sidewall lighting (LED) 10 sets, each 2 X 18W, 360W total Brightness >1,500LUX Filters Pre-filter, high efficiency filter, floor-level filter, exhaust filter Air intake Direct-type turbine fan, 11KW explosion-proof motor Air exhaust Direct-type turbine fan, 11KW explosion-proof motor Air volume 35,000m3/h Empty loaded air speed +/-0.30m/s Air exchange times 6 times/min Maximum working temperature 80ºC Heat exchanger power 315KW Burner (Max. calorific value) RIELLO gas burner RS5D (two stage) Controls CE standard control box Rated power 30KW
4) Packaging & Loading

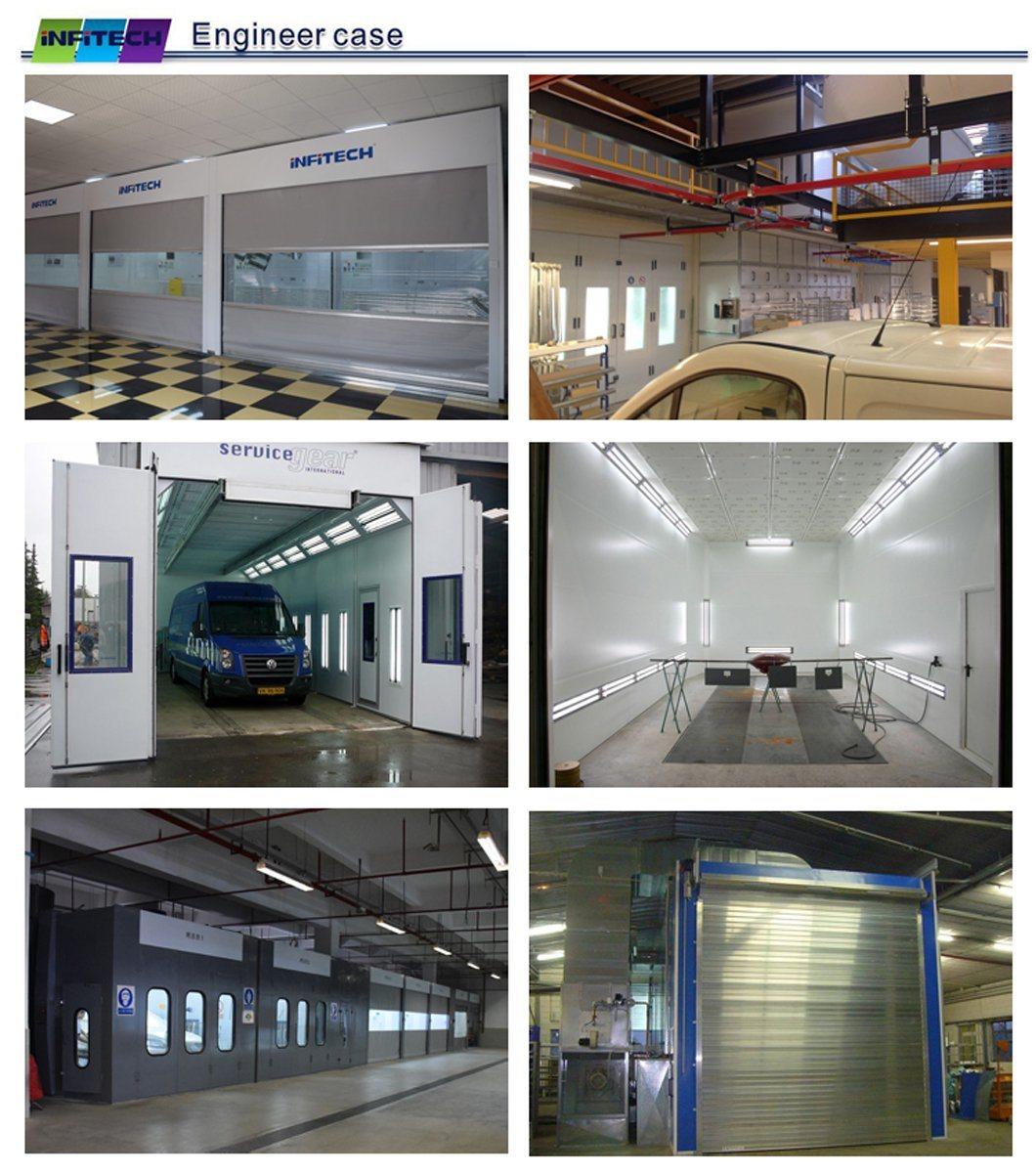

5) Engineering Cases
6) Company Profile
INFITECH is professional manufacturer of CE certified spray booth. We offer complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that is tailored to specific requirements, while maximizes profits for shop owners.
6) INFITECH at exhibition
Thank you for viewing!
