Environmental Spray Paint Room with Hot Water Heating System for Furniture
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Rear Semi Downdraft
- Heating Mode：Hot Water Heating System
Base Info
- Model NO.：IT-L8-W6
- Paint Mist Treatment：Dry-type
- Condition：New
- Plenum (Height)：600mm
- Extraction Area：9.6m2
- Walls：50mm Rock Wool Walls
- Brightness：>1,000lux
- Air Volume：28,000m3,H
- Empty Loaded Air Speed：0.16m,S
- Heats：Hot Water Heating System
- Maximum Working Temperature：80 Celsius
- Inverter：Schneider
- Noise：<78 dB
- Warranty：2 Years
- Stack Light：Yes
- Rated Power：15kw
- Heat Recuperator：Yes.
- Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
- Specification：8000 X 6000 X 2650mm (L X W X H)
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Sets,Year
Description
Paint Spray BoothITEMS SPECIFICATIONS Product IT-L8-W6 Carpentry Paint Booths Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 8000 X 6000 X 2650mm (L X W X H) External dimensions 8110 X 6720 X 4870mm (L X W X H) Airflow Rear semi downdraft Plenum (height) 600mm Extraction Through rear exhaust plenum chambers Extraction area 9.6m2 Entrance door 2000x2200mm (WxH), manual sliding door, 2 sets Service door 800x2000mm(WxH), 1 set Walls 50mm rock wool walls Ceiling lights (LED) 10 sets, each 6 X 18W, 1,080W total Sidewall lights (LED) 12 sets, each 2 X 18W, 432W total Brightness >1,000LUX Filters Bag filter, high efficiency ceiling filter, filter at exhaust plenum chambers, exhaust filter Intake/Exhaust unit Direct-type turbine fan,2x7.5KW, SIEMENS motor Air volume 28,000m3/h Empty loaded air speed 0.16m/s Heats Hot water heating system, power: 450KW Maximum working temperature 80ºC Heat recuperator Yes. Controls CE standard control box Inverter SCHNEIDER inverter Special item Machinery mounted at the overhead steel platform Rated power 15KW
Manual sliding door
Air handling unit and heating unit
The heat exchanger is made of copper pipe and aluminum sheet.
Heat exchanger power: 450KW
Air volume to be handled: 28,000m3/h
Intake air temperature: -10ºC
Outtake air temperature: 38ºC
Temperature of water at the hot-in port: 85ºC
Temperature of water at the hot-out port: 75ºC
Water flow: 38t/h
Heat recuperator
The heat recuperator is designed for spray booths used in cold areas. It makes full use of the heat of the waste gases to pre-heat the cold fresh air. This helps save energy consumption.
Cross flow heat exchanger core is made of antiseptic hydrophilic / epoxy coating aluminum foil and galvanized sheet cover. The air is forced to crossover through the heat exchanger core, two air streams (i.e. fresh air and exhaust air) never come into direct contact, avoid the transfer of any smell and moisture. It is usually being used for recovering energy at residential, commercial and wind-power industry ventilation systems.

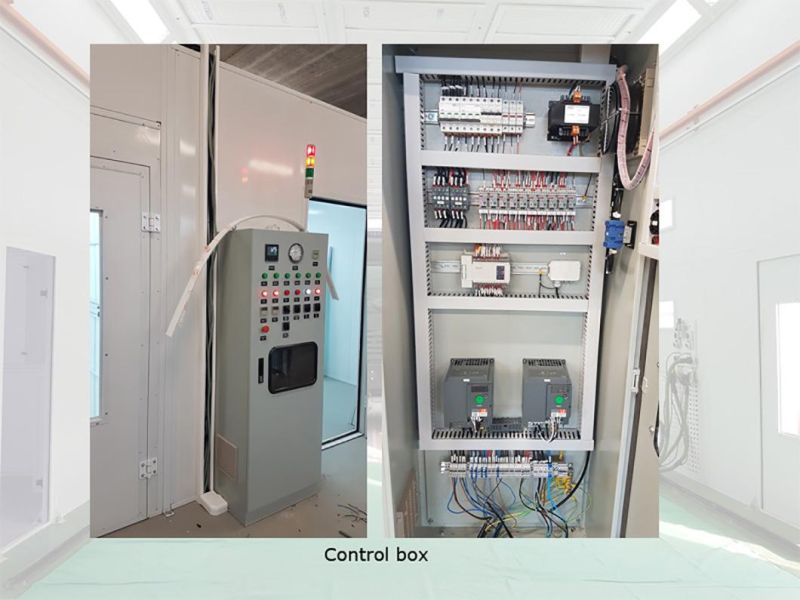

Control
FAQQ: Can you also supply prep station for carpentry?A: Certainly. Tell us your requirements. We will prepare and send you the corresponding solution for you to check.
Q: Is your paint booth CE compliance?A: Yes.
Q: I need to integrate water curtain together with paint booth.A: That's okay. Please send us the draft sketch of the equipment. We will design according to your requirements.
Q: Can you propose the right spray booth to me? I will send you the information of the products that I plan to paint.A: Sure. For the information of the products, please advise the maximum dimensions, weight, and paints that you will use etc. Meanwhile, also send us the workshop layout for our reference.
Q: Can you supply cross draft spray booth?A: Yes. It is available.
Q: Can you add hanging brackets to the paint booth?A: That's okay. But you need to send us the maximum loading capacity for our reference.
BS EN 60204: 2006 + A1: 2009
Manual sliding door
- Slide door with durable rubber for airtight seal
- With tempered observation window on all doors
Air handling unit and heating unit
| Intake motor | Exhaust motor | Intake / Exhaust fan | Air volume | Drying system |
| 7.5KW SIEMENS | 7.5KW SIEMENS | IT750 backward centrifugal fan, direct linkage | 28,000m³/h | Hot water heating |
The heat exchanger is made of copper pipe and aluminum sheet.
Heat exchanger power: 450KW
Air volume to be handled: 28,000m3/h
Intake air temperature: -10ºC
Outtake air temperature: 38ºC
Temperature of water at the hot-in port: 85ºC
Temperature of water at the hot-out port: 75ºC
Water flow: 38t/h
Heat recuperator
The heat recuperator is designed for spray booths used in cold areas. It makes full use of the heat of the waste gases to pre-heat the cold fresh air. This helps save energy consumption.
Cross flow heat exchanger core is made of antiseptic hydrophilic / epoxy coating aluminum foil and galvanized sheet cover. The air is forced to crossover through the heat exchanger core, two air streams (i.e. fresh air and exhaust air) never come into direct contact, avoid the transfer of any smell and moisture. It is usually being used for recovering energy at residential, commercial and wind-power industry ventilation systems.
Control
FAQQ: Can you also supply prep station for carpentry?A: Certainly. Tell us your requirements. We will prepare and send you the corresponding solution for you to check.
Q: Is your paint booth CE compliance?A: Yes.
Q: I need to integrate water curtain together with paint booth.A: That's okay. Please send us the draft sketch of the equipment. We will design according to your requirements.
Q: Can you propose the right spray booth to me? I will send you the information of the products that I plan to paint.A: Sure. For the information of the products, please advise the maximum dimensions, weight, and paints that you will use etc. Meanwhile, also send us the workshop layout for our reference.
Q: Can you supply cross draft spray booth?A: Yes. It is available.
Q: Can you add hanging brackets to the paint booth?A: That's okay. But you need to send us the maximum loading capacity for our reference.
