• Model NO.：IT-16-6A
• Paint Mist Treatment：Dry-type
• Condition：New
• Airflow：Downdraft
• Plenum (Height)：800mm
• Extraction：800mm
• Extraction Area：31.8m2
• Grids Carrying Capacity：900kg,Wheel
• Walls：60mm Rock Wool Walls
• Brightness：>1,000lux
• Air Volume：2*35,000m3,H
• Empty Loaded Air Speed：0.20m,S
• Heats：Riello Gas Burner RS5d *2
• Maximum Working：80 Celsius
• Controls：CE Standard
• Inverter：Schneider
• Stack Light：Yes
• Rated Power：50kw
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：8000 X 6000 X 5000mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. IT-16-6A Paint Mist Treatment Dry-type Condition New Airflow Downdraft Plenum (Height) 800mm Extraction 800mm Extraction Area 31.8m2 Grids Carrying Capacity 900kg/Wheel Walls 60mm Rock Wool Walls Brightness >1,000lux Air Volume 2*35,000m3/H Empty Loaded Air Speed 0.20m/S Heats Riello Gas Burner RS5d *2 Maximum Working 80 Celsius Controls CE Standard Inverter Schneider Stack Light Yes Rated Power 50kw Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 8000 X 6000 X 5000mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Auto Spray Paint Cabin with Manual Divider Door for Bus Refinishing
 1.FEATURES
The large equipment industrial spray booth is designed for painting and drying large equipment.
This model comes with downdraft airflow, with air extracted through pit in the ground.
The dimensions are 16000x6000x5000mm, with manual divider door to divide the booth into 2 work areas. Each area works separately, or 2 areas work together.
We understand that, for large equipment booth, every customer have different requests for the booths due to the difference in the business, products and workshops. We can custom make the booth to cater to your specific requirements in terms of dimensions and configurations.

2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT-16-6A Large Equipment Industrial Spray Booth
Design standard	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
Internal dimensions - AREA 1	8000 X 6000 X 5000mm (L X W X H)
Internal dimensions - AREA 2	8000 X 6000 X 5000mm (L X W X H)
External dimensions	16170 X 7810 X 5880mm (L X W X H)
Airflow	Downdraft
Plenum (height)	800mm
Extraction	800mm deep pit with grids
Extraction area	31.8m2 (based on 3 rows of grids)
Grids carrying capacity	900kg/wheel
Entrance door	4000x4900mm (WxH), manual entry door, 2 sets
Divider door in-between	4000x4900mm (WxH), manual divider door, 1 set
Service door	800x2000mm(WxH), 4 sets
Walls	60mm rock wool walls
Ceiling lights (LED)	20 sets, each 4 X 18W, 1,440W total
Sidewall lights (LED)	28 sets, each 4 X 18W, 2,016W total
Brightness	>1,000LUX
Filters	Bag filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2* 2x11KW, SIEMENS motor
Air volume	2*35,000m3/h
Empty loaded air speed	0.20m/s
Heats	2*315kw heat exchanger, RIELLO gas burner RS5D *2
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter
Option	Man lift; Touch screen control; Electric door
Rated power	50KW

3.DETAILS

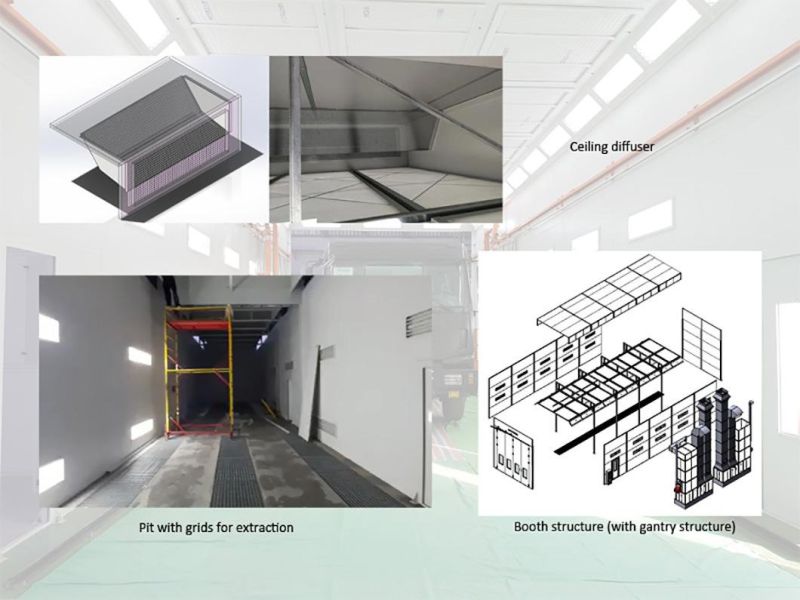

For large equipment spray booth, the cabin strength must be solid and rigid. Infitech large size booths come with gantry structure for reinforcing the booth strength. The reinforced structures are distributed evenly every 8 feet in the length of the booth.

The airflow is downdraft, with pit for extraction. Inside the top plenum, diffuser is equipped to balance the air distribution and reduce air turbulence as much as possible so as to deliver even airflow from the plenum to workspace, critical for quality paint finish.

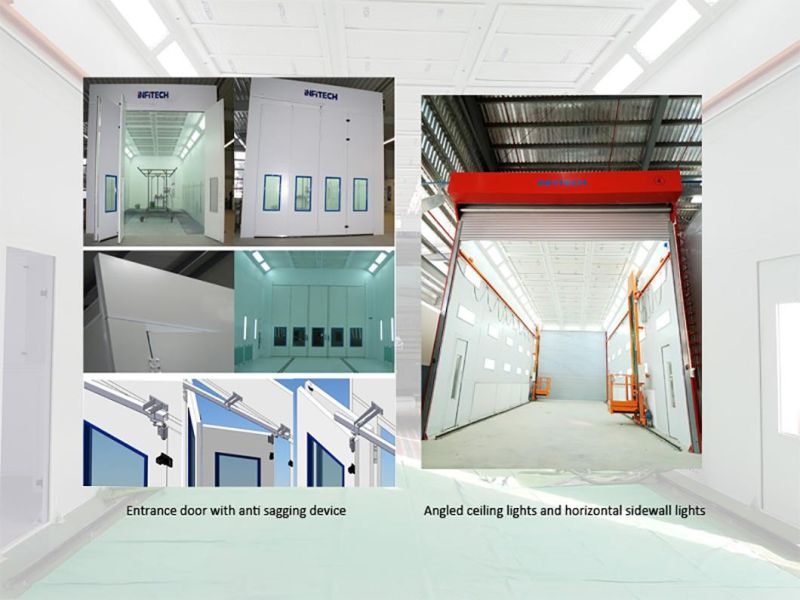

ENTRANCE DOOR

• Manual entry doors at both ends of the booth
• Manual door for the divider door in-between

LIGHTS

• Angled ceiling lights and horizontal sidewall lights, illumination>1,000lux

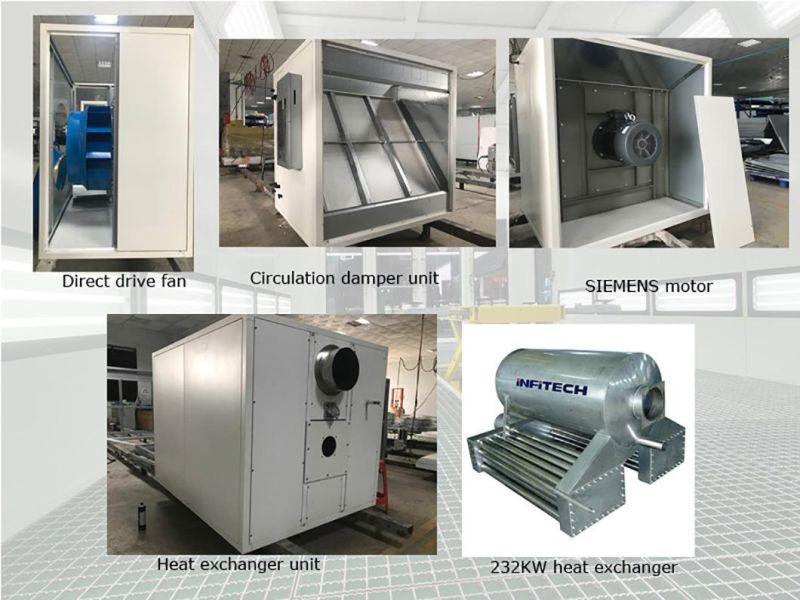

INTAKE AND EXHAUST UNIT

• 2 groups of 2*11kw intake and exhaust fan units, 2*35,000m³/h air volume
• 2 sets of 315kw heat exchanger and RS5D gas burner
• Cycle damper for spraying and baking phase

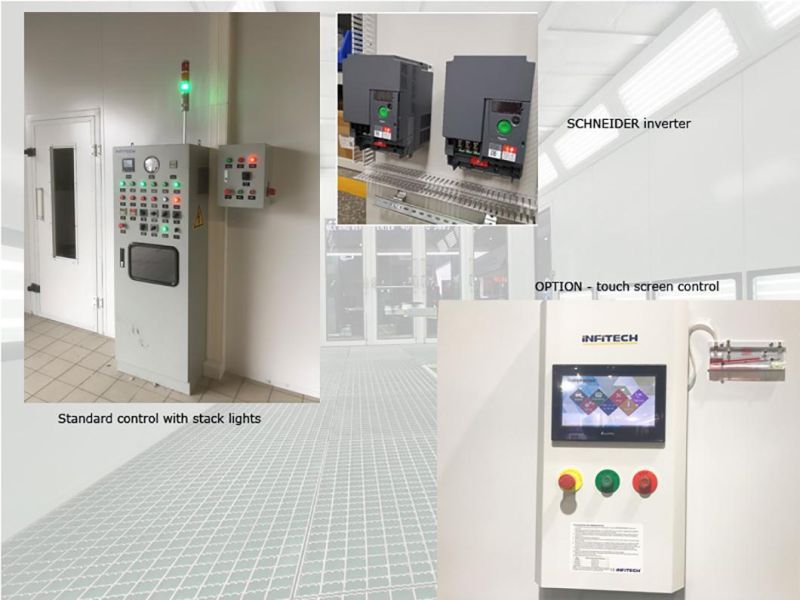

CONTROL

• CE compliance
• SCHNEIDER inverter control

UPGRADE

• Digital screen control panel

OPTIONS

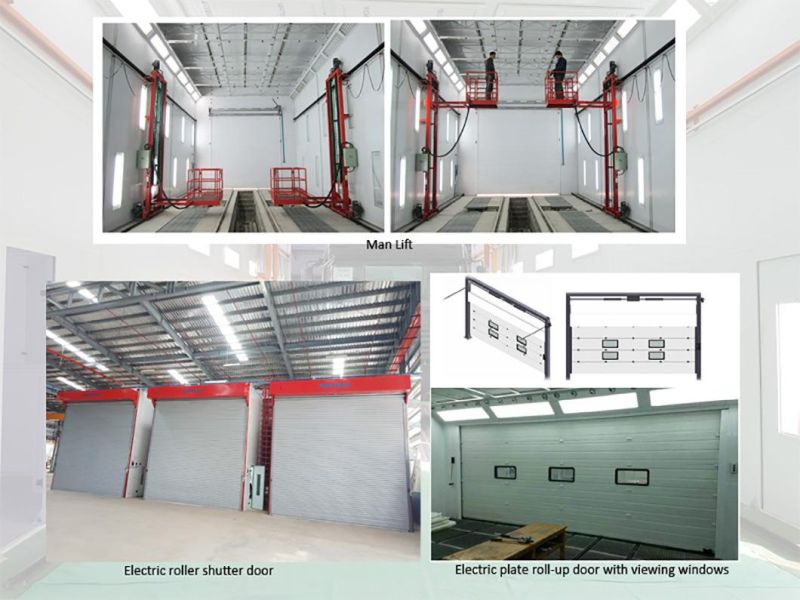

• Man lift - Make spray painting safer & faster

1. Improved working environments that are more productive
2. Improve coating thickness and consistence in hard to reach spots



• Electric entrance door

1. Electric roller shutter door
2. Electric plate roll-up door

FAQQ: Can I have vertical side wall panels?A: For large equipment spray booth, we do not recommend vertical side walls. As the booth is large in size, the structure must be stable. To achieve this, we use gantry structure to reinforce the booth strengths.
If the booth is with vertical side walls and without reinforced structure, it is not stable enough.
 Q: Can I have electric roller shutter door for the entry and exit door?A: That's okay.
 Q: I need to buy a heavy duty spray booth for my workshop. What airflow type do you suggest?A: To decide what airflow to choose, there are many factors to consider, among which, we think the most important one is meeting the finishing requirements of the products you manufacture. It is critical that you meet all production requirements.
For other factors, please contact one of our experts for further advice.
 Q: What about the warranty?A: 2 years.
 Q: How shall I pay?A: Usually, we accept 50% payment upon order confirmation, and balance before EXW.
