• Model NO.：BY-1
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Types：Car Painting Chamber
• Color：Orange
• Voltage：1X220V,3X380V,50Hz
• Purification：≥90%
• Noise Db (a)：≤75
• Air Capacity：21000m3,H
• Free Air Speed：≥0.24m,S
• Frequency of Air Change：294 Time ,H
• Safety：with Pressure Emergency Door
• Wararanty：12month
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：30set,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3000.000kg

Intake and Exhaust
system
 Inlet:1×5.5KW turbo fan, air capacity for each fan: 21000m3/h.Outlet: optional, 4m ducts, 1 pcs 900 bend.Heating systemBT18 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to
baking cycle. Max. heating productivity: 180000kcal/h, max temperature: 80°C, 4pcs chimney, 1
pcs bend.Purification system Pre-filter, ceiling filter, fibreglass filter.RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power
supply switch, emergency stop, all motors is normal start.Total power7.5KW (Power supply 1×220V, 3×380V, 50HZ)

Parts details:






What customers saying:

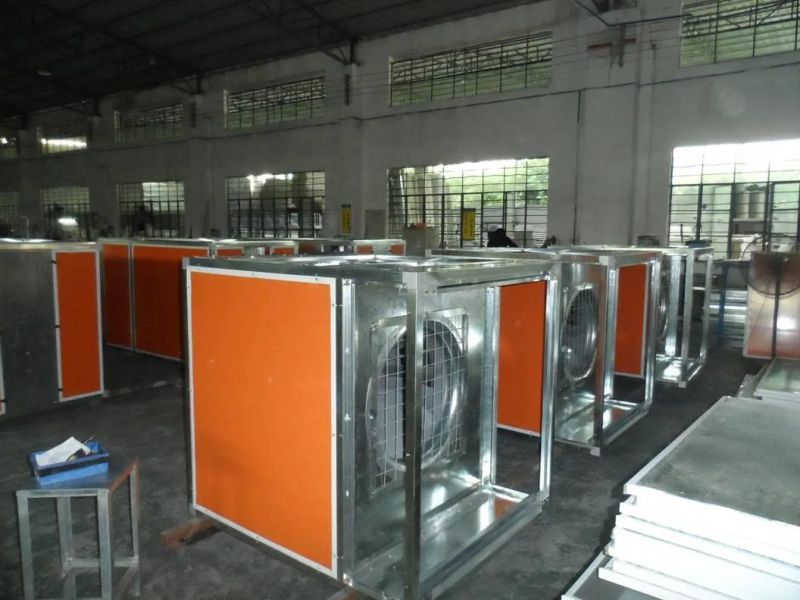

Factory show:
